PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
EAU00694
Adjusting the clutch lever free
play
The clutch lever free play should mea-
sure 10–15 mm as shown. Periodically
check the clutch lever free play and, if
necessary, adjust it as follows.
1. Loosen the locknut at the clutch
lever.
2. To increase the clutch lever free
play, turn the adjusting bolt in di-
rection
a
. To decrease the clutch
lever free play, turn the adjusting
bolt in direction
b
.
3. If the specified clutch lever free
play could be obtained as de-
scribed above, tighten the locknut
and skip the rest of the procedure,
otherwise proceed as follows.
4. Fully turn the adjusting bolt at the
clutch lever in direction
a
to loos-
en the clutch cable.
5. Loosen the locknut at the crank-
case.
6. To increase the clutch lever free
play, turn the adjusting nut in di-
rection
a
. To decrease the clutch
lever free play, turn the adjusting
nut in direction
b
.
7. Tighten the locknut at the clutch
lever and the crankcase.

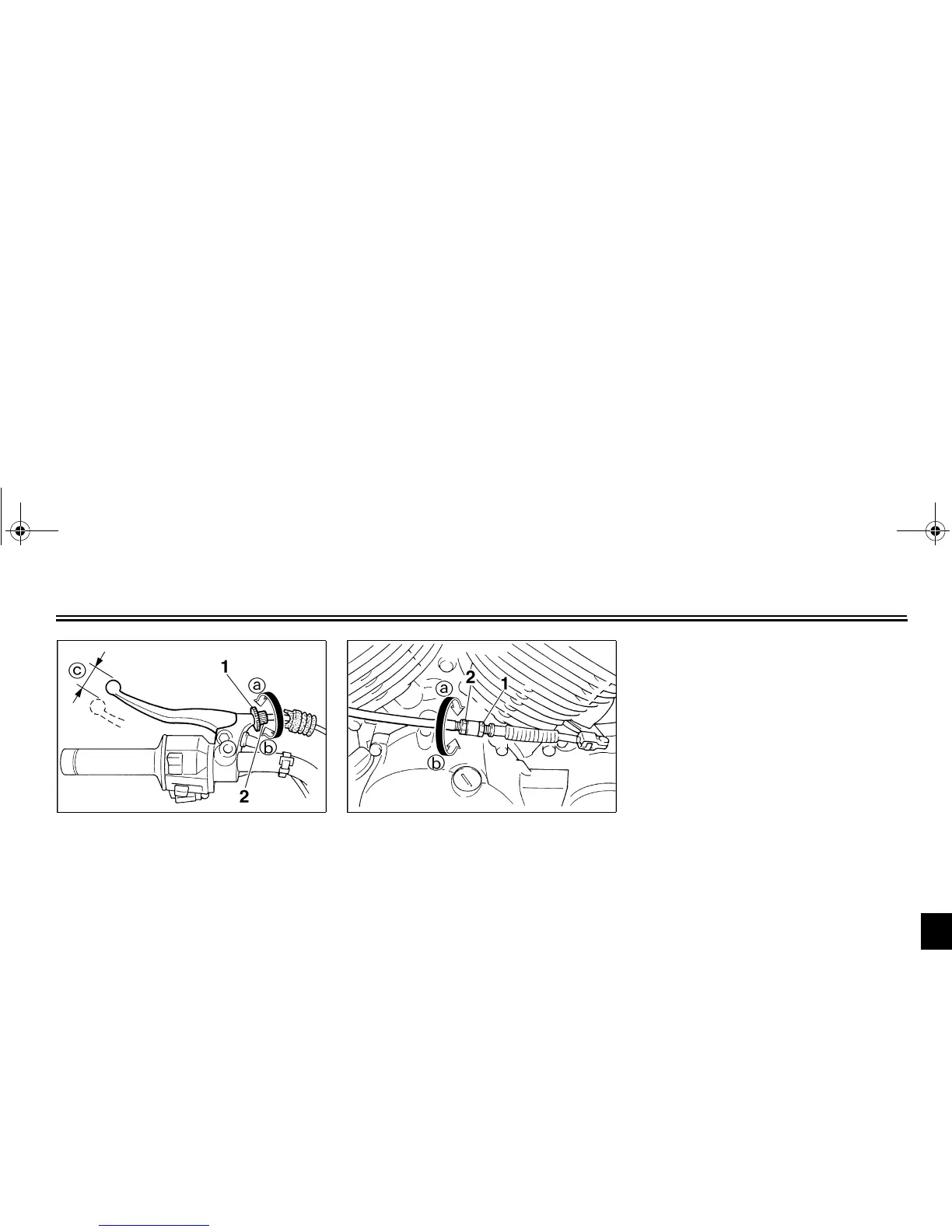

1. Locknut
2. Clutch lever free play adjusting bolt
c. Clutch lever free play
1. Locknut
2. Clutch lever free play adjusting nut
E_3bt.book Page 18 Thursday, September 7, 2000 10:01 AM

Yamaha Virago XV535 Specifications

General

Displacement	535 cc
Compression ratio	9.0:1
Fuel system	Carburetor
Ignition system	CDI
Transmission	5-speed
Final drive	Shaft
Front suspension	Telescopic fork
Rear suspension	Dual shocks
Front brakes	Single disc
Rear brakes	Drum
Front tire	3.00-19
Rear tire	140/90-15
Engine type	Air-cooled, 4-stroke, V-twin
Bore x Stroke	76 mm x 59 mm
Fuel capacity	13.5 liters
Wheelbase	1, 520 mm
