PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU00713
Adjusting the rear brake light
switch
The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
Turn the adjusting nut while holding the
rear brake light switch in place. To
make the brake light come on earlier,
turn the adjusting nut in direction
a
. To
make the brake light come on later,
turn the adjusting nut in direction
b
.
EAU00720
Checking the front brake pads
and rear brake shoes
The front brake pads and the rear
brake shoes must be checked for wear
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU01119
Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wear
indicators have almost disappeared,
have a Yamaha dealer replace the
brake pads as a set.

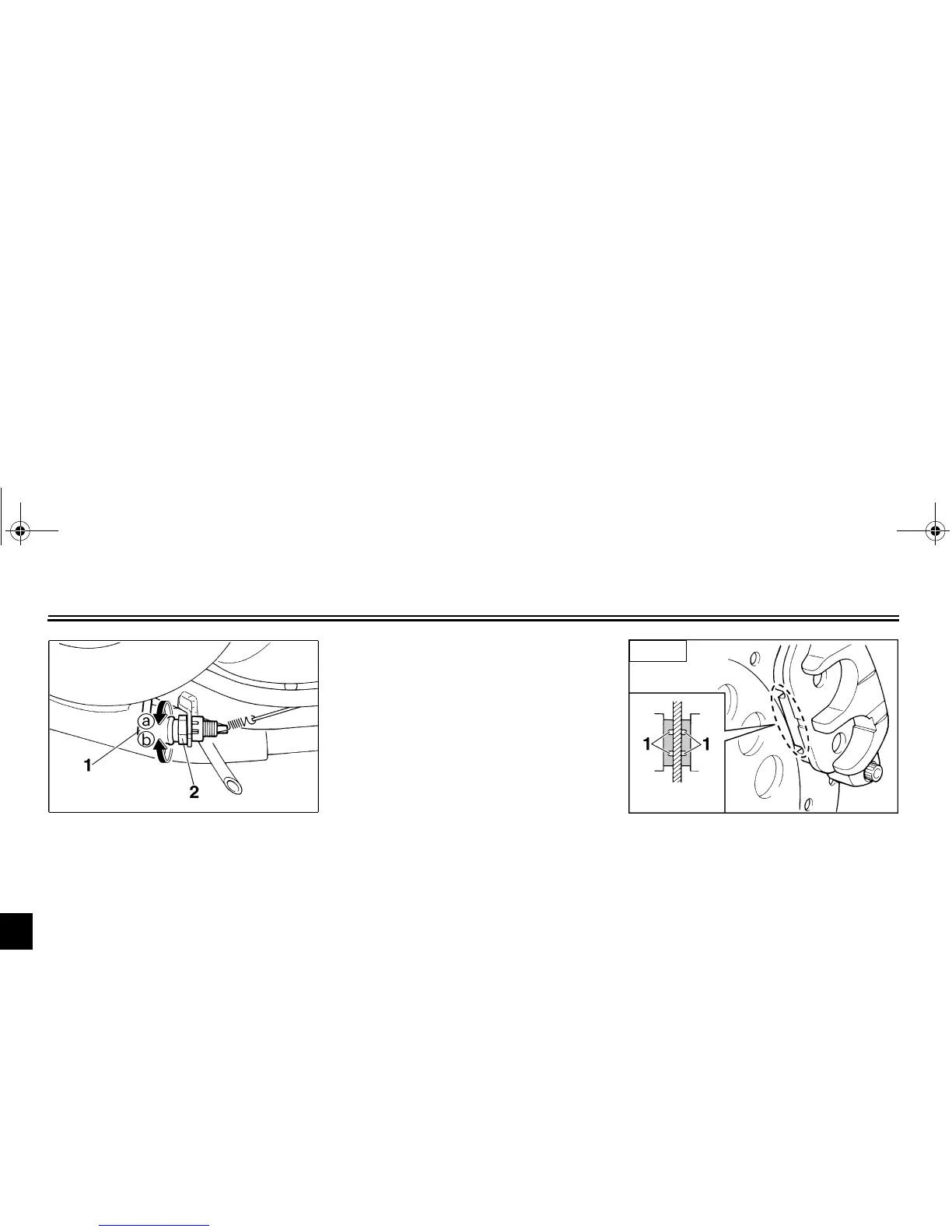

1. Rear brake light switch
2. Rear brake light switch adjusting nut
1. Front brake pad wear indicator groove (× 2)
