Yamaha Virago XV535 User Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU00157
Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU00158
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU00162
Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.

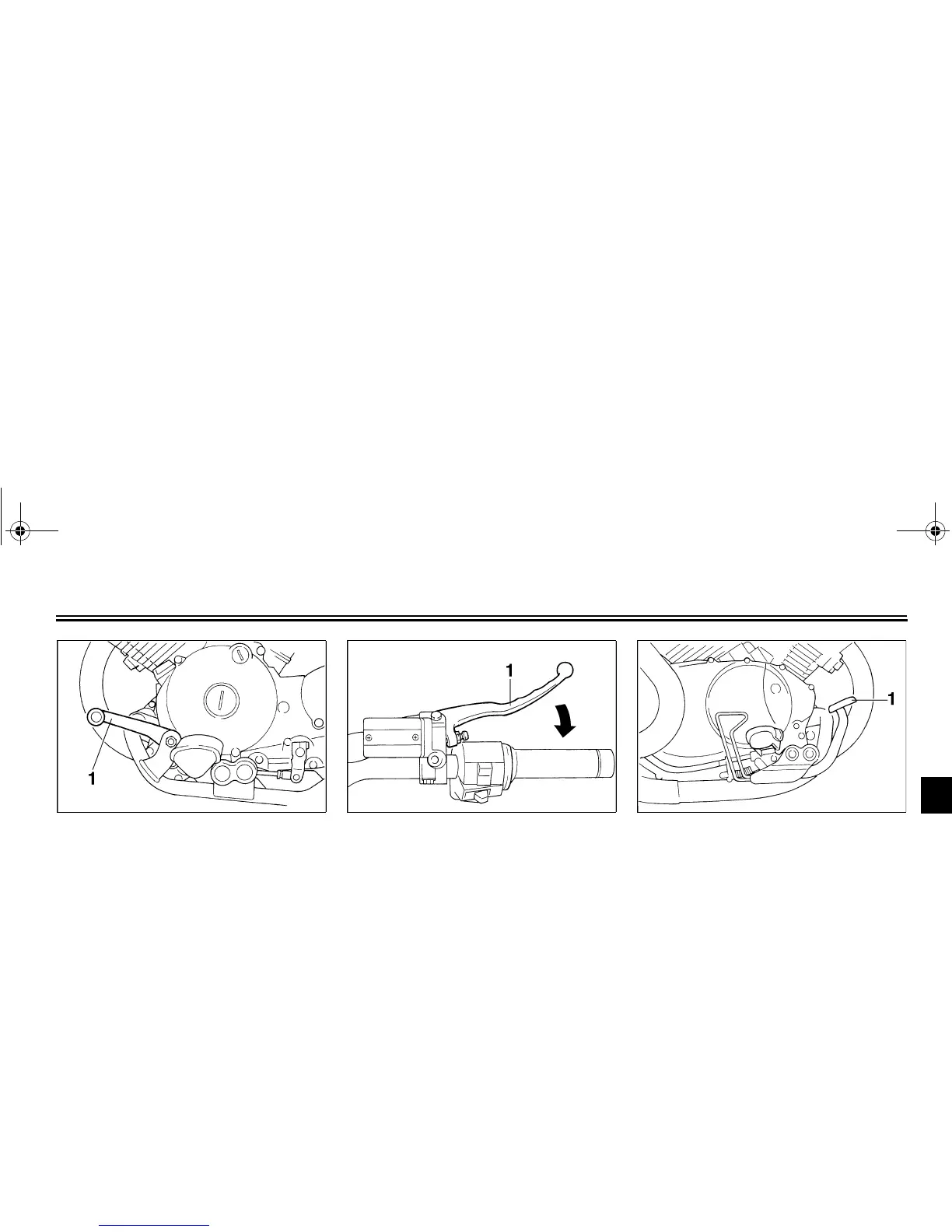

1. Shift pedal 1. Brake lever 1. Brake pedal
E_3bt.book Page 4 Thursday, September 7, 2000 10:01 AM

Yamaha Virago XV535 Specifications

General

Displacement	535 cc
Compression ratio	9.0:1
Fuel system	Carburetor
Ignition system	CDI
Transmission	5-speed
Final drive	Shaft
Front suspension	Telescopic fork
Rear suspension	Dual shocks
Front brakes	Single disc
Rear brakes	Drum
Front tire	3.00-19
Rear tire	140/90-15
Engine type	Air-cooled, 4-stroke, V-twin
Bore x Stroke	76 mm x 59 mm
Fuel capacity	13.5 liters
Wheelbase	1, 520 mm
