INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU00138
Engine stop switch
Set this switch to “ ” to stop the en-
gine in case of an emergency, such as
when the motorcycle overturns or
when the throttle cable is stuck.
EAU00134
Light switch
Set this switch to “ ” to turn on the
auxiliary light, meter lighting and tail-
light. Set the switch to “ ” to turn on
the headlight also.
EAU00143
Start switch “ ”
Push this switch to crank the engine
with the starter.
EC000005
CAUTION:
@
See page 5-1 for starting instruc-
tions prior to starting the engine.
@
EAU00149
Fuel reserve switch “FUEL”
During normal operation, this switch
should be kept in the “ON” position. If
you run out of fuel while riding, set the
switch to “RES”, refuel as soon as pos-
sible, and then set the switch back to
“ON”.
NOTE:
@
After switching to “RES”, approximately
2.5 L of fuel remain in the fuel tank.
@
EAU00152
Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the ignition
circuit cut-off system. (See page 3-10
for an explanation of the ignition circuit
cut-off system.)

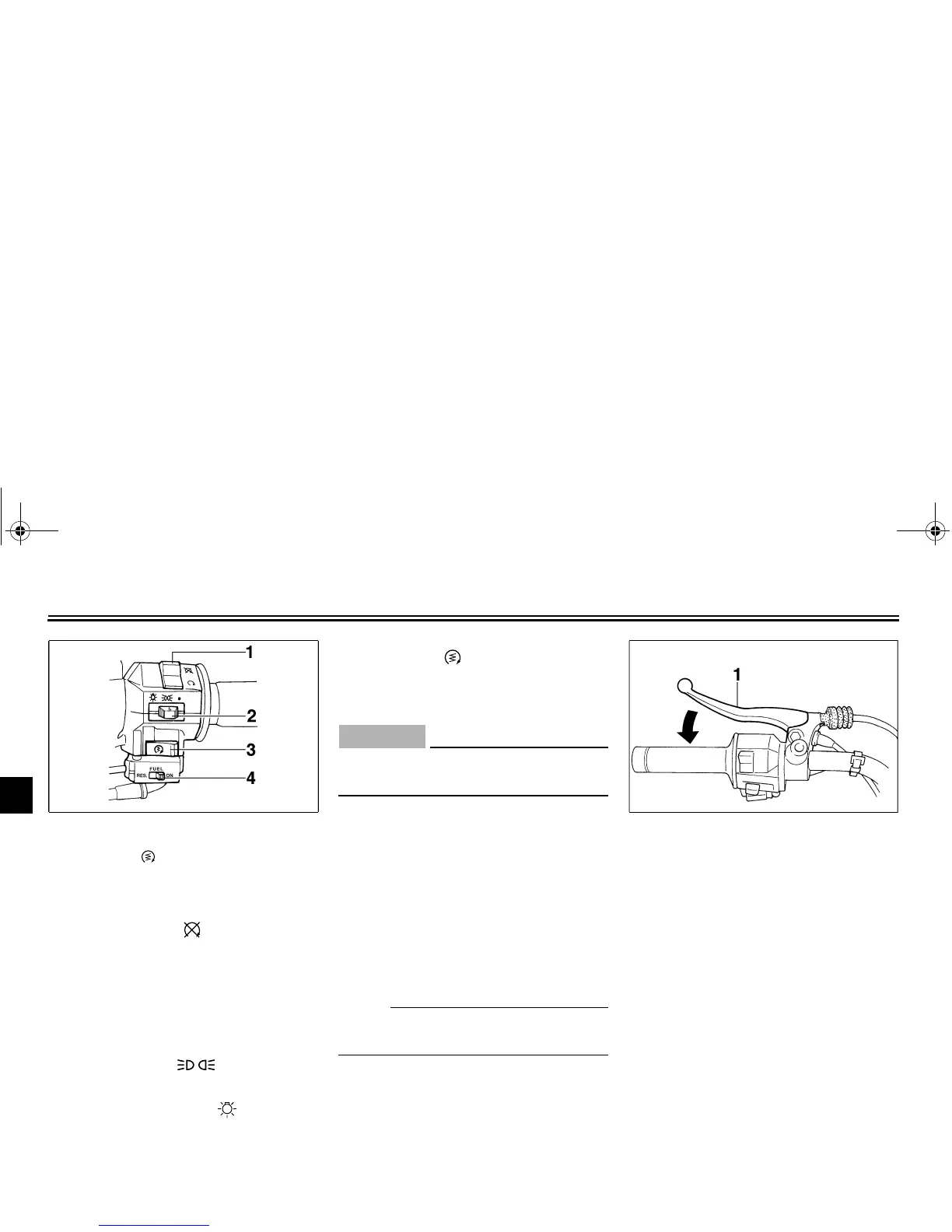

1. Engine stop switch
2. Light switch
3. Start switch “ ”
4. Fuel reserve switch “FUEL”
1. Clutch lever
