5-22
Outboard Rigging Guide - 2001 Water Pressure/Temperature
Sender Installation
Water Pressure/Temperature
Sender Installation

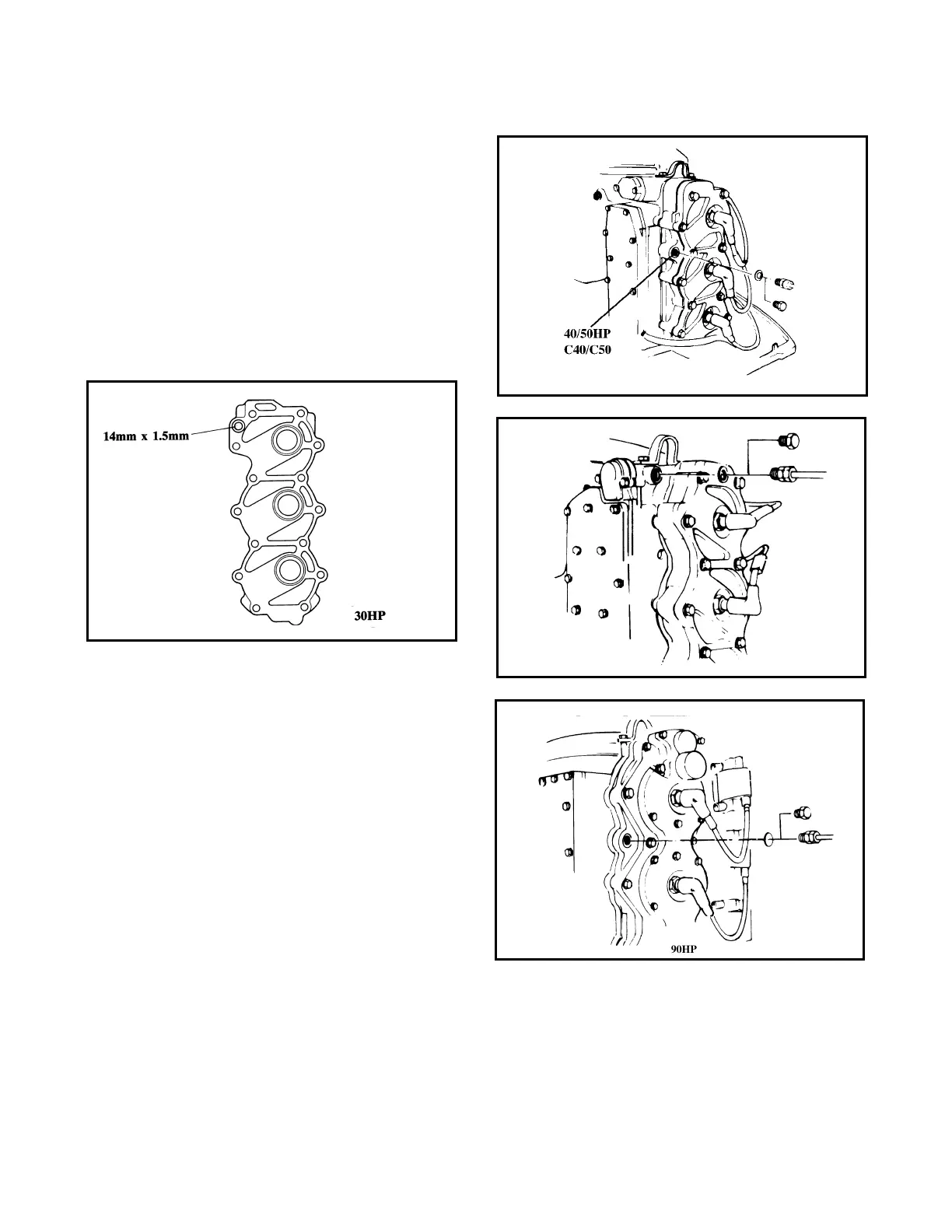

1. Remove the screw plug from the cylinder
head and install the temperature sender (on
water pressure sender). Be sure not to over-
tighten the sender. The location of the plug
for each model is shown below:
NOTE: Aftermarket water pressure gauge
adapter (P/N: MAR-WPRES-AD-TR)
NOTE: To install the sender on the 30hp cylinder
head cover, drill a 11.5mm (0.453 in) hole, and
cut threads of 14mm x 1.5mm.
C60, C70, 70HP
To Next Page
