2-36
Outboard Rigging Guide - 2001 Dual Cable Steering Bracket Kit Installation
DUAL CABLE STEERING BRACKET KIT
INSTALLATION (ABA-DUALS-TE-ER)
Please completely read and understand these
installation instructions prior to installation to
avoid damage to the outboard motor, boat or
accessory.
Kit Includes:
1 Steering Cable Mounting Bracket
1 Steering Cable Support Tube
2 Adjustment Nut
2 Locking Tab Washer
1 Bushing
1 Seal
1 Cable Connector
2 Self-locking Nut, 3/8”
2 Flat Washer, 3/8”
4 Bolt 6 x 15mm

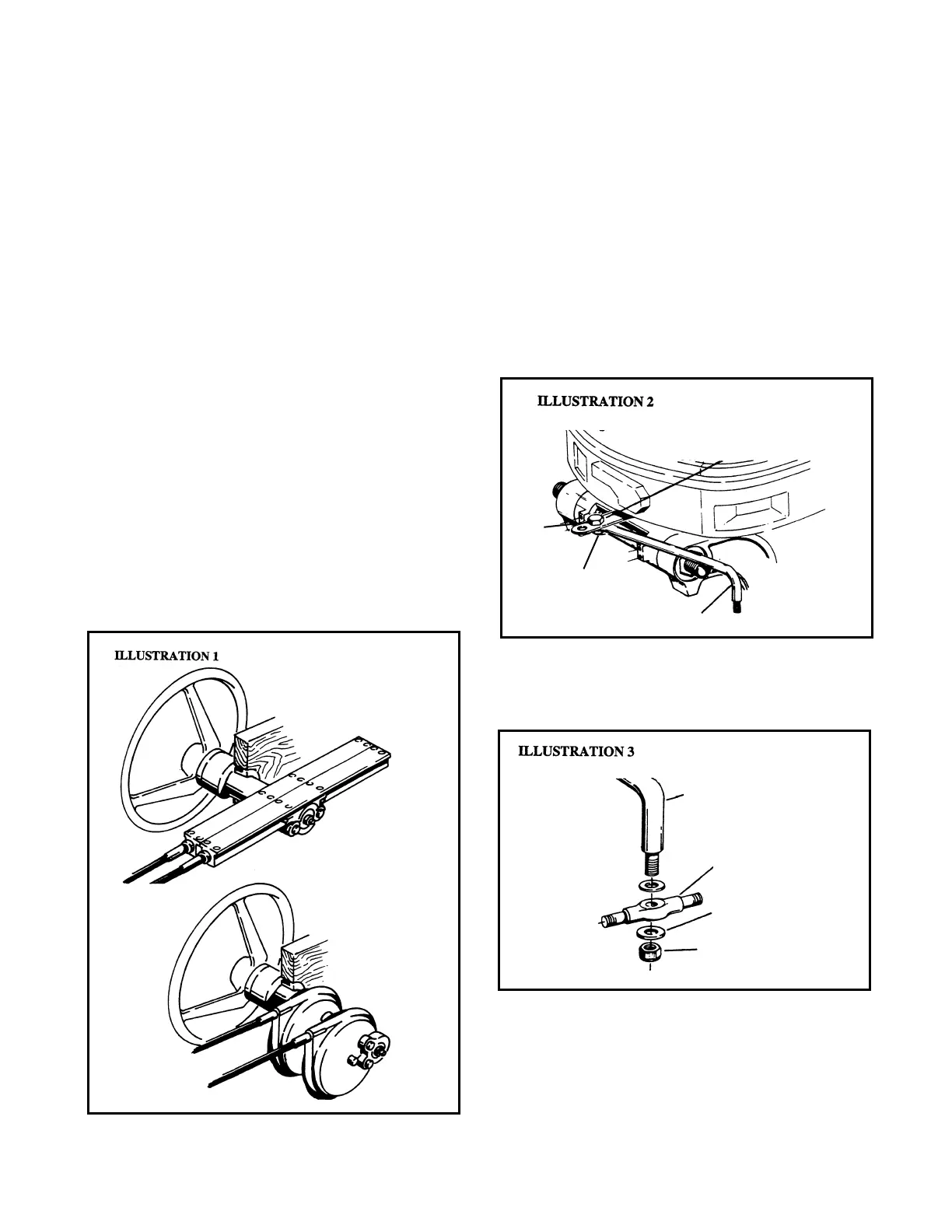

NOTE: Both gear racks or rotary steering heads
must be installed so both steering cables will be
routed together on the same side of the boat and
will push-pull together. (See Illus. 1)
NOTE: This procedure is best done prior to bolt-
ing motor to the transom.
Steering Arm Installation
1. Install the steering arm to the motor tiller arm
using the inner (rearmost) bolt hole and
torque to specification. Be sure to use the
lock nut as shown in the Yamaha Rigging
Specs. (See Illus. 2 below) (See pg 7-26~7-
27 for assembly instructions.)
2. Assemble the cable connector onto the steer-
ing arm. Do not tighten at this time. (See
Illus. 3)
*Flat washers and lock nut come with the steering
link rod.
NUT
BOLT HEAD
STEERING LINK ROD
CABLE CONNECTOR
FLAT WASHERS*
LOCK NUT*
PIVOT BOLT AND BALL
JOINT CONNECTION
STEERING LINK ROD
