2.3.2 Installation Standards
2-10
2.3.2 Installation Standards
Observe the standards for mounting SERVOPACKs in control panels, including those
for the mounting SERVOPACKs side by side in one control panel as shown in the
following illustration.
• SERVOPACK Mounting Orientation
Mount the SERVOPACK vertically to the wall, with the front panel facing out.
• Cooling
Refer to the following diagram and leave sufficient space for cooling by fans and nat-
ural convection.

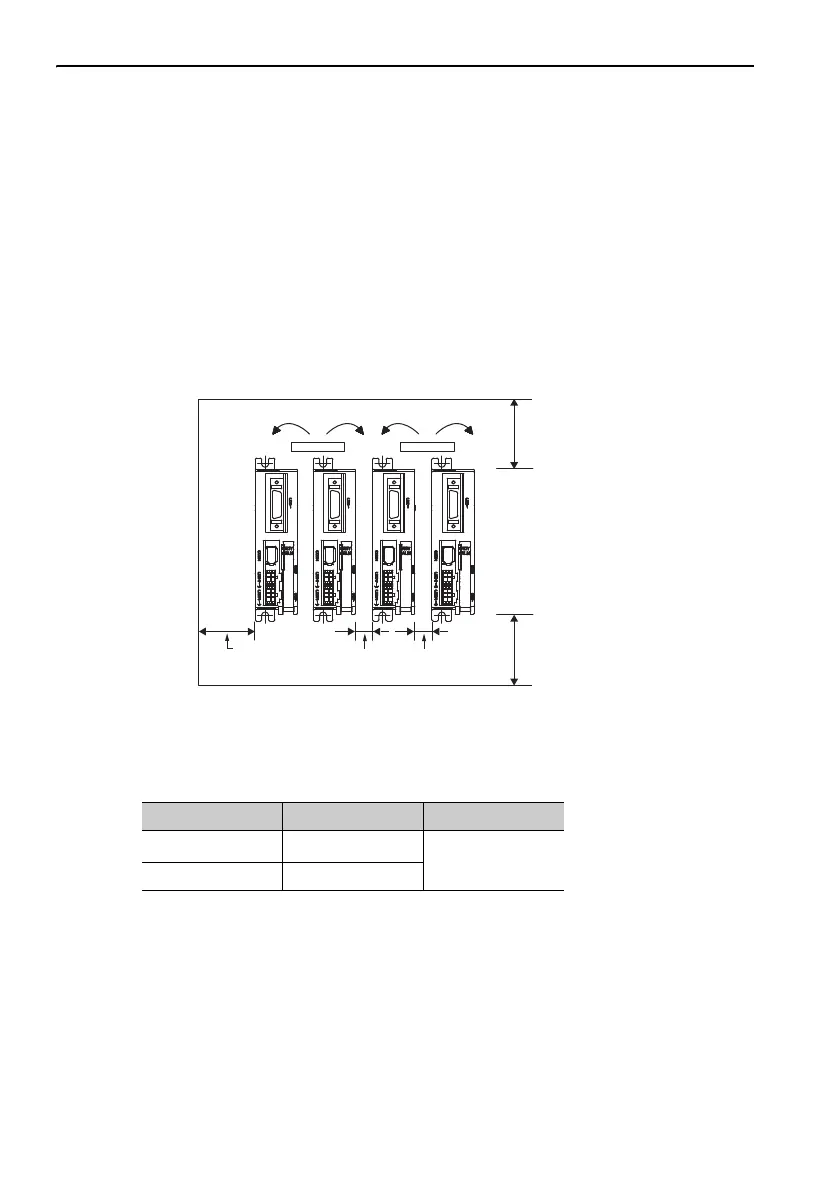

• Mounting SERVOPACKs Side by Side in a Control Panel
∗ Mounting differs with cooling method.
Leave sufficient space on each side and at the top and the bottom of each SERVO-
PACK. Space between SERVOPACKs differs with the cooling method as shown in
the following table.
∗ When the space between SERVOPACKs is less than 10 mm, select fans that will circulate air
at a wind velocity of 0.2 m/s or more when a wind gauge is installed 10 mm away from the
bottom of the SERVOPACK.
• Inside the Control Panel
The conditions inside the control panel should be the same as the environmental con-
ditions of the SERVOPACK. Refer to 2.1.2 SERVOPACK Installation Environment.
30 mm
or more
40 mm or more
40 mm or more
10 mm
or more*
10 mm
or more*
FanFan
Cooling Method Per Side Top and Bottom
Fan
*
1 mm or more
40 mm or more
Natural Convection 10 mm or more
