YASKAWA E-V Series User Manual

2 Installation
2.4.2 Other Precautions
2-12
2.4.2 Other Precautions
 Recommended Noise Filter
For more information on recommended noise filters, refer to Σ -V Series Product Cat-
alog. (Catalog No.: KAEP S800000 42)
 Fixing the Cable
Fix and ground the cable shield using a piece of conductive metal.

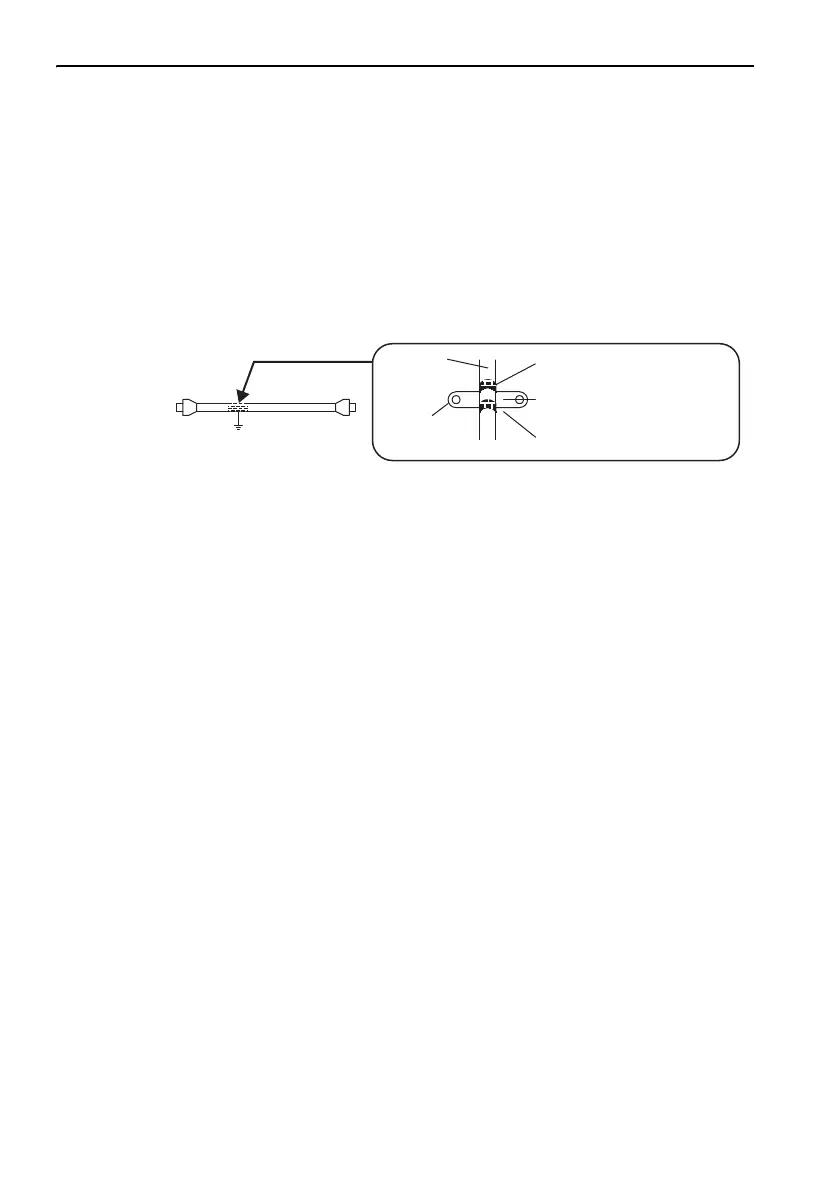

• Example of Cable Clamp
 Shield Box
A shield box, which is a closed metallic enclosure, is effective as reinforced shielding
against electromagnetic interference (EMI) from SERVOPACKs. The structure of the
box should allow the main body, door, and cooling unit to be attached to the ground.
The box opening should be as small as possible.
<Note>
Do not connect the digital operator and the analog monitor cable to the SERVOPACK
during operations. Connect them only when the machinery is stopped during mainte-
nance.
Host controller side
Ground plate
Cable
Cable
clamp
Shield (cable sheath stripped)
Fix and ground the cable shield
using a piece of conductive metal.
Remove paint on mounting surface.
