Yealink MVC860 Deployment Guide

| Introduction | 15

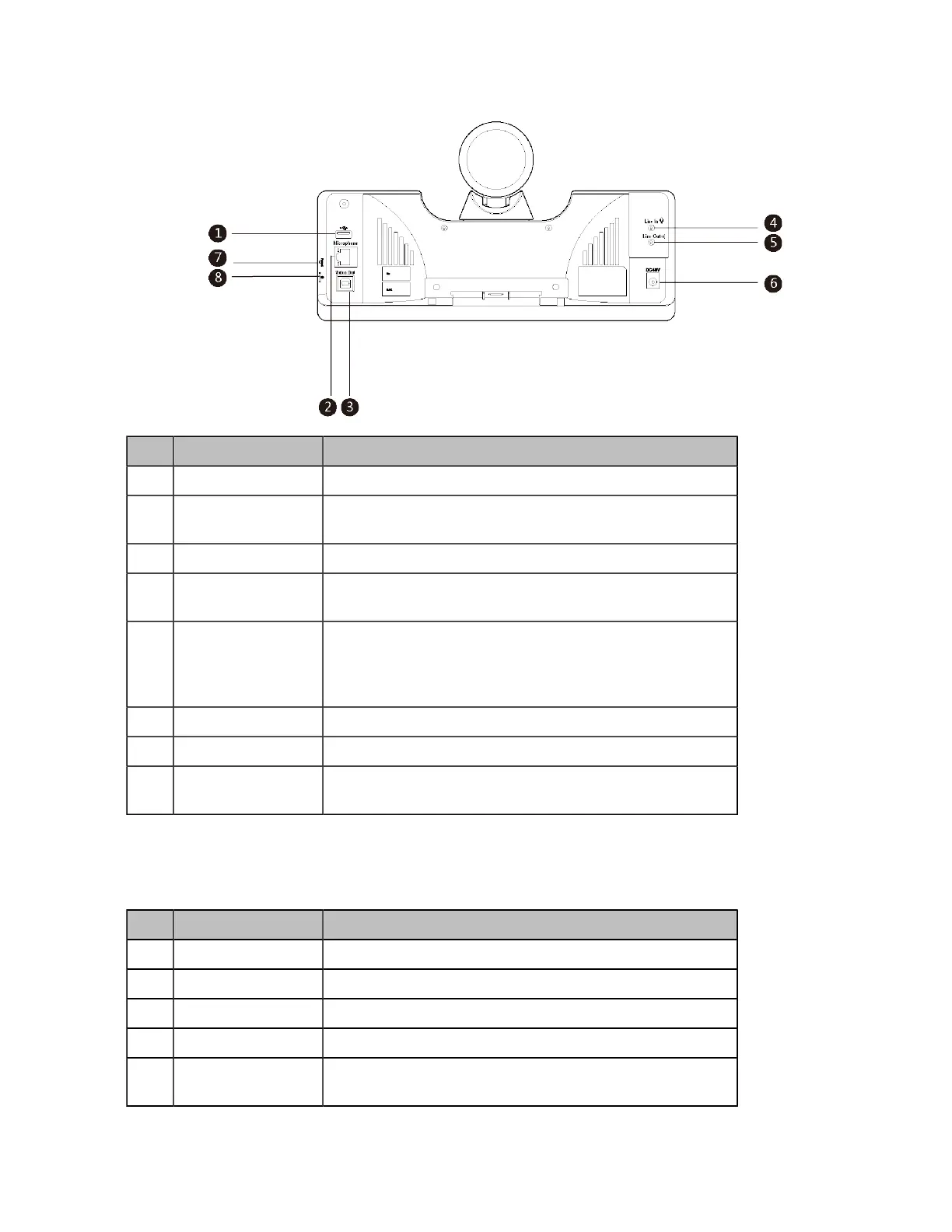

UVC50
Port Name Description
①
USB port (optional) Inserts DD10 to connect to CPW90.
②
Microphone port Connects to VCM34/VCM38 or connects to audio devices
via PoE switch. (cascaded star)
③
Video Out port Connects to a PC as a video output.
④
Line In port Connects to an audio input device using a 3.5mm audio
cable.
⑤
Line Out port
Connects to an audio output device using a 3.5mm audio
cable.
⑥
DC48V port Connects to the power source via a power adapter.
⑦
Reset Key Resets to factory defaults.
⑧
Security Slot Creates a secure connection to the camera with a
universal security cable to lock the camera down.
UVC40
Port Name Description
①
Reset Key Resets to factory defaults.
②
DC48V port Connects to the power source via a power adapter.
③
Video Out port Connects to a PC as a video output.
④
Microphone port Connects to VCM34. It is not available in current version.
⑤
USB port (optional) Inserts DD10 to connect to CPW90. It is not available in
current version.

Yealink MVC860 Specifications

General

Bluetooth	Yes
Pan range	-100 - 100 °
Product type	Group video conferencing system
Product color	Black, Grey
Internal memory	8 MB
Tilt angle range	-90 - 40 °
Number of cameras	2
Number of persons	- person(s)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Megapixel	8 MP
Camera type	Dual camera
Sensor type	-
Digital zoom	1.7 x
Optical zoom	12 x
Combined zoom	20.4 x
Image sensor size	- \
AC input voltage	100 - 240 V
DC output current	0.7 A
DC output voltage	48 V
Power source type	AC
Processor family	Intel® Core™ i5
Operating system installed	Windows 10 IoT Enterprise
Storage media type	SSD
Total storage capacity	128 GB
Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 800 pixels
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	6880 g
Camera weight	3270 g
Package depth	275 mm
Package width	420 mm
Package height	387 mm
Package weight	7540 g
Camera dimensions (WxDxH)	210 x 155.6 x 157.6 mm
