| Introduction | 18
Port Name/Indicator Name Description
LED Indicator Indicates the working status of MShare.
Mini DP port Connects to PC via Mini-DP cable for content sharing.
HDMI port Connects to PC via HDMI cable for content sharing.
USB port Connects to WPP20 to pair WPP20 with MShare.
Wi-Fi AP LED Indicator Indicates the status of the connection between MShare
and WPP20.
USB port Connects to the Mini-PC.

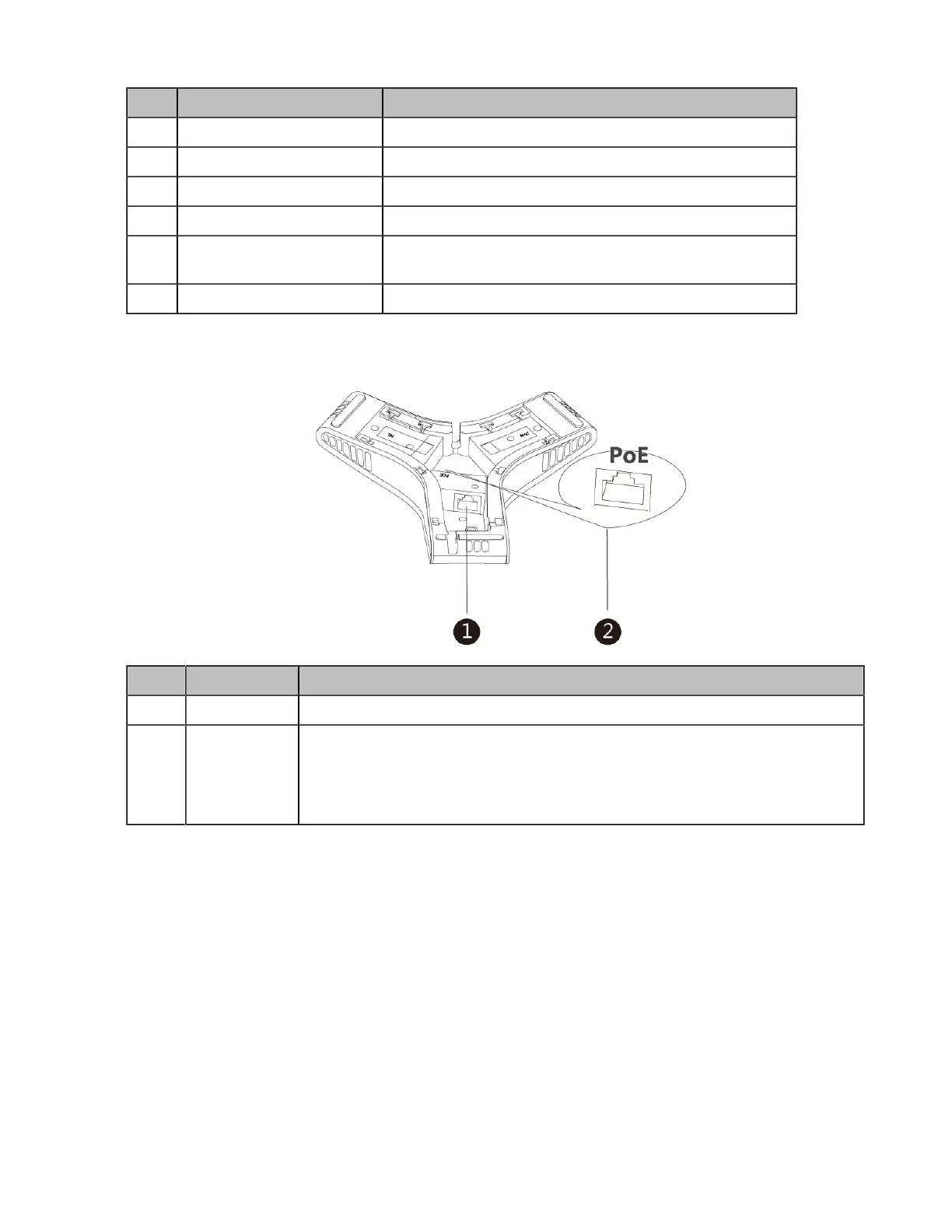

VCM34
Name Description
1 RJ45 Port Connects to the PoE port of another VCM34 to cascade more VCM34 units.
2 PoE Port
Connects to UVC86/UVC80/UVC50/Camera-Hub.
Connects to the PoE port of another VCM34/VCM38 to cascade more
VCM34/VCM38 units.
Connects to the RJ45 port of another VCM34 to cascade more VCM34 units.
VCM38
VCM38 is a newly designed ceiling microphone with 8 built-in microphones, which can realize 360° voice
pickup range. VCM38 delivers excellent voice quality with high-quality echo cancellation and Yealink noise
proof technology. With Beamforming technology, VCM38 can automatically locate and optimize voice pick
up for the person speaking.
Front Panel of VCM38
