Yealink MVC860 Deployment Guide

| Introduction | 20
Port Name Description
③
Audio port
• Connects to the UVC84/UVC80/UVC50.
• Connects to the PoE switch to cascade VCM34/VCM38.

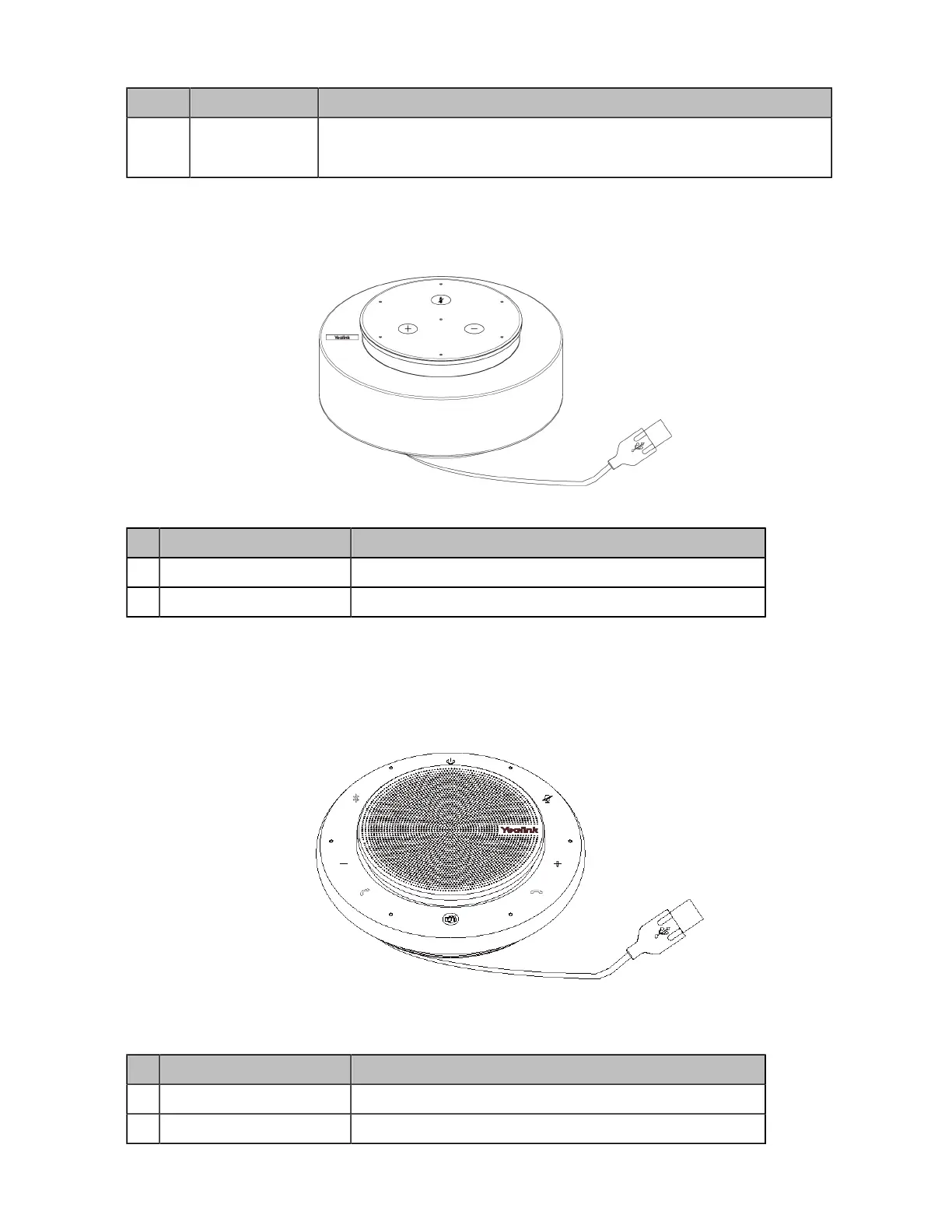

MSpeech
The MSpeech is directly connected to the MCore/MTouch
Ⅱ
via USB cable.
The following buttons are available during Skype for Business and Teams meetings:
Button Name Description
①
Volume Up/Down Key Adjusts the volume of the MSpeech.
②
Mute Key During a call, tap the mute button to mute or unmute.
CP900
The CP900 is directly connected to the MCore/MTouch
Ⅱ
via USB cable.
The following buttons are available during Skype for Business and Teams meetings:
Button Name Description
①
Power Key Tap it for 3 seconds to power on or power off the CP900.
②
Volume Up/Down Key Adjusts the volume of the CP900.

Yealink MVC860 Specifications

General

Bluetooth	Yes
Pan range	-100 - 100 °
Product type	Group video conferencing system
Product color	Black, Grey
Internal memory	8 MB
Tilt angle range	-90 - 40 °
Number of cameras	2
Number of persons	- person(s)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Megapixel	8 MP
Camera type	Dual camera
Sensor type	-
Digital zoom	1.7 x
Optical zoom	12 x
Combined zoom	20.4 x
Image sensor size	- \
AC input voltage	100 - 240 V
DC output current	0.7 A
DC output voltage	48 V
Power source type	AC
Processor family	Intel® Core™ i5
Operating system installed	Windows 10 IoT Enterprise
Storage media type	SSD
Total storage capacity	128 GB
Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 800 pixels
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	6880 g
Camera weight	3270 g
Package depth	275 mm
Package width	420 mm
Package height	387 mm
Package weight	7540 g
Camera dimensions (WxDxH)	210 x 155.6 x 157.6 mm
