York YCAS User Manual

103
YORK INTERNATIONAL
FORM 201.19-NM6 (804)
7
A FBDCE
G LHJIK
A HDBC EFG
I PLJK MNO
Aluminium Fin and Black Fin Coils

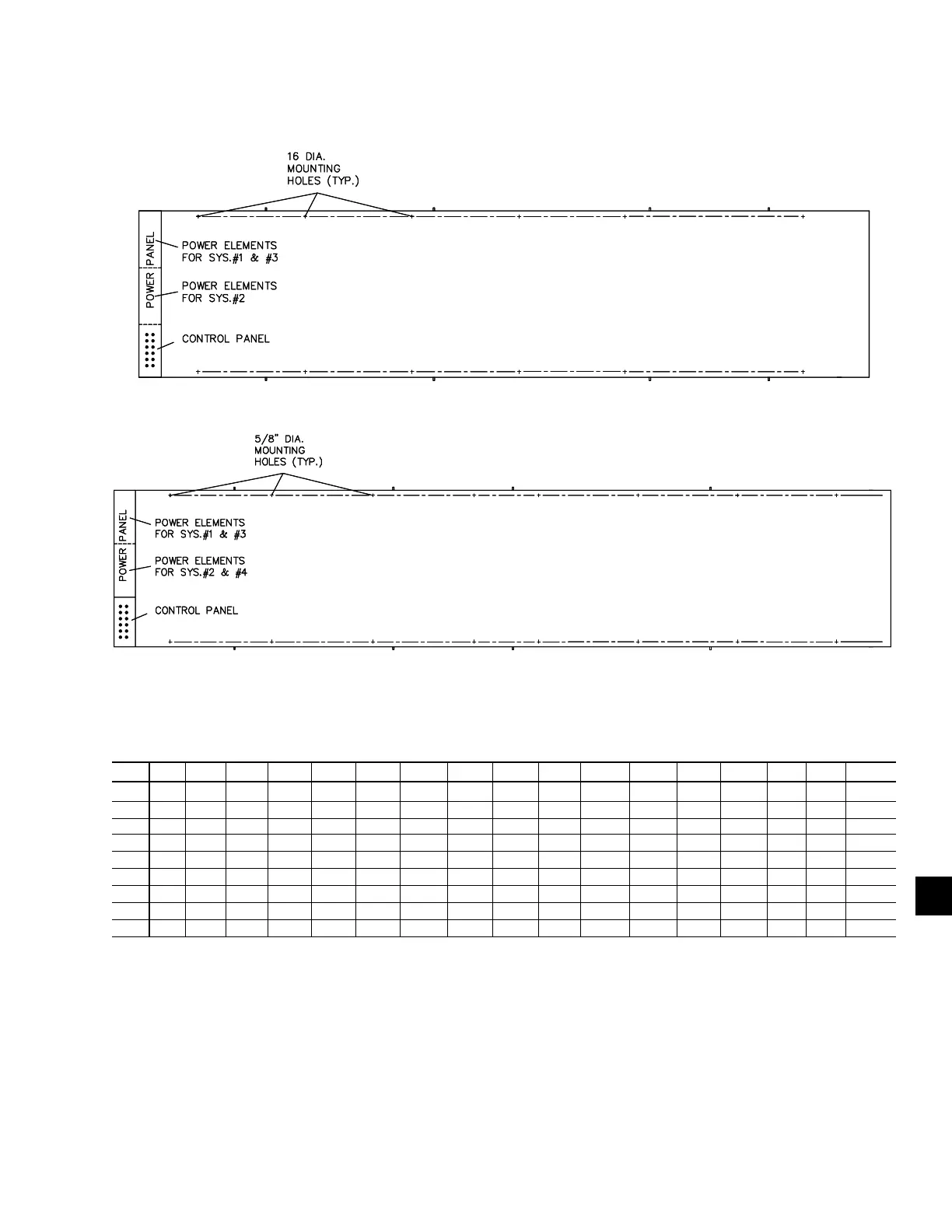

WEIGHT DISTRIBUTION AND ISOLATOR MOUNTING POSITIONS
LD04126
A FBDCE
G LHJIK
A HDBC EFG
I PLJK MNO
LD04126
LD04127
Models YCAS0693EC – YCAS0953EC
Models YCAS1063EC – YCAS1263EC
ALUMINUM FIN COIL WEIGHT DISTRIBUTION BY MODEL ( KGS )
YCAS A B C D E F G H I J K L M N O P TOTAL
0693 850 774 897 642 649 850 864 1,019 958 1,066 — — — — — — 8,569
0773 850 779 919 649 649 850 869 1,027 962 1,067 — — — — — — 8,619
0783 856 790 945 659 582 383 856 884 1,055 970 977 383 — — — — 9,341
0873 869 808 947 826 1,081 385 869 793 615 862 979 385 — — — — 9,418
0953 873 826 966 668 588 389 873 919 1,074 982 983 389 — — — — 9,531
1063 860 773 889 417 535 863 387 924 860 773 889 417 535 863 387 924 11,293
1093 855 758 875 615 1,012 606 765 883 758 875 952 562 943 542 — — 11,001
1163 846 743 881 425 926 590 866 619 846 743 881 425 926 590 866 619 11,791
1263 846 761 903 425 928 591 867 620 846 761 903 425 928 591 867 620 11,882
