York YCAS User Manual

143
YORK INTERNATIONAL
FORM 201.19-NM6 (804)

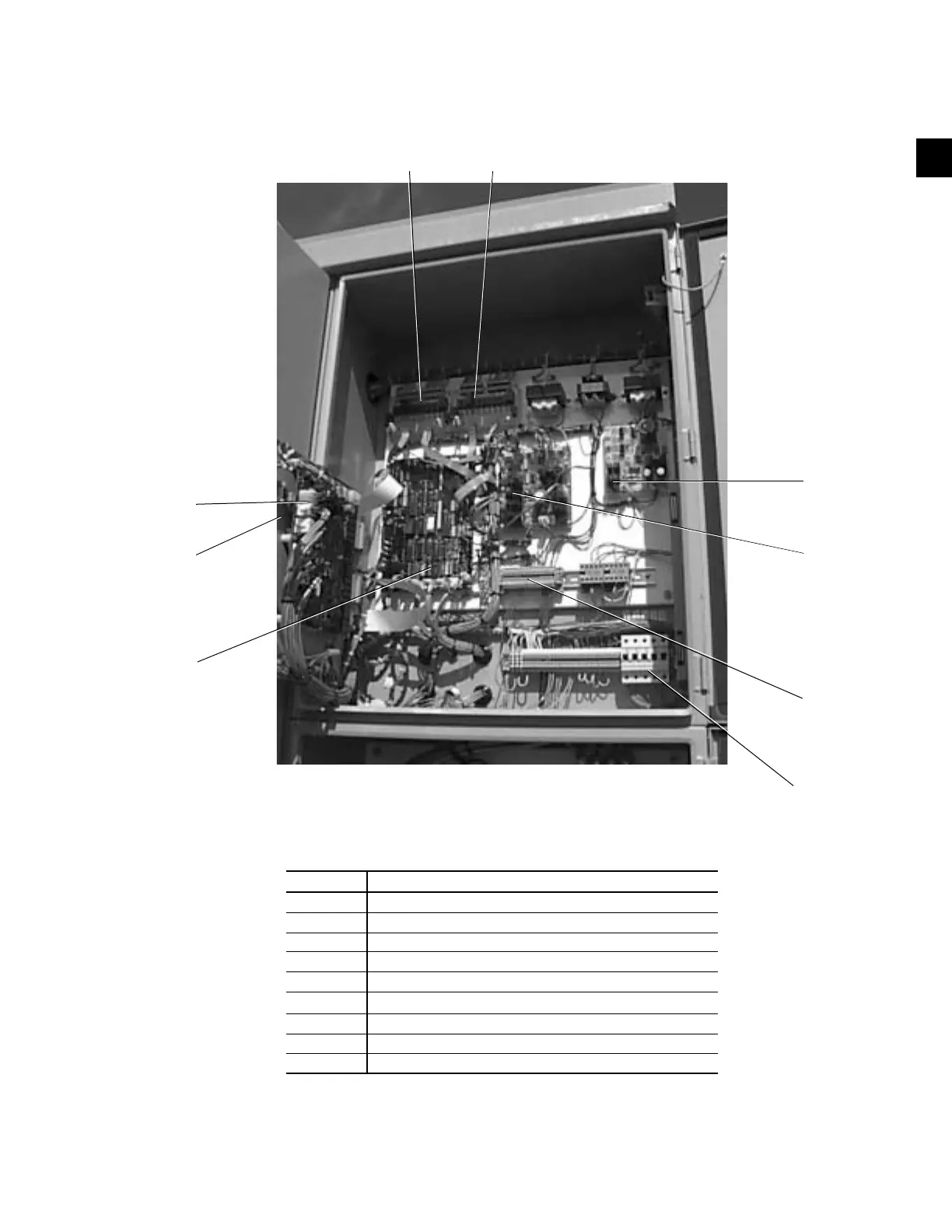

FIG. 75 – LOGIC SECTION LAYOUT
8
1.12 LOGIC SECTION LAYOUT
50 Hz Models :
PHOTOGRAPH OF
50HZ MODEL LOGIC SECTION
00262VIP
1
2
3
6
7
5
4
8
ITEM
1
2
3
4
5
6
7
8
9
DESCRIPTION
Microprocessor Board
Back of Keypad
I/O Expansion Board # 2
I/O Expansion Board # 1
Power Supply Board
Relay Output Board #1
Relay Output Board #2
Flow Switch & Customer Connection Terminals (TB4)
Circuit Breakers
9
