York YCAS - Elementary Wiring Diagram Ycas1063 - Ycas1263 (4 Compressor); Fig. 34 - Elementary Wiring Diagram

To Next Page

To Previous Page

YORK INTERNATIONAL

FORM 201.19-NM6 (804)

Technical Data

LD09367

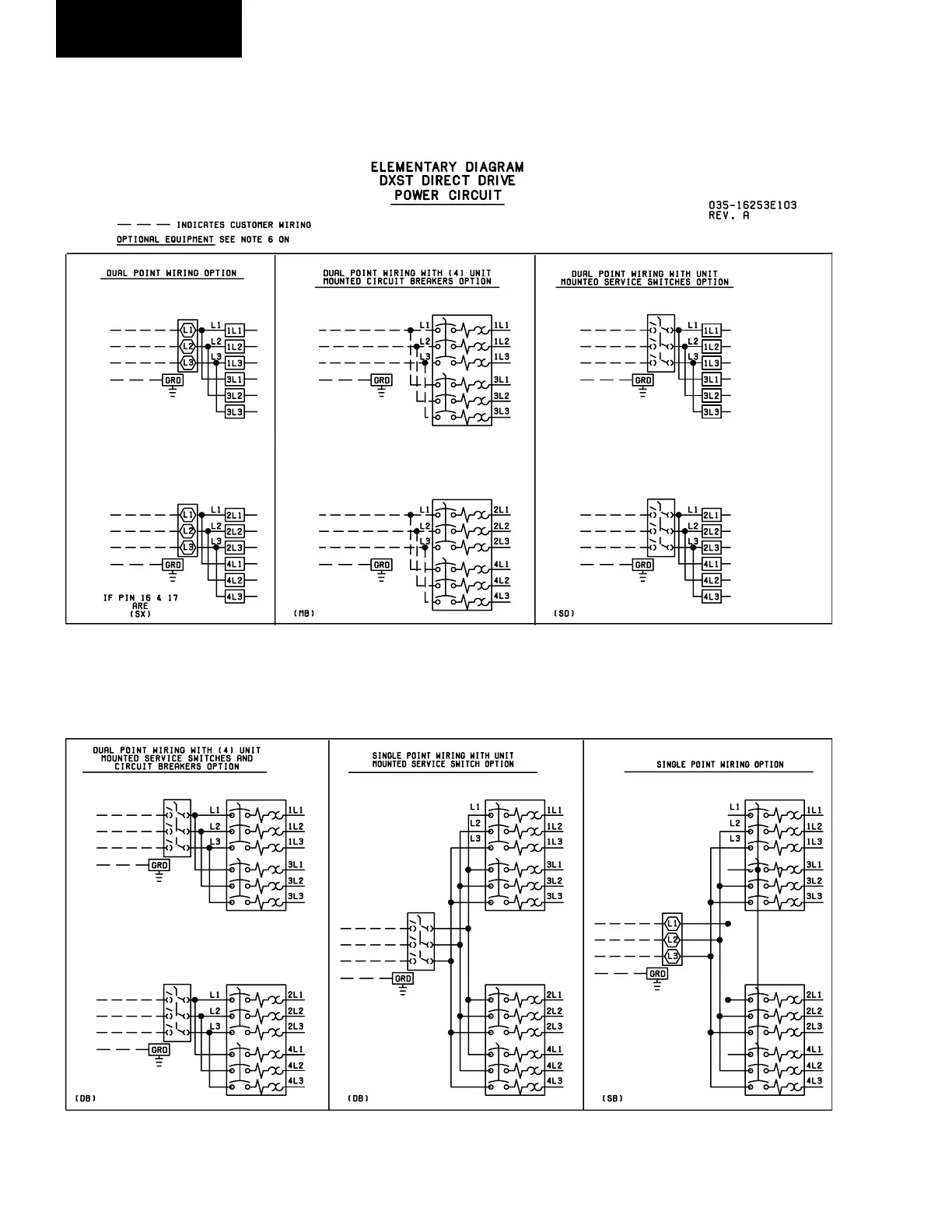

FIG. 34 – ELEMENTARY WIRING DIAGRAM - 4 COMPRESSOR

ELEMENTARY WIRING DIAGRAM

YCAS1063 - YCAS1263 (4 COMPRESSOR)

PAGE 76
