WEIGHT DISTRIBUTION AND ISOLATOR MOUNTING POSITIONS

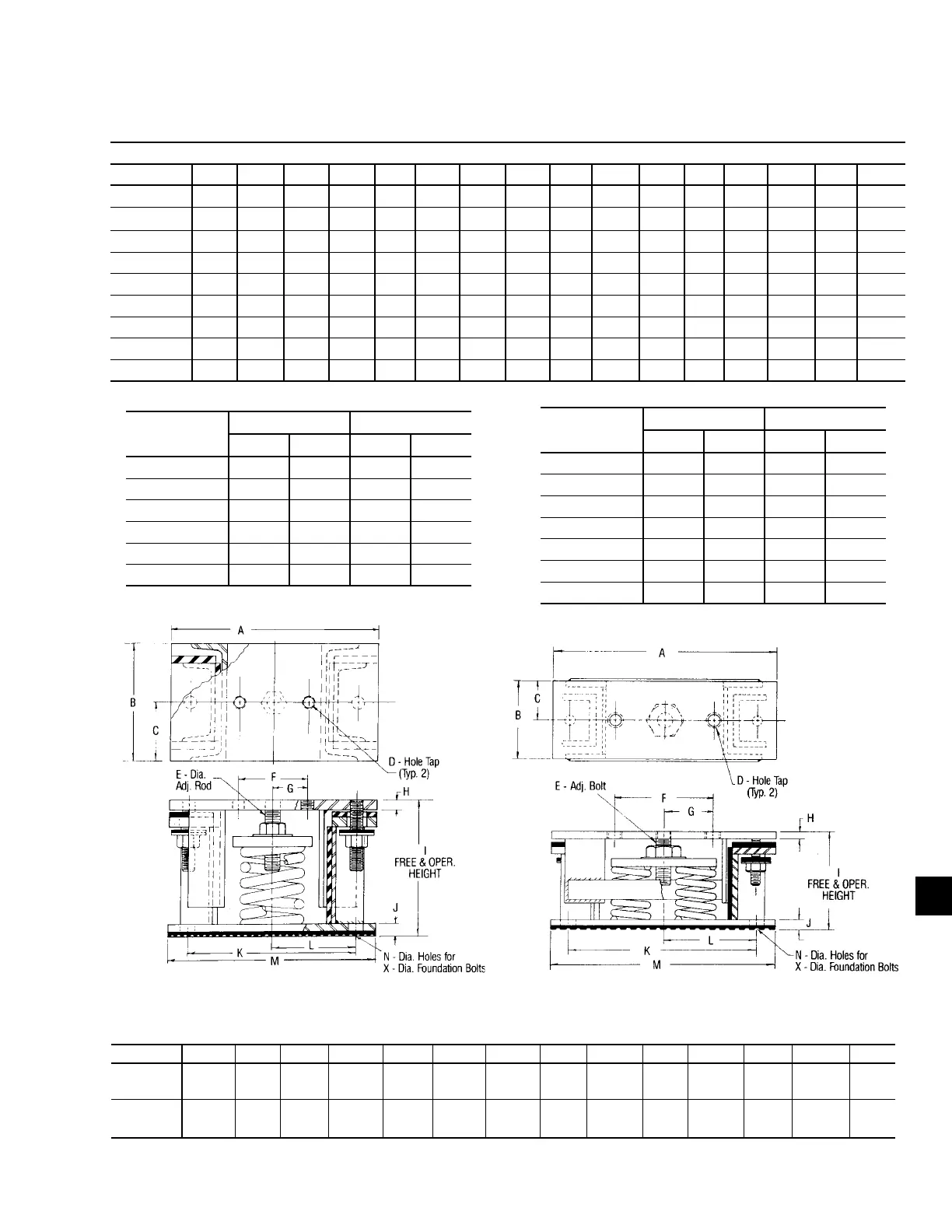

FIG. 61 – ISOLATOR DETAILS
Aluminium Fin and Black Fin Condenser Coils with Silencer Kit
A B C D E F G H I J K L M N/X
AWMR-1
10-1/2 6 3
5/8
3/4 3-1/2 1-3/4 1/2 9 5/8 8-1/2 4-1/4 10-1/2
3/4
50-553 11NC 5/8
AWMR-2
15 6 3
3/4
1 7-1/2 3-3/4 1/2 9-1/2 5/8 14-1/2 7-1/4 17
3/4
50-553 10NC 5/8
DIMENSIONS - In.
LD02973
AWMR-1-XXX
LD02974
AWMR-2-XXX
ALUMINUM FIN WITH OPTIONAL SILENCER KIT. FINS, SEISMIC ISOLATOR SELECTIONS - VMC MODEL # AWMR-
50 Hz ABCDEFGHI JKLMNOP
YCAS0693 1-553 2-53 2-530 1-551 1-551 1-553 2-530 2-531 2-531 1-552 --- --- --- --- --- ---
YCAS0773 1-553 2-53 2-530 1-551 1-551 1-553 2-530 2-531 2-531 1-552 --- --- --- --- --- ---
YCAS0783 1-553 2-53 2-530 1-551 1-532 1-530 1-553 2-530 2-531 2-531 2-530 1-530 --- --- --- ---
YCAS0873 1-553 2-53 2-530 1-553 2-531 1-530 1-553 2-53 2-521 1-553 2-530 1-530 --- --- --- ---
YCAS0953 1-553 2-530 2-530 1-552 1-532 1-530 1-553 2-530 2-531 2-531 2-531 1-530 --- --- --- ---
YCAS1063 1-553 2-53 2-530 2-520 2-520 2-530 2-520 1-553 1-553 2-53 2-530 2-520 2-520 2-530 2-530 1-553
YCAS1093 1-553 2-53 2-530 1-551 2-531 2-521 1-553 1-553 2-53 1-553 2-530 2-521 2-530 1-532 --- ---
YCAS1163 1-553 2-53 2-530 1-530 2-530 2-521 1-553 2-521 1-553 2-53 2-530 1-530 2-530 2-521 1-553 2-521
YCAS1263 1-553 2-53 2-530 1-530 2-530 2-521 1-553 2-521 1-553 2-53 2-530 1-530 2-530 2-521 1-553 2-521
ISOLATOR
TYPE & SIZE
MAX LOAD DEFL.
lbs. kg in. mm
AWMR-1-53 1000 453.6 2 51
AWMR-1-530 1150 521.6 2 51
AWMR-1-531 1276 578.8 2 51
AWMR-1-532 1500 680.4 2 51
AWMR-1-551 1676 760.2 2 51
AWMR-1-552 1900 861.8 2 51
ISOLATOR
TYPE & SIZE
MAX LOAD DEFL.
lbs. kg in. mm
AWMR-1-553 2200 997.9 2 51
AWMR-2-520 1300 589.7 2 51
AWMR-2-521 1552 704.0 2 51
AWMR-2-53 2000 907.2 2 51
AWMR-1-530 2300 1043.3 2 51
AWMR-2-531 2552 1157.6 2 51
AWMR-2-532 3000 1360.8 2 51
