York YCAS0150 User Manual

33YORK INTERNATIONAL
FORM 201.18-NM1 (102)
60 Hz Models:
PHOTOGRAPH OF
60 HZ MODEL LOGIC SECTION

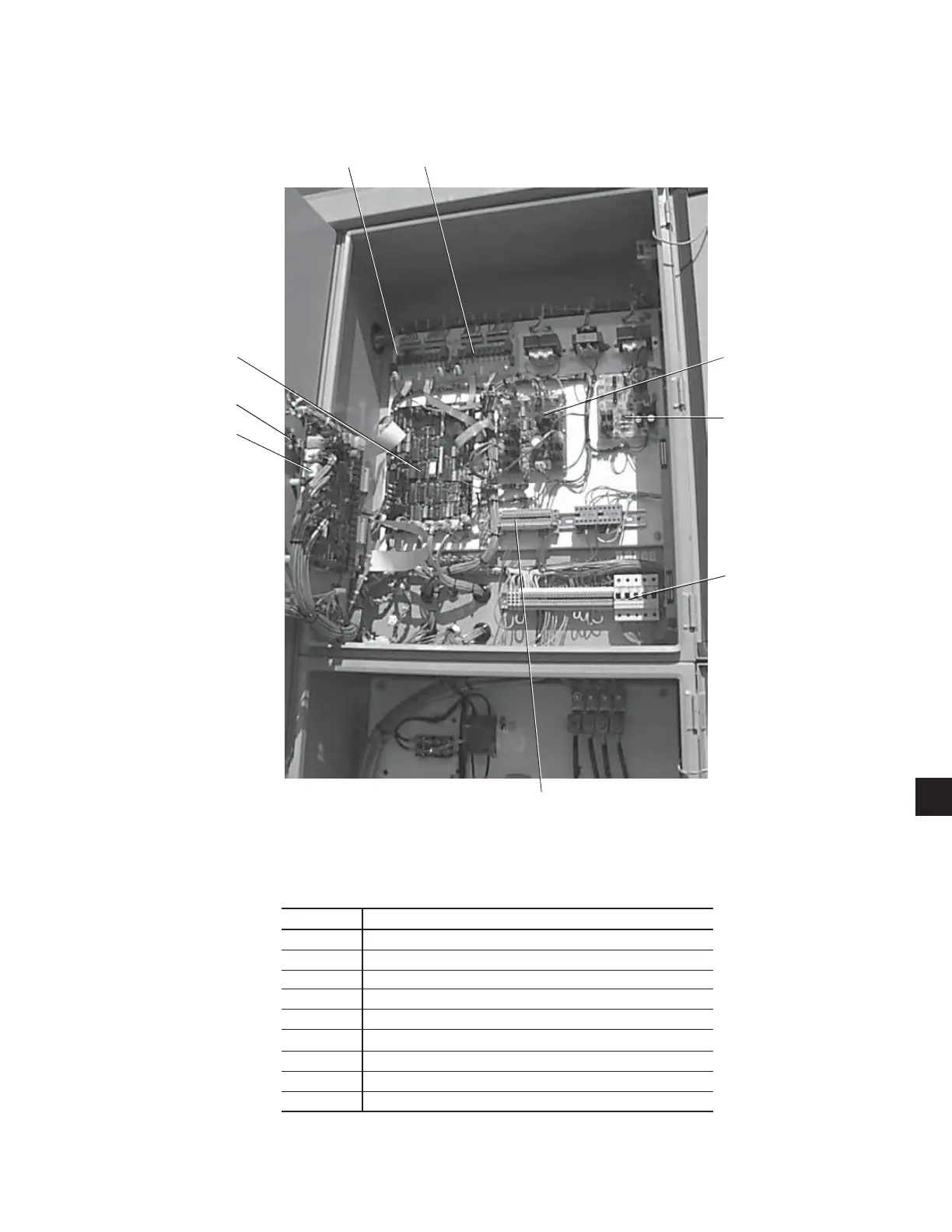

FIG. 10 – LOGIC SECTION LAYOUT
LOGIC SECTION LAYOUT
00247VIP
ITEM
1
2
3
4
5
6
7
8
9
DESCRIPTION
Microprocessor Board
Back of Keypad
Back of Display
I/O Expansion Board #1
Power Supply Board
Relay Output Board #1
Relay Output Board #2
Flow Switch & Customer Connection Terminals
Circuit Breakers
6 7
1
3
2
8
9
5
4
4

York YCAS0150 Specifications

General

Brand	York
Model	YCAS0150
Category	Chiller
Language	English
