72 YORK INTERNATIONAL
FORM 201.18-NM1 (102)
Technical Data
CONTROL
OPENING
(9-1/2" HIGH)
7-1/2"
2"
POWER
OPENING
(21" HIGH)
42"
30-3/4"
7-1/4"
VIEW C-C
CONTROL ENTRY
(12) 7/8" DIA.
KNOCKOUTS
8-7/8"
28"
2"
2" TYP.
4-3/4"
12"
VIEW B-B

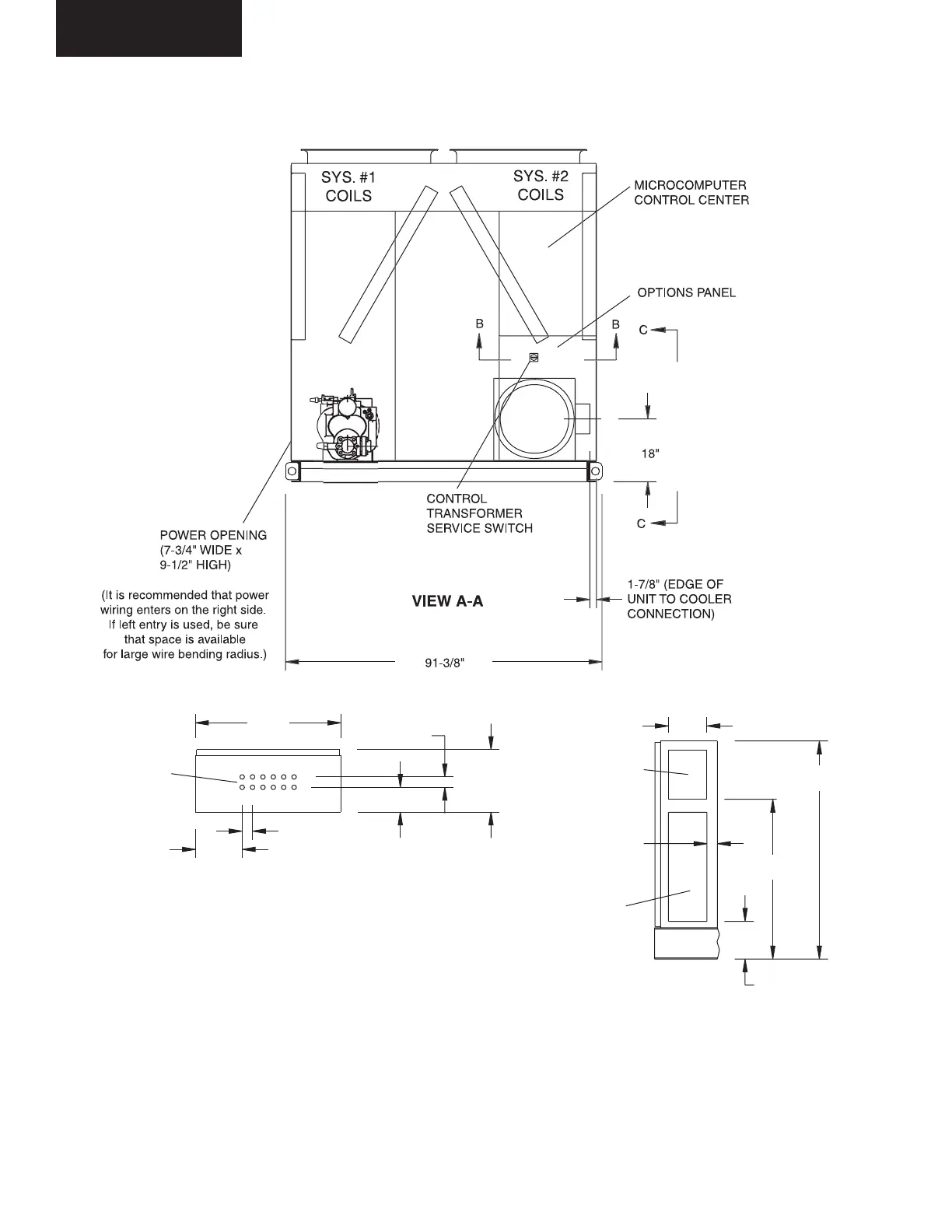

DIMENSIONS – YCAS0130 - 0180 (ENGLISH)
LD02988
LD02986
LD02987
FIG. 32 – MODEL YCAS0130 - 0180 DIMENSIONS (ENGLISH DIMENSIONS)
NOTES:
1. Placement on a level surface free of obstructions (including snow, for winter operation) or air
recirculation ensures rated performance, reliable operation and ease of maintenance. Site re-
strictions may compromise minimum clearances indicated below, resulting in unpredictable air
flow patterns and possible diminished performance. YORK's unit controls will optimize operation
without nuisance high pressure safety cutout; however, the system designer must consider po-
tential performance degradation. Access to the unit Micro Panel assumes the unit is no higher
than on spring isolators. Recommended minimum clearances: Side to wall - 6'; rear to wall - 6';
control panel end to wall - 4'; top - no obstructions allowed; distance between adjacent units - 10'.
No more than one adjacent wall may be higher than the unit.
