ELECTRICAL DATA
Technical Data
One field-provided power supply circuit to the unit with
field supplied circuit protection. Field connections to
factory-provided Non-Fused Disconnect Switch (Opt),
or Terminal Block (Opt) in the Options Panel. Factory
connections to Terminal Blocks in each of the two
Power Panels.

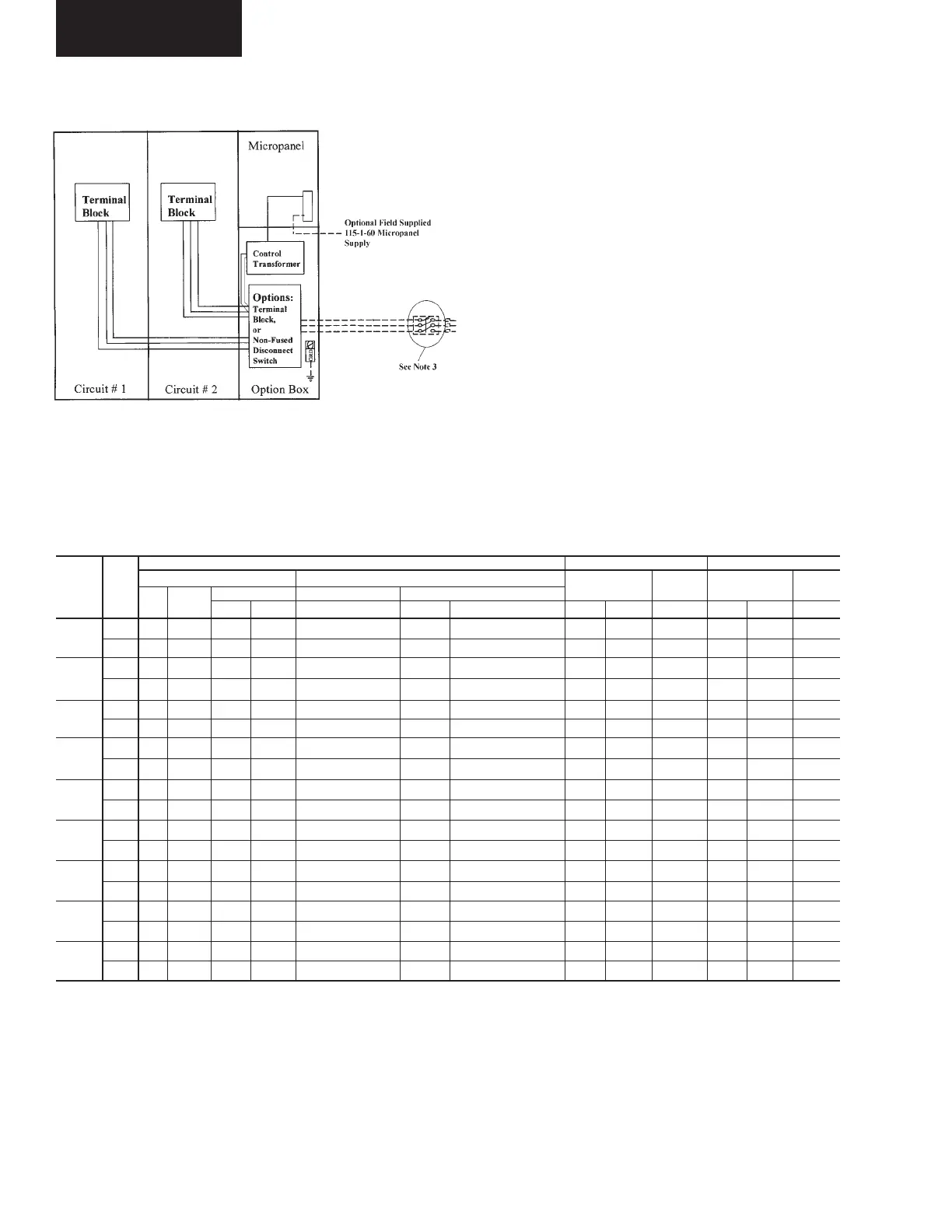

OPTIONAL SINGLE-POINT POWER SUPPLY
CONNECTION WITH FIELD SUPPLIED CIRCUIT
PROTECTION
Suitable for:
Y -
∆∆
∆∆
∆ Start and
Across-the-Line-Start
LD05899
CHILLER
FIELD SUPPLIED WIRING SYSTEM #1 SYSTEM #2
MODEL
FIELD-PROVIDED PWR SUPPLY FACTORY-PROVIDED (LUGS) WIRE RANGE
COMPRESSOR FANS COMPRESSOR FANS
VOLTS
MCA
1
MIN NF
DUAL ELEM. FUSE TERMINAL BLOCK NF SERVICE DISC. SWITCH
DATA DATA DATA DATA
YCAS
DISC SW
2
MIN.
3
MAX.
4
(LUGS) WIRE RANGE
7
RATING
2
(LUGS) WIRE RANGE
7
RLA X-LRA FLA (ea.) RLA X-LRA FLA (ea.)
0130EC
460 273 400 300 400 # 1 - 500 400 (2) 3/0 - 250 107 579 4.0 107 579 4.0
575 217 250 250 350 # 1 - 500 250 # 6 AWG - 350 86 463.2 3.1 86 463 3.1
0140EC
460 293 400 350 450 (2) # 2 - 300 400 (2) 3/0 - 250 116 579 4.0 116 579 4.0
575 234 250 300 350 # 1 - 500 250 # 6 AWG - 350 93 463.2 3.1 93 463 3.1
0150EC
460 307 400 350 450 (2) # 2 - 300 400 (2) 3/0 - 250 128 856 4.0 115 579 4.0
575 246 400 300 350 # 1 - 500 250 # 6 AWG - 350 103 715 3.1 92 463 3.1
0160EC
460 320 400 400 450 (2) # 2 - 300 400 (2) 3/0 - 250 128 856 4.0 128 856 4.0
575 257 400 300 400 # 1 - 500 400 (2) 3/0 - 250 103 715 3.1 103 715 3.1
0170EC
460 335 400 400 500 (2) # 2 - 300 400 (2) 3/0 - 250 140 856 4.0 128 856 4.0
575 268 400 300 400 # 1 - 500 400 (2) 3/0 - 250 112 715 3.1 103 715 3.1
0180EC
460 347 400 400 500 (2) # 2 - 300 400 (2) 3/0 - 250 140 856 4.0 140 856 4.0
575 277 400 350 400 (2) # 2 - 300 400 (2) 3/0 - 250 112 715 3.1 112 715 3.1
0200EC
460 375 400 450 600 (2) # 1 - 500 400 (2) 3/0 - 250 149 856 4.0 149 856 4.0
575 299 400 350 450 (2) # 2 - 300 400 (2) 3/0 - 250 119 715 3.1 119 715 3.1
0210EC
460 393 600 450 600 (2) # 1 - 500 400 (2) 3/0 - 250 163 856 4.0 149 856 4.0
575 313 400 350 450 (2) # 2 - 300 400 (2) 3/0 - 250 130 715 3.1 119 715 3.1
0230EC
460 407 600 450 600 (2) # 1 - 500 630 (3) - 2/0 - 400 163 856 4.0 163 856 4.0
575 324 400 400 500 (2) # 2 - 300 400 (2) 3/0 - 250 130 715 3.1 130 715 3.1
See page 53 for Electrical Notes.
