JOHNSON CONTROLS
133
SECTION 6 - TECHNICAL DATA
FORM 201.23-NM2
ISSUE DATE: 09/25/2020
6

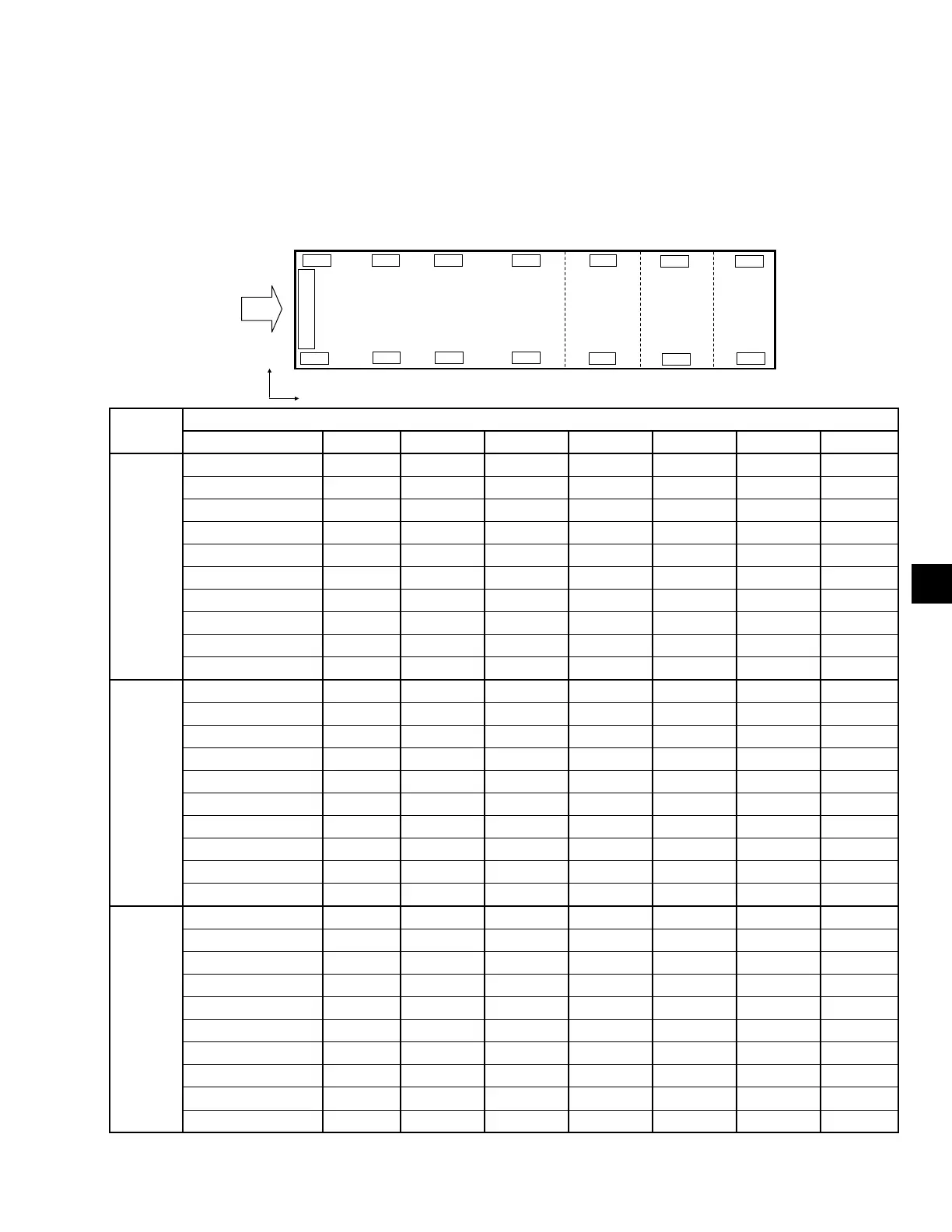

ISOLATOR SELECTION AND MOUNTING
ISOLATOR INFORMATION FOR UNITS SHIPPED ON
OR AFTER JUNE 15, 2008
STANDARD EFFICIENCY, ENGLISH
YCIV
ISOLATOR LOCATIONS (X, Y) - IN. AND POINT LOADS - LB
1 2 3 4 5 6 7
0157S/P/H
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (211, 86.8)
Al Fin Coils 1702 1592 1396 1340
Cu Fin Coils 1702 1704 1739 1682
RS&LS1/Al Fin Coils 1881 1770 1396 1340
RS&LS1/Cu Fin Coils 1881 1883 1739 1682
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (211, 1.3)
Al Fin Coils 1702 1592 1396 1340
Cu Fin Coils 1702 1704 1739 1682
RS&LS1/Al Fin Coils 1881 1770 1396 1340
RS&LS1/Cu Fin Coils 1881 1883 1739 1682
0177S/P/H
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (211, 86.8)
Al Fin Coils 1720 1614 1667 1609
Cu Fin Coils 1720 1726 2011 1951
RS&LS1/Al Fin Coils 1898 1792 1667 1609
RS&LS1/Cu Fin Coils 1898 1905 2011 1951
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (211, 1.3)
Al Fin Coils 1702 1594 1667 1609
Cu Fin Coils 1702 1706 2011 1951
RS&LS1/Al Fin Coils 1881 1773 1667 1609
RS&LS1/Cu Fin Coils 1881 1885 2011 1951
0187S/P/H
LEFT - L (9.1, 86.8) (59.4, 86.8) (109.4, 86.8) (195.7, 86.8) (265.4, 86.8)
Al Fin Coils 1715 1579 1559 1274 774
Cu Fin Coils 1715 1700 1898 1653 935
RS&LS1/Al Fin Coils 1894 1757 1559 1274 774
RS&LS1/Cu Fin Coils 1894 1878 1898 1653 935
RIGHT - R (9.1, 1.3) (59.4, 1.3) (109.4, 1.3) (195.7, 1.3) (265.4, 1.3)
Al Fin Coils 1698 1559 1559 1241 664
Cu Fin Coils 1698 1680 1898 1620 825
RS&LS1/Al Fin Coils 1876 1737 1559 1241 664
RS&LS1/Cu Fin Coils 1876 1858 1898 1620 825
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
Units shipped on or after June 15, 2008
