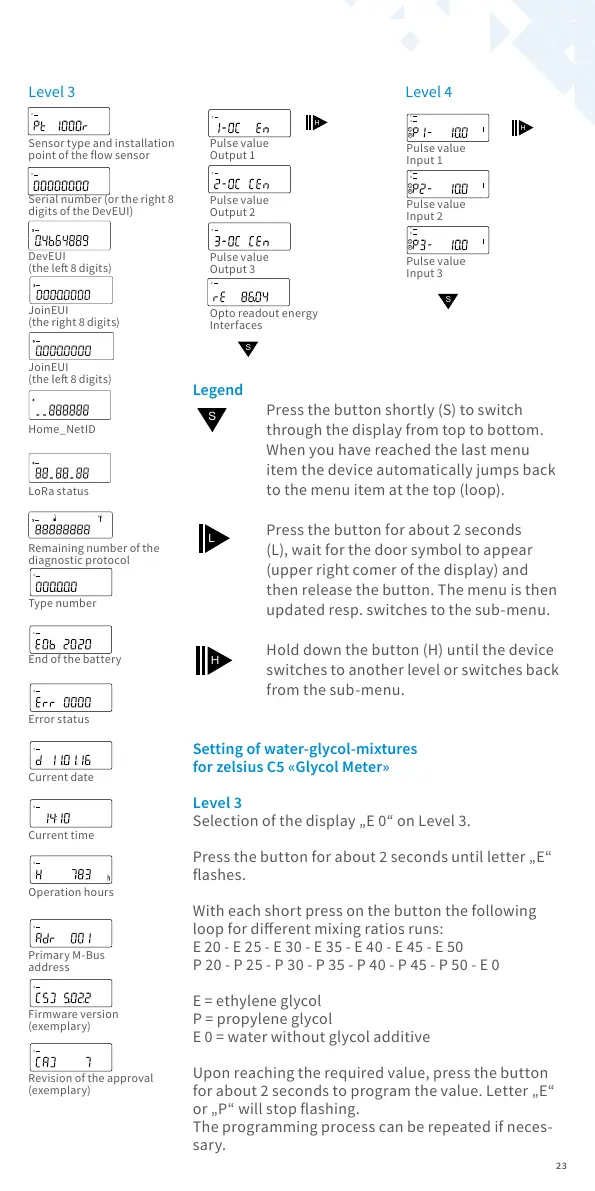

Legend
Press the button shortly (S) to switch
through the display from top to bottom.
When you have reached the last menu
item the device automatically jumps back
to the menu item at the top (loop).
Press the button for about 2 seconds
(L), wait for the door symbol to appear
(upper right comer of the display) and
then release the button. The menu is then
updated resp. switches to the sub-menu.
Hold down the button (H) until the device
switches to another level or switches back
from the sub-menu.
S
L
H
Setting of water-glycol-mixtures
for zelsius C5 «Glycol Meter»
Level 3
Selection of the display „E 0“ on Level 3.
Press the button for about 2 seconds until letter „E“
ashes.
With each short press on the button the following
loop for dierent mixing ratios runs:
E 20 - E 25 - E 30 - E 35 - E 40 - E 45 - E 50
P 20 - P 25 - P 30 - P 35 - P 40 - P 45 - P 50 - E 0
E = ethylene glycol
P = propylene glycol
E 0 = water without glycol additive
Upon reaching the required value, press the button
for about 2 seconds to program the value. Letter „E“
or „P“ will stop ashing.
The programming process can be repeated if neces-
sary.
Level 3 Level 4
Pulse value
Output 1
Pulse value
Output 2
Pulse value
Output 3
Opto readout energy
Interfaces
Pulse value
Input 1
Pulse value
Input 2
Pulse value
Input 3
Sensor type and installation
point of the ow sensor
Serial number (or the right 8
digits of the DevEUI)
Type number
End of the battery
Error status
Current date
Current time
Operation hours
Primary M-Bus
address
Firmware version
(exemplary)
Revision of the approval
(exemplary)
DevEUI
(the le 8 digits)
Home_NetID
LoRa status
JoinEUI
(the right 8 digits)
JoinEUI
(the le 8 digits)
Remaining number of the
diagnostic protocol
