ZXHN H3600 Maintenance Management Guide

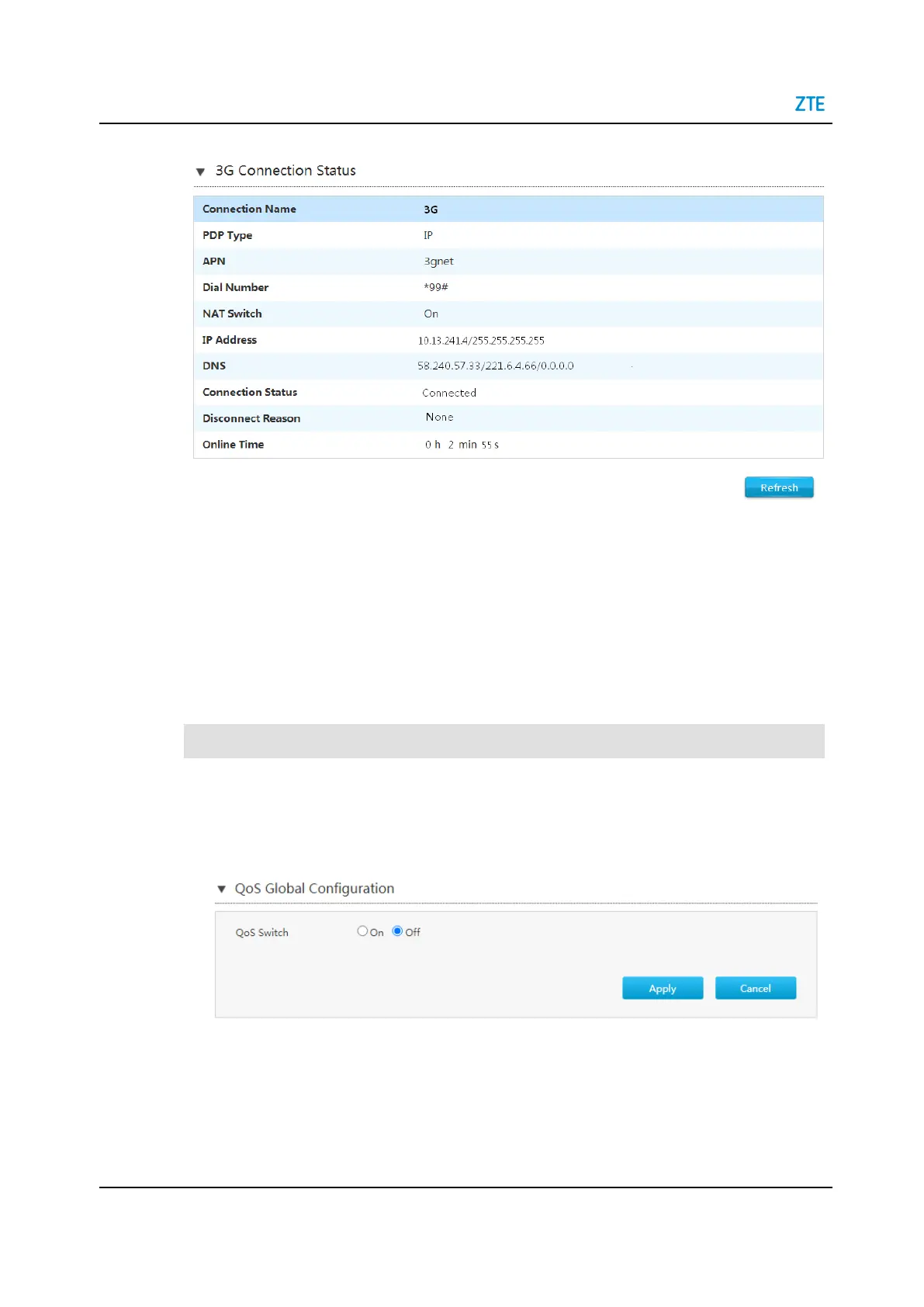

Figure 5-9 3G Connection Status

5.3 Configure the QoS

5.3.1 Configure the QoS Global Parameters

This page provides the function of QoS switch and other global parameters configura-

tion. Packets that match no classification rules will be processed according to the default

policy showed in this page.

Steps

1. On the main page of the ZXHN H3600, select Internet > QoS > QoS Global Config-

uration to the QoS Global Configuration page, see Figure 5-10.

Figure 5-10 QoS Global Configuration page

2. Set radiobox On to enable QoS function.

3. Click Apply button to apply the changes.

5.3.2 Configure the QoS Classification

This page provides the parameters of QoS classification configuration features.

26 SJ-20201203151144-003 | 2021-06-16(R1.0)
