3xLogic VX-2A-B-IWD User Manual

Hardware and Installation Manual| VISIX V-Series All-in-One Cameras – Gen I
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
42

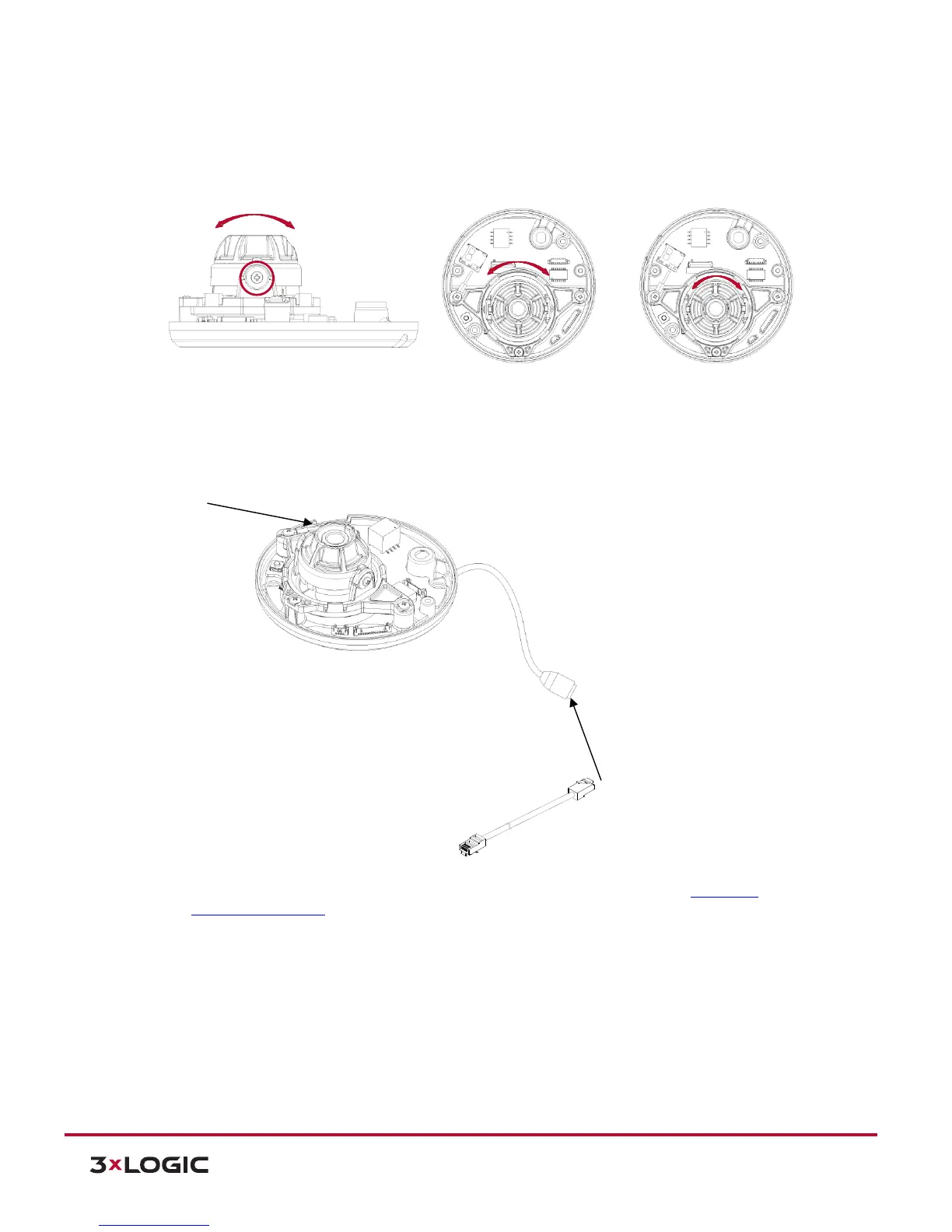

4.4.2 ADJUSTING ANGLE OF THE CAMERA
Adjust the angle of the camera by manually moving the corresponding parts following the directions
below.
4.5 Connections
1). LAN Connection: This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet cable
(RJ45. to connect the device to a hub or a router in the network. Refer to Section 7: Power over
Ethernet Specfications for further detail.
Connection Status Indicators: Two LEDs are located near the SD card slot, and you can check the
connecting status by observing the LED on the right side.
 Solid red – The device is in the process of booting.
 Blinking green – Booting is completed
B. To pan, rotate the lower
body of the camera gimbal.
C. Rotate the lens
with upper lens shell
A. To tilt, tilt the lens by vertically
adjusting the camera gimbal.
LAN Connection
❶
❷
Connection Status LEDs
