6.4 Installation
6.4.1 CAMERA UNIT INSTALLATION
There are three different ways to install the camera unit:
 Inconspicuously behind the wall or ceiling by using the pinhole cover
 Mounted and fixed on the wall or ceiling by using the surface mount bracket
 Mounted and fixed on the wall or ceiling by using the pan/tilt bracket to enable the
camera’s angle adjustment

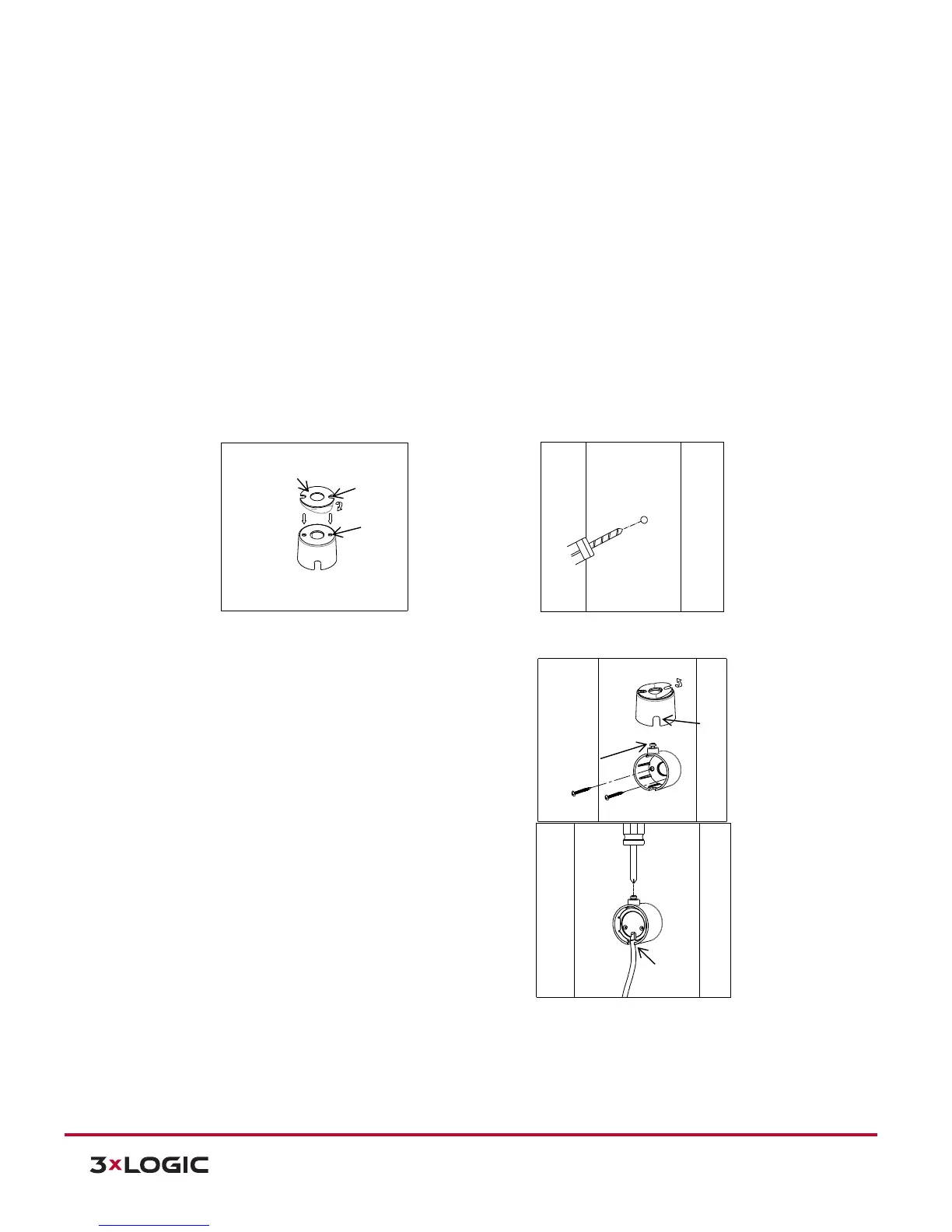

6.4.2 INCONSPICUOUS INSTALLATION
Steps:
1). Drill a hole (diameter: 3mm) on a desired spot where the camera lens will be located.
2). Peel off one side of the double-sided tape, and attach it to the flat surface of the pinhole cover
by aligning the grooves on the tape with the screw holes on the pinhole cover.
3). Peel off the other side of the tape, and stick the
taped surface to the installation surface after
aligning the hole on the pinhole cover with the
drilled hole on the installation surface and facing
the top screw hole upward.
4). Fasten the pinhole cover by using the tapping
screws (M3x20) appropriate for the material of
the installation surface.
5). Place the camera inside the pinhole cover by
routing the camera’s cable through the cable
holder on the pinhole cover, and tighten the top
screw head to fix the camera.
tape
groove
Screw hole
(Behind the wall or
above the ceiling)
Screw head
cable holder
(Behind the wall or
above the ceiling)
cable holder
