Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet / 10.17
Fitting the insulation
© Copyright 2021 ABB. All rights reserved.
HZTL4032_EN
Rev.Q
January 2021
10.17
Fitting the insulation

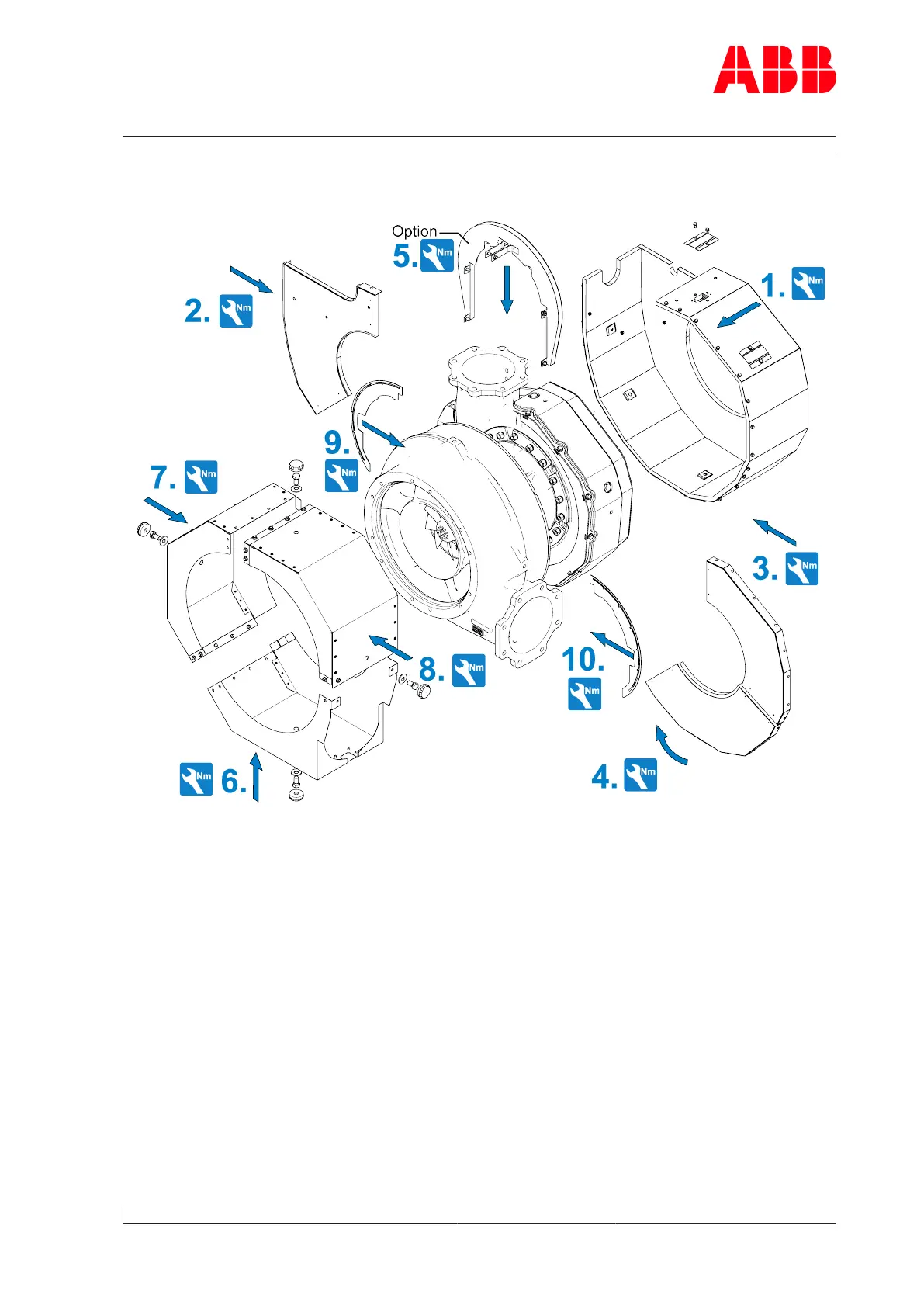

Fig.75: Fitting the insulation
u
Fit the insulation according to the illustration. Observe tightening torques (see
Table of
tightening torques
→
93
).
Page 123 / 194
124
126
