Operation Manual / A150-M56/66/57/67 - A155-M..
6 Operation and service / 6.1 Noise emission
© Copyright 2021 ABB. All rights reserved.
HZTL4032_EN
Rev.Q
January 2021

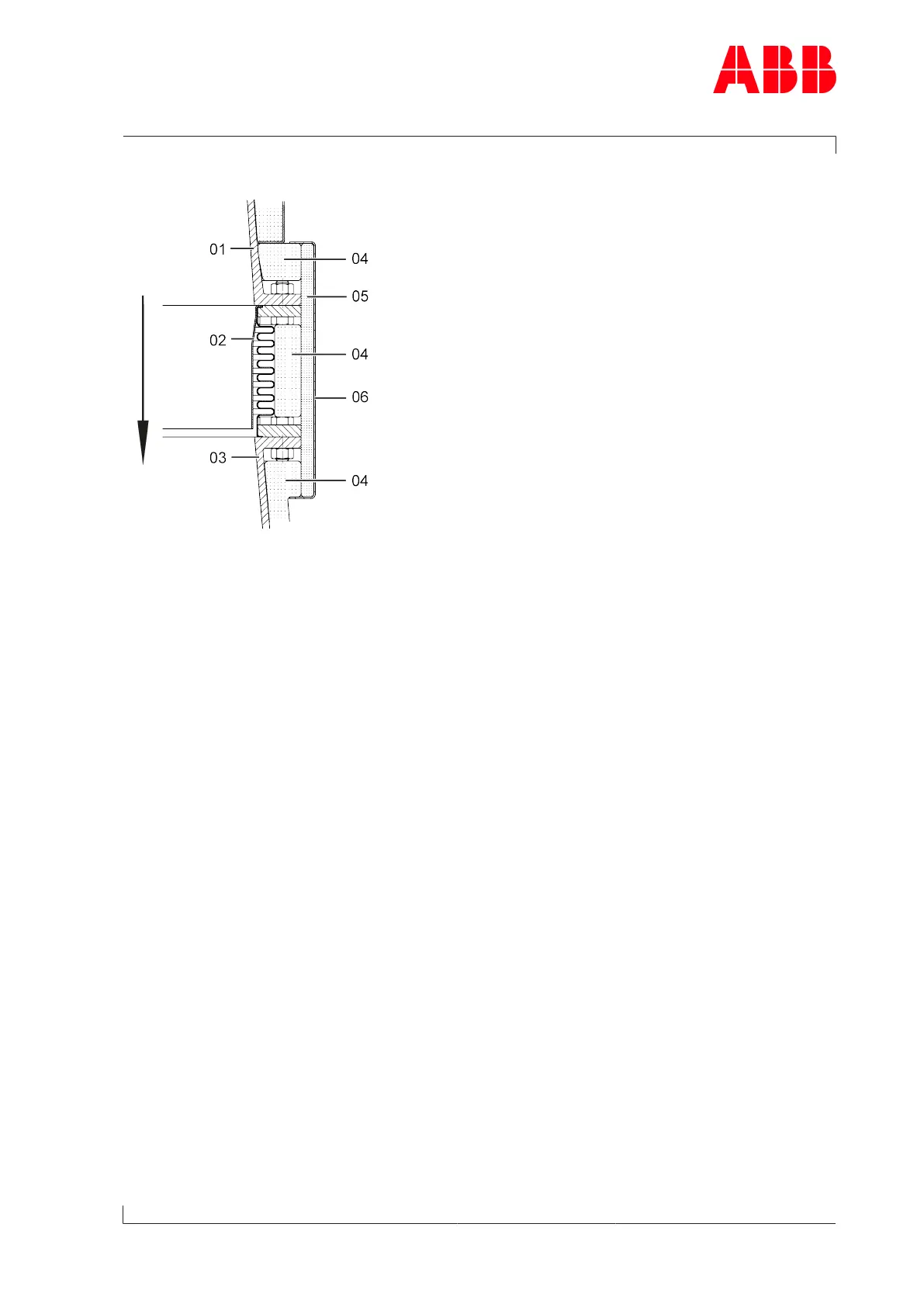

Suggestion for noise insulation, bellows
Fig.27: Noise insulation, bellows
01
Compressor casing
02
Bellows
03
Charge air duct / scavenging air duct
04
Insulation cushion
05
Insulation mat (at least 15 mm)
06
Sheet metal cover
Page 51 / 194
52
54
