Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet / 10.1
Removing air inlets
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021
A155-M Uncoupled filter silencer

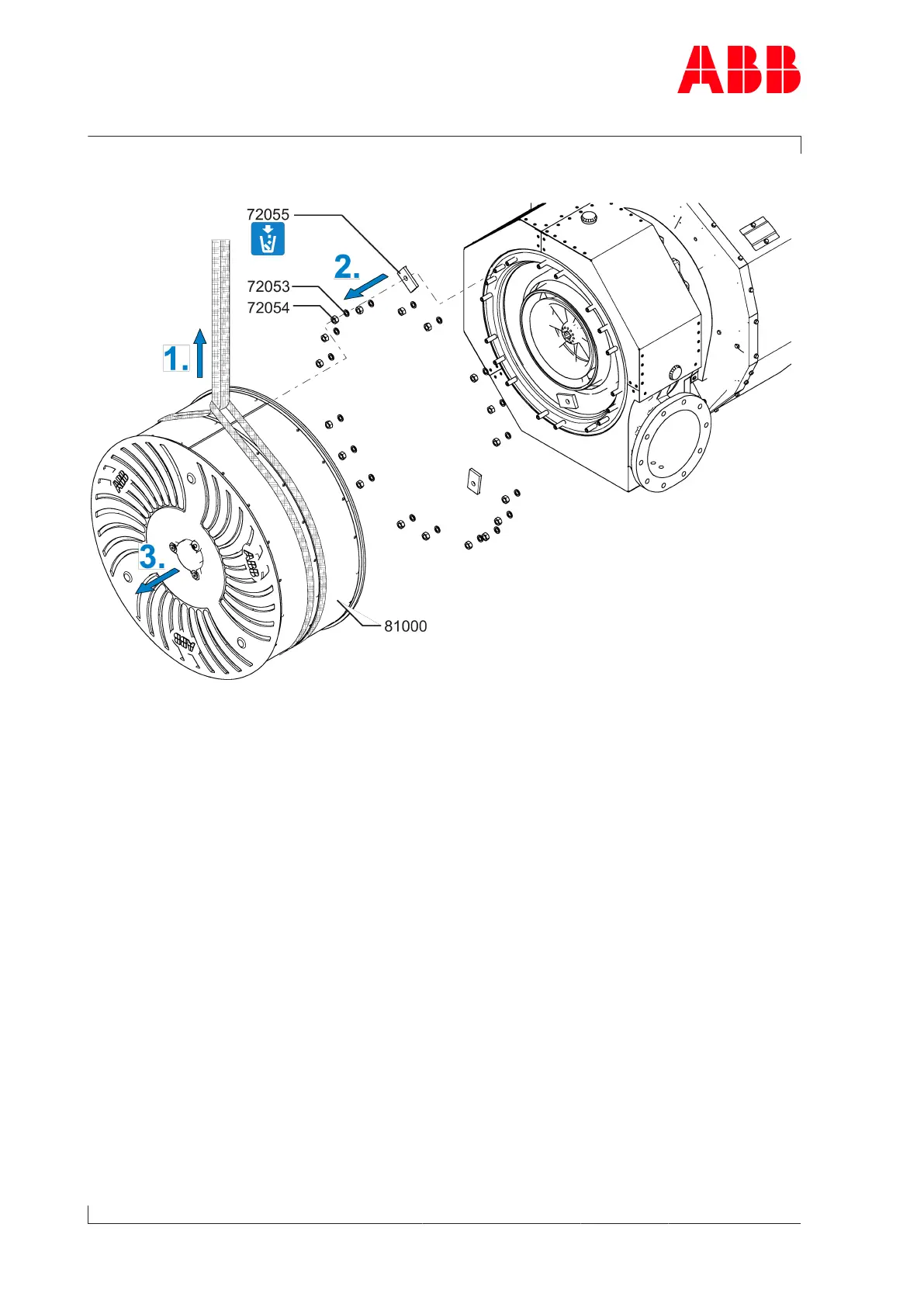

Fig.47: Removing the uncoupled filter silencer
1. Secure lifting gear to filter silencer(81000).
2. Unscrew the hexagon-head screws(72054) and remove along with Verbus Ripp® wash-
ers(72053) and three safety plates(72055).
3. Remove the filter silencer(81000).
Page 96 / 194
