15.5 Cover plate drawing
The cover plate is not included in the ABB scope of delivery and must be manufactured by
the operating company according to the following drawing.
Material: General structural steel, in accordance with DINEN10025-2.

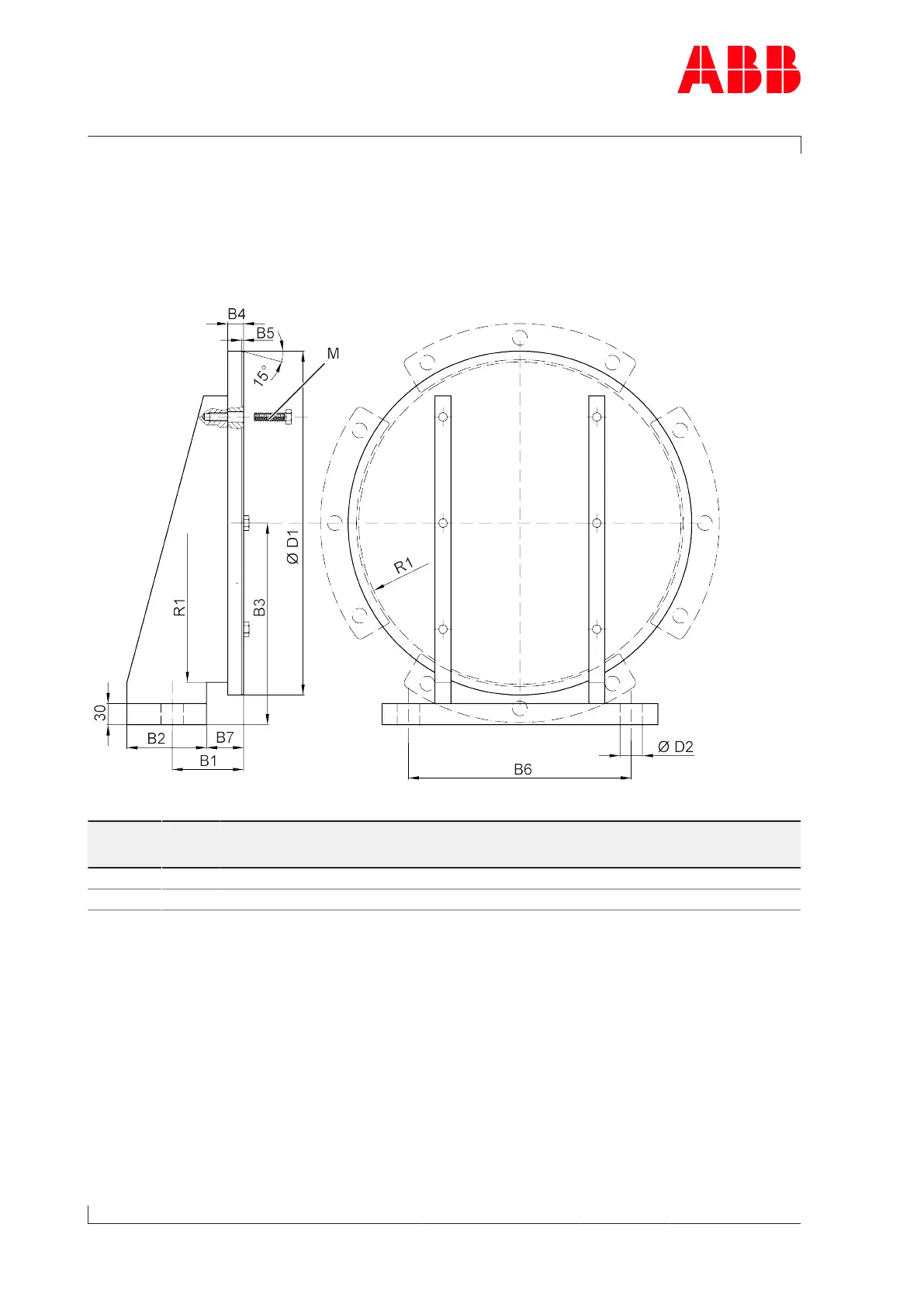

Fig.129: Cover plate drawing
Product B1
± 0.5
B2 B3 B4
± 0.2
B5 B6
± 0.1
B7 ØD1
± 0.2
ØD2 R1 M
A150 138.9 135 240 21.4 2.0 320 71.4 413.6 33 ≤196 M12
A155 164.6 160 286.5 25.5 2.0 385 84.6 492 39 ≤232 M16
Table75: Cover plate dimensions [mm]
