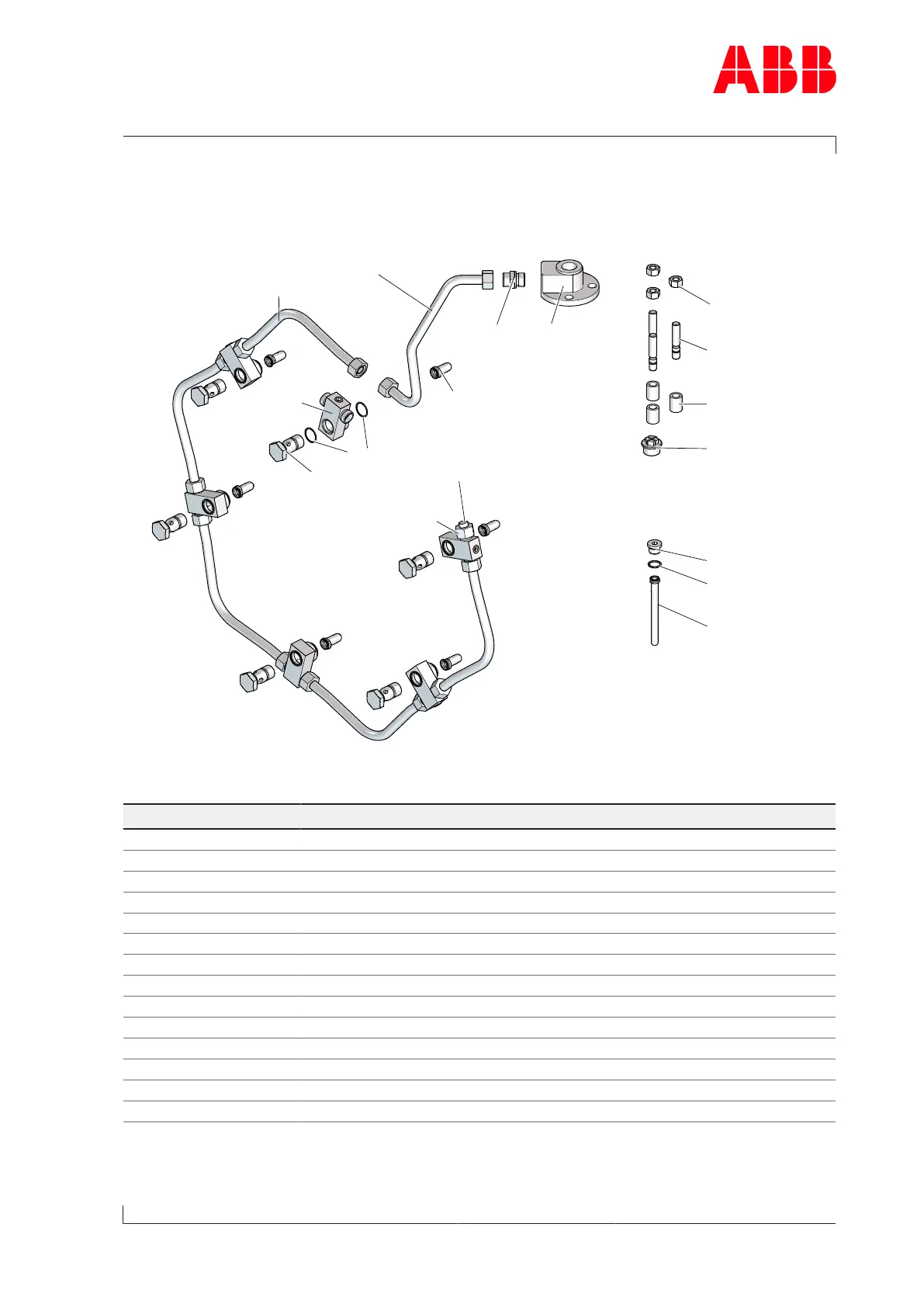

Operation Manual / A150-M56/66/57/67 - A155-M..
18 Spare parts / 18.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4032_EN
Rev.Q
January 2021
Cleaning device
51301
51302
51303
51311
51301
51316
51317
51302
51303
51313
51309
51312
51314*
51305
51308
51304
51310
HZTL443336 Mod. B
RT01...RT03
RT05...RT07
Part no.
Designation
51301*
Cleaning nozzle
51302*
Gasket
51303
Screw plug
51304
Flange
51305
Union branch
51308
Stud
51309
Expansion sleeve
51310
Hexagon nut
51311
Pipe elbow
51312
Pipe
51313
Joining piece
51314*
Hexagon-head screw
51316
Cap nut
51317
Stop plug
Table84: Spare parts - Cleaning device
