9 Dismantling and fitting, general / 9.4 Weights of individual parts
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021
9.4 Weights of individual parts

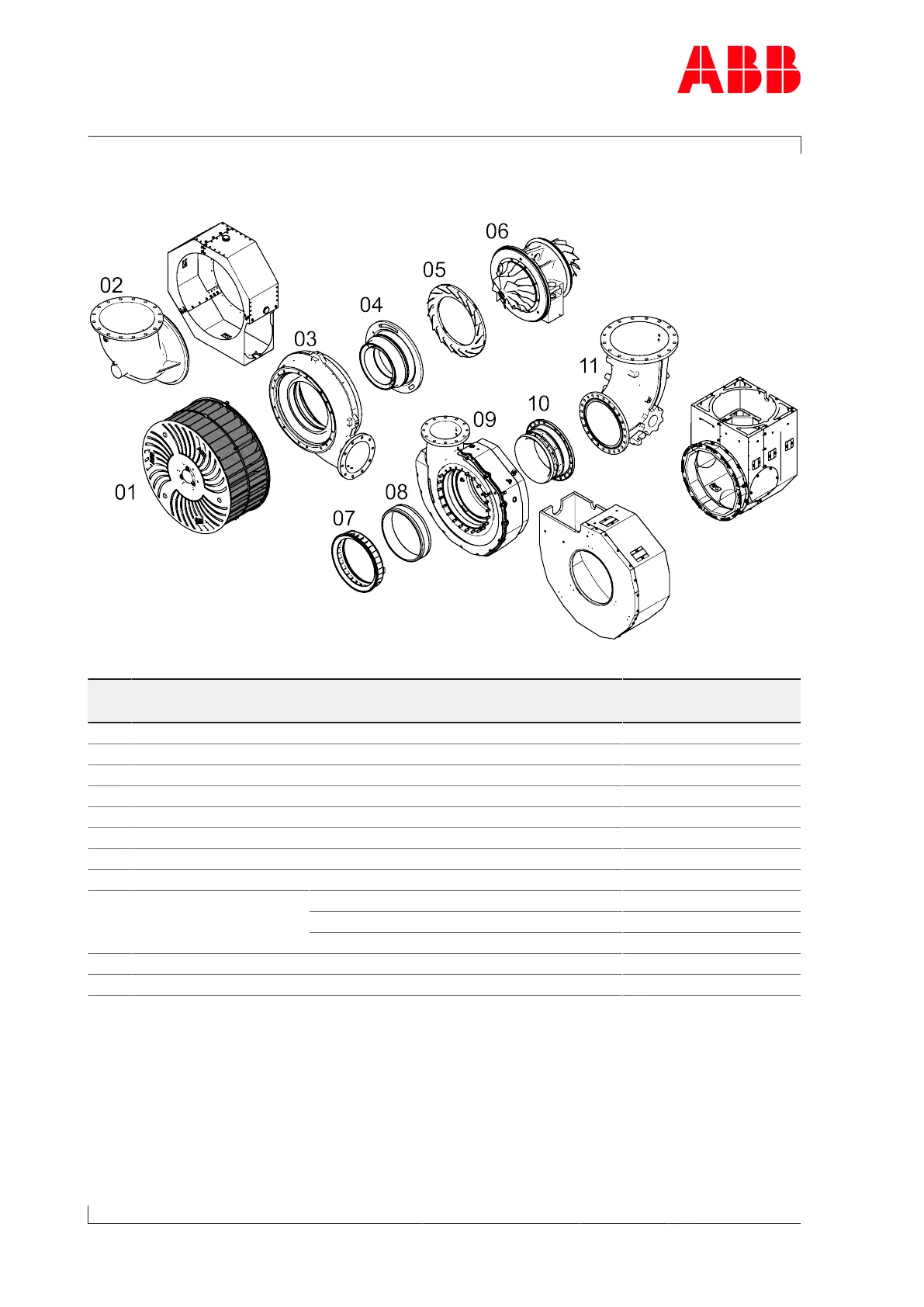

Fig.43: Weights of assemblies
Designation A150
[kg]
A155
[kg]
01 Filter silencer 90 140
02 Radial air suction branch 24 40
03 Compressor casing with insulation 180 280
04 Wall insert 35 65
05 Diffuser 13 21
06 Cartridge group 220 360
07 Nozzle ring 8 13
08 Burst ring 11 17
09 Turbine casing 1 inlet * 320 500
2 inlets * 290 460
3 inlets * 300 460
10 Gas outlet flange 35 65
11 Gas outlet casing with insulation 160 240
Table39: Weights of assemblies
* including burst protection and insulation
