Operation Manual / A150-M56/66/57/67 - A155-M..
3 Removing and Installing / 3.3 Installing the turbocharger
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021
3.3 Installing the turbocharger
3.3.1 Inserting gaskets
CAUTION
Inserting the gaskets
Gaskets that are forgotten, damaged or improperly inserted will lead to oil
leaks.
u Always use new gaskets and insert them carefully into the slot.

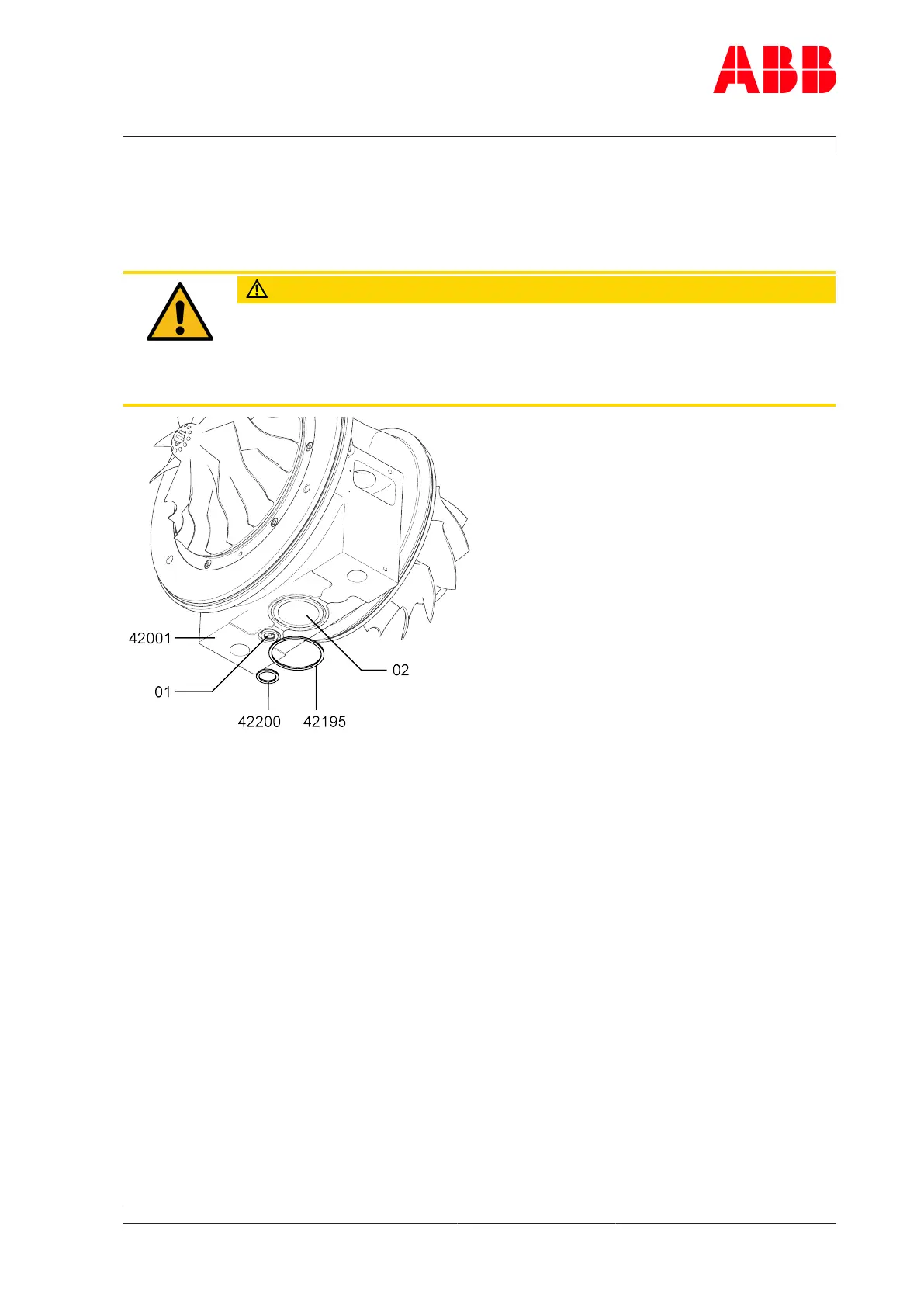

Fig.16: Inserting the gasket
01 Oil supply
02 Oil drain
42200 O-ring
42201 Bearing casing
42202 O-ring
Page 33 / 194
