3BHS799208 E01 REV E ACS5000 WATER-COOLED USER MANUAL 145/186
09 CDP CONTROL PANEL

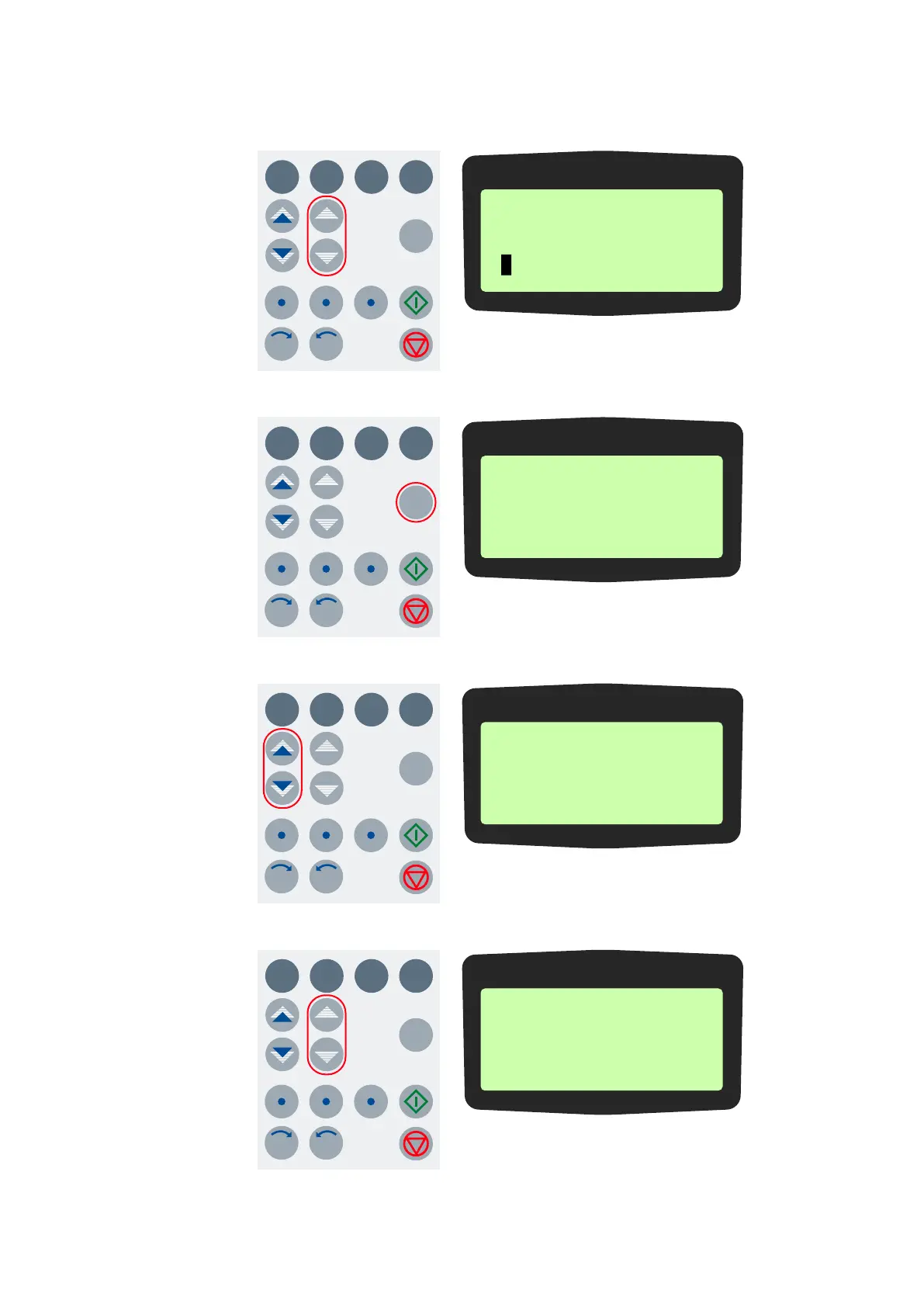

2. To select a line where the actual signal is to be displayed, press the
slow navigation keys. A blinking cursor indicates the selected line.
3. To enter the actual signals selection function, press the ENTER key.
4. To select a parameter group, press a fast navigation keys.
5. To select an actual signal, press a slow navigation keys.
1 L -> 600.0 rpm
StateINU ReadyRun
MOTOR SP 600.00 rpm
POWER 75.0 kW
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
1 L -> 600.0 rpm
1 ACTUAL SIGNALS
15 POWER
0.0 kW
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
1 L -> 600.0 rpm
1 ACTUAL SIGNALS
01 DC VOLTAGE
1000 V
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
1 L -> 600.0 rpm
2 ACTUAL SIGNALS
05 NP VOLTAGE
1000 V
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
