09 CDP CONTROL PANEL
3BHS799208 E01 REV E ACS5000 WATER-COOLED USER MANUAL 158/186
Note: To prevent accidental switching from remote control to local
control, see “9.2.5.2 Disabling / enabling local lock function” on page 156.
9.3 Operational commands
For instructions on how to start and stop the drive system from the CDP
control panel, see “8.7 Starting the drive” on page 129 and “8.8 Stopping
the drive” on page 133.
9.3.1 Setting the direction of rotation
Setting the direction of rotation from the CDP control panel is possible in:
• Local control mode (L)
• Remote control mode (R)
The arrow on the display indicates the direction of rotation:
• When the motor is running, the arrow indicates the actual direction.
• When the motor is not running, the arrow indicates the preselected
direction.

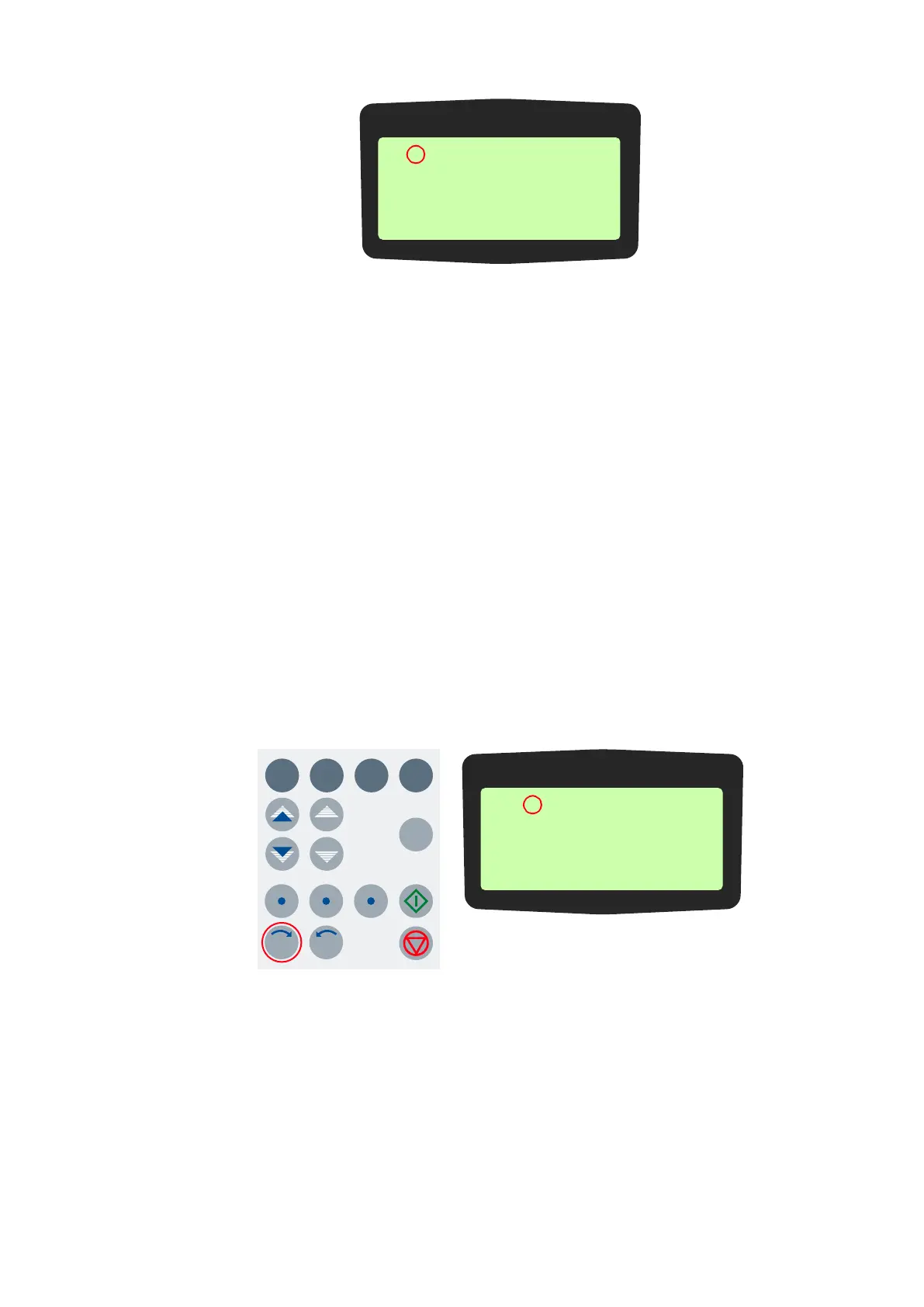

To set the direction of rotation, press the forward or backward key.
1 R 600.0 rpm 0
StateINU ReadyRun
MOTOR SP 0.00 rpm
POWER 0.0 kW
1 L -> 600.0 rpm
StateINU ReadyRun
MOTOR SP 600.00 rpm
POWER 75.0 kW
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
To Next Page
