3BHS799208 E01 REV E ACS5000 WATER-COOLED USER MANUAL 53/186
03 POWER ELECTRONICS AND CABINET FEATURES

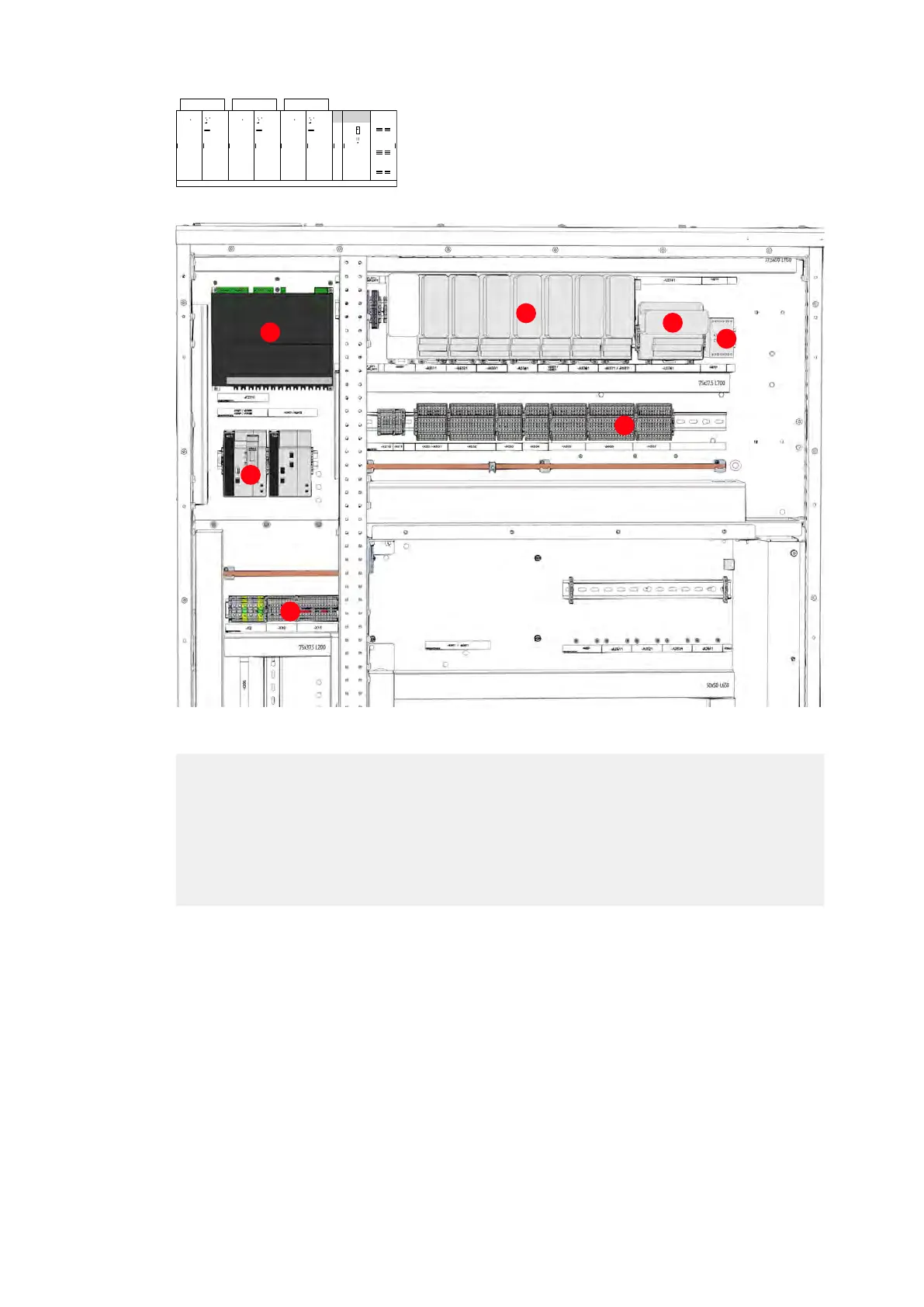

Figure 3-15 COU customer interface section
S800 I/O system
The S800 I/O station with digital and analog I/O interfaces transfers
drive-related hardwired signals to the AMC circuit board.
Standard ABB Advant S800 I/O modules interconnect internal and
external digital and analog I/O signals with the control system of the
drive. The I/O station consists of a bus modem serving as an interface to
the AMC circuit board and the I/O modules. Each I/O module is plugged
into a termination unit that is wired to separate terminals to which the
external signals are connected.
(1) Arc Guard System™
(2) Remote condition monitoring
NETA-21 and fieldbus interface
(3) Customer terminals
(4) S800 I/O process system
(customer- specific configuration)
(5) Grey encoder (optional)
(6) NTAC-02 pulse encoder (optional)
(7) Customer terminals
1
2
3
4
5
6
7
