3BHS799208 E01 REV E ACS5000 WATER-COOLED USER MANUAL 99/186
06 ELECTRICAL INSTALLATION

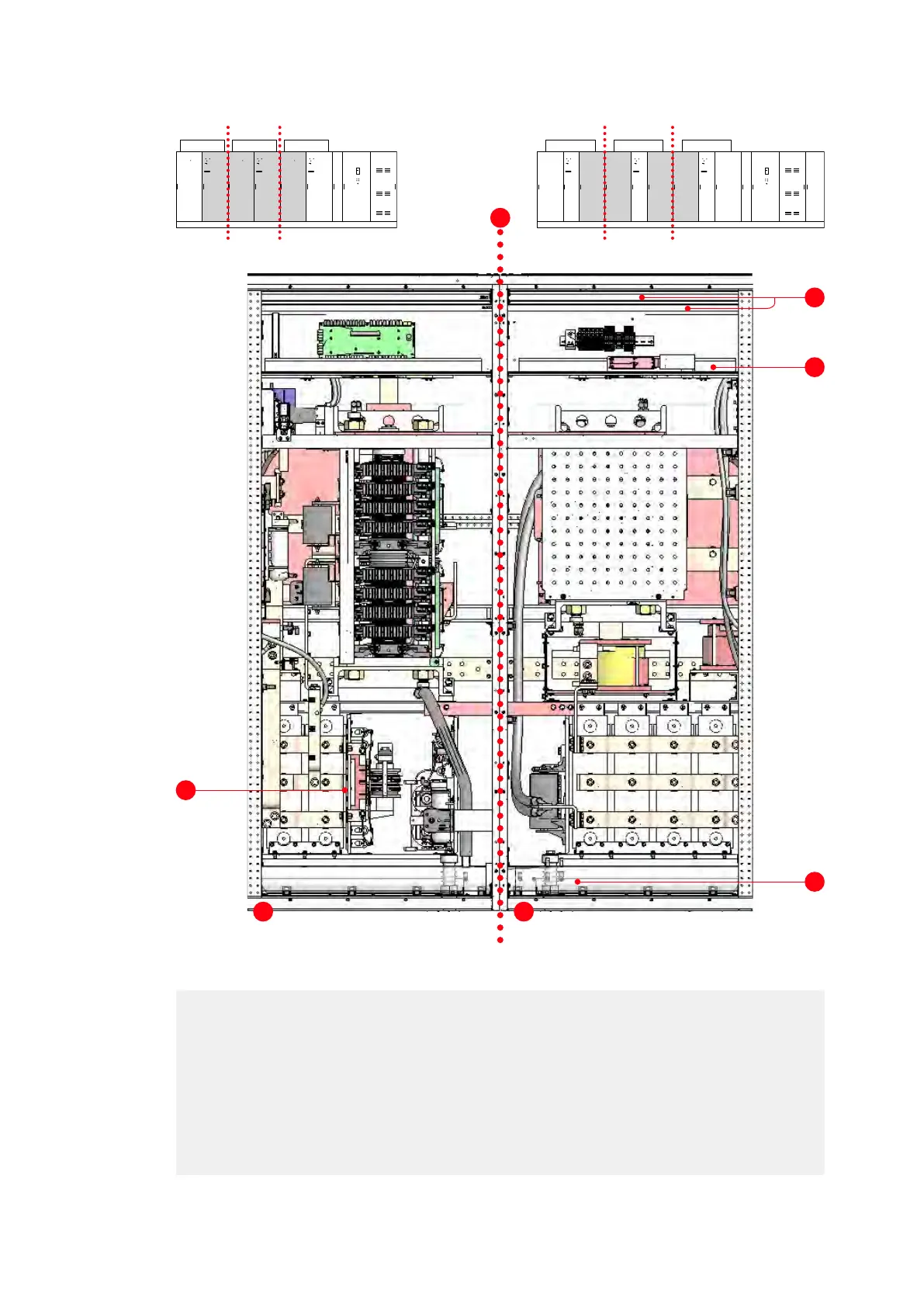

Figure 6-6 Wiring across shipping splits, frame size 1 (A) and 2 (B)
(1) Shipping split PCUx1 – PCUx1
(2) Cable ducts on each side of
the shipping split for:
- Auxiliary power supply cables
- Optical fibers
- Signal cables
(3) Connection point for
charging cable
(4) Charging cable behind water pipe
(not illustrated), laid on the
brackets and connected to
the busbar
(5) PCUx1
1
2
2
3
4
55
AB
