CoreSense Hub option B63
Here is the list of all parameters required to be able to process the calculated values according to the
IEC 60076-7 standard.
—

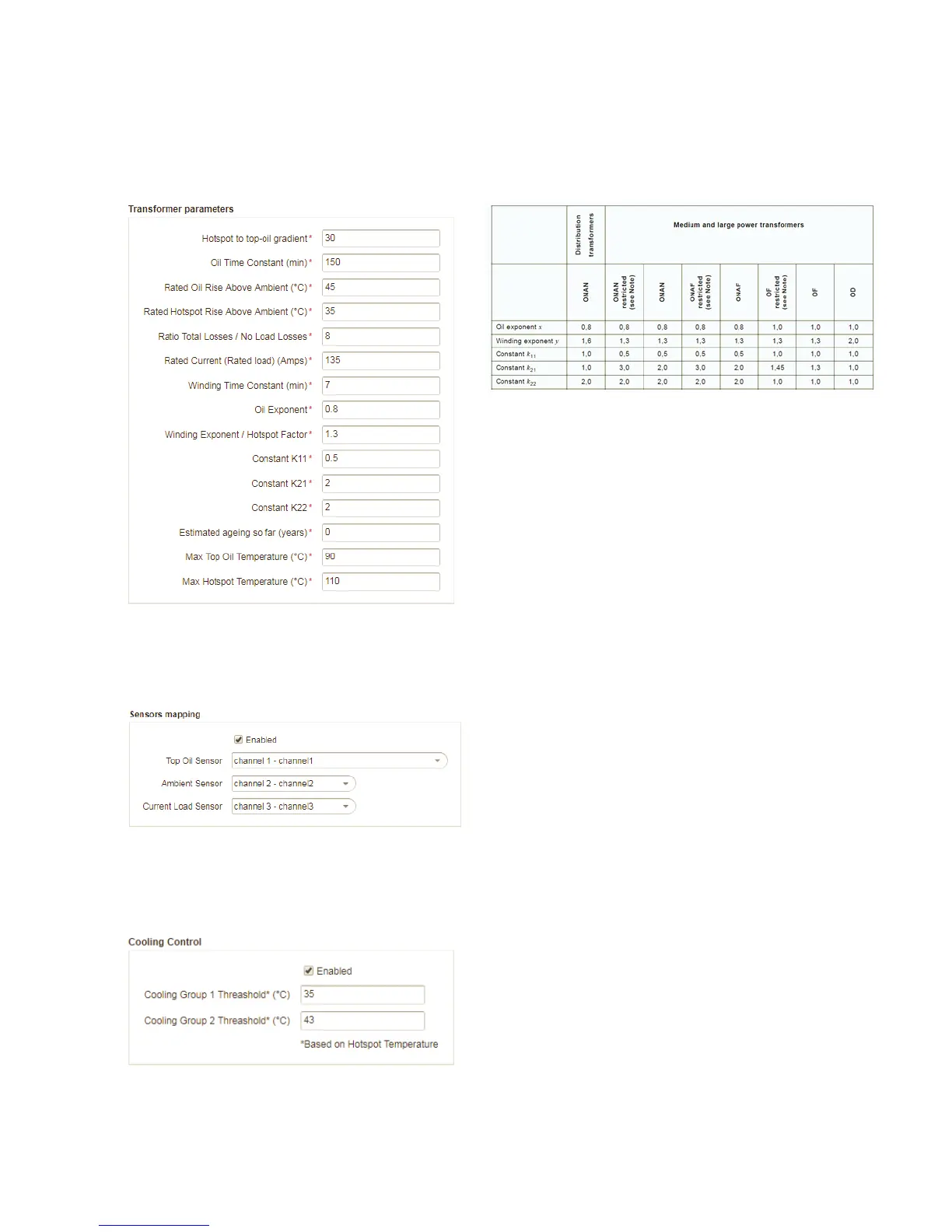

Figure 34 Parameters required to process calculated values according to IEC 60076-7
The sensors mapping section is used to be able to specify which input sensors are representing the
measured values required by the algorithms.
—
Figure 35 Sensor mapping parameters
The cooling control section is where you set the hotspot temperature thresholds from where the cooling
group 1 (Relay 2) and the cooling group 2 (Relay 3) are activated.
—
Figure 36 Sensor mapping parameters
