24 Electrical commissioning
Checking the settings of the auxiliary voltage transformer
(option +G415)
The connections of the auxiliary voltage transformer (T10) are made at the factory. Make
sure that the voltage matches the desired voltage level at the site.
 1-phase power output (option
+G410)
The inverter has a 1-phase power output
available at terminal 0X13 and the service outlet.
• Voltage selection: 100, 115 or 230 V AC
• Maximum power: 2 kVA
 3-phase power output (option
+G429 or +G430)
The inverter has a 3-phase power output for an
auxiliary power transformer when option G429 or
G430 is selected.
• Voltage: Same as inverter output
• Power range: 6...50 kVA
• Supplied fuse 32 A/30 A or 63 A/60 A
(IEC/UL)
• Can be connected only to IT (ungrounded) systems
1

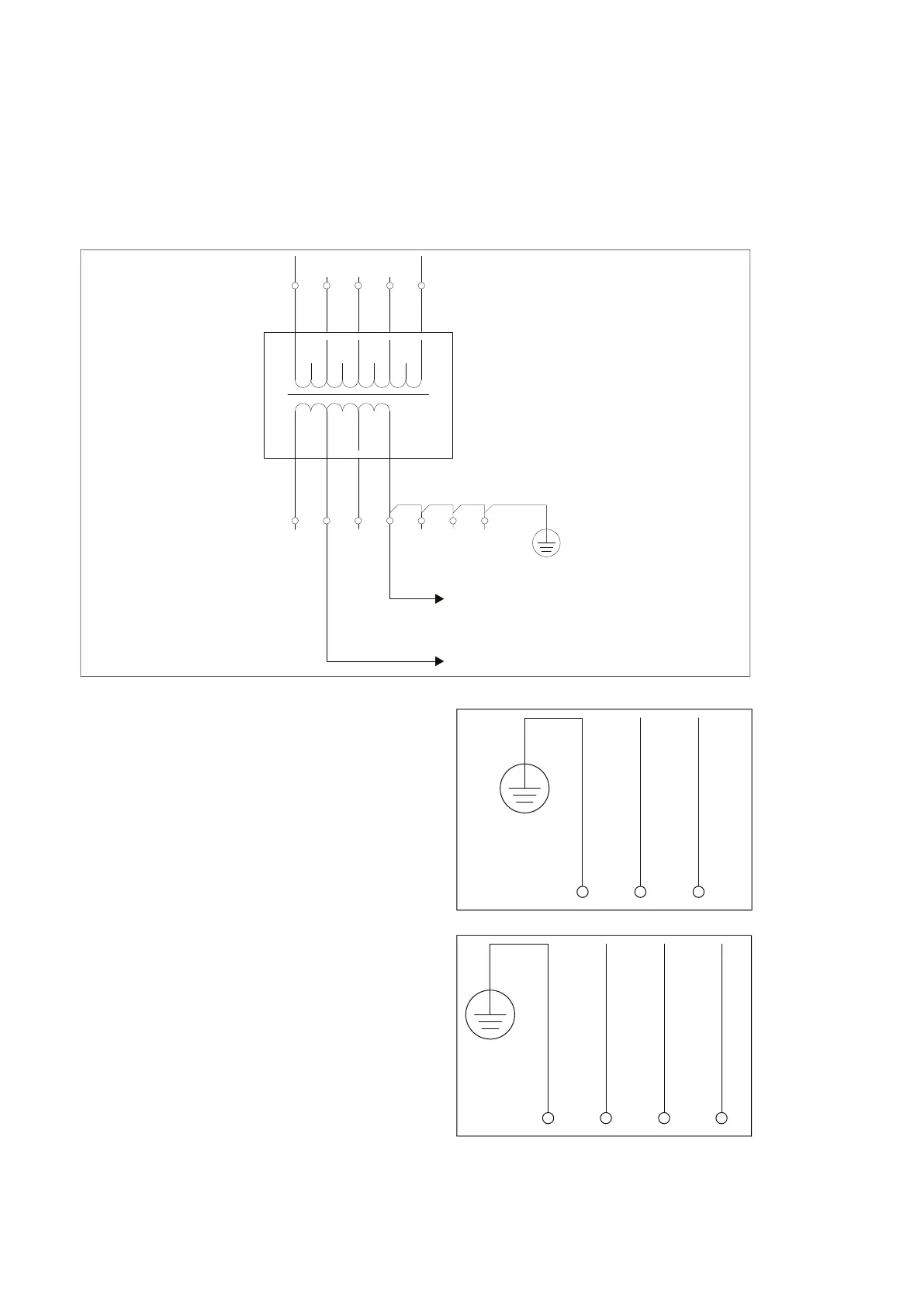

-X10
-X10
-T10
N
L
2
600V
0V
630V 660V 690V
115V
100V 230V
0V
345
67891011PE
-PE
-0X13
PE L N
E
-0X12
PE L1 L2 L3
