ABB IRB 6640 - 180/2.55 User Manual

2 Installation and commissioning
2.5.9. Installation of cooling fan for motors, axes 1 and 2 (option)
853HAC026876-001 Revision: C
© Copyright 2006-2008 ABB. All rights reserved.
2.5.9. Installation of cooling fan for motors, axes 1 and 2 (option)
General
A cooling fan can be installed on the motors of axes 1and 2. However, cooling fans for axes
1 and 2 can not be combined!
The cabling for the fans is available as:
• separate cabling for axis 1 or 2, including only connections for the cooling fans on
axes 1 or 2. Installation of this cabling is detailed in section Installation, separate fan
cabling axis 1 or 2 on page 89.
Location of cooling fans

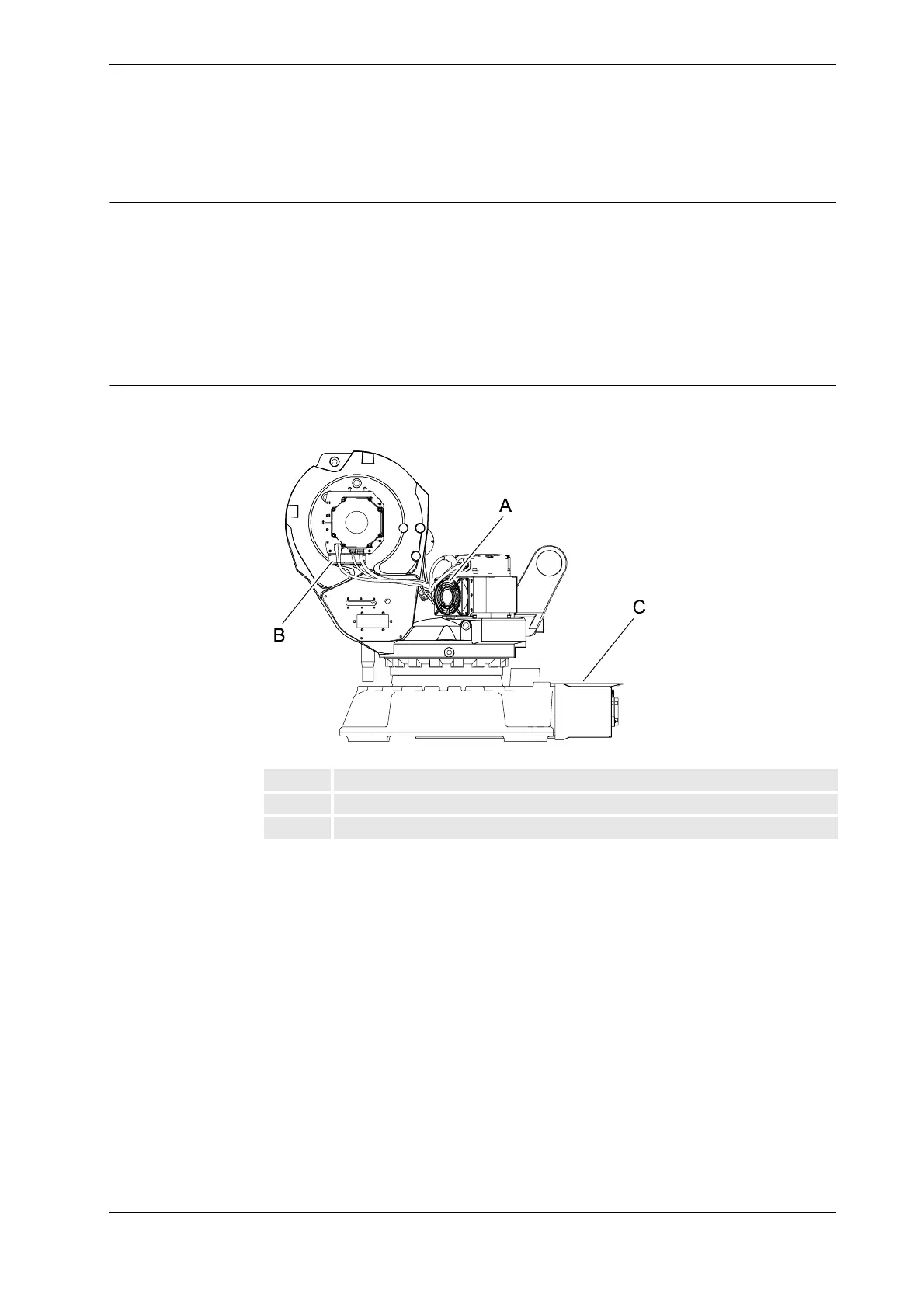

The fans are installed on the motors, axes 1-2, as shown in the figure below.
xx0700000116
A Cooling fan, axis 1
B Cooling fan, axis 2
C Rear cover plate
Continues on next page
