Chapter 4 – Electrical Installation
4-4 NCAN-02 Installation and Start-up Guide
NCAN-02 Connections
Drive Connection The NCAN-02 module is connected to the drive using a fibre optic
cable link. Consult the drive documentation as to the corresponding
terminals inside the drive.

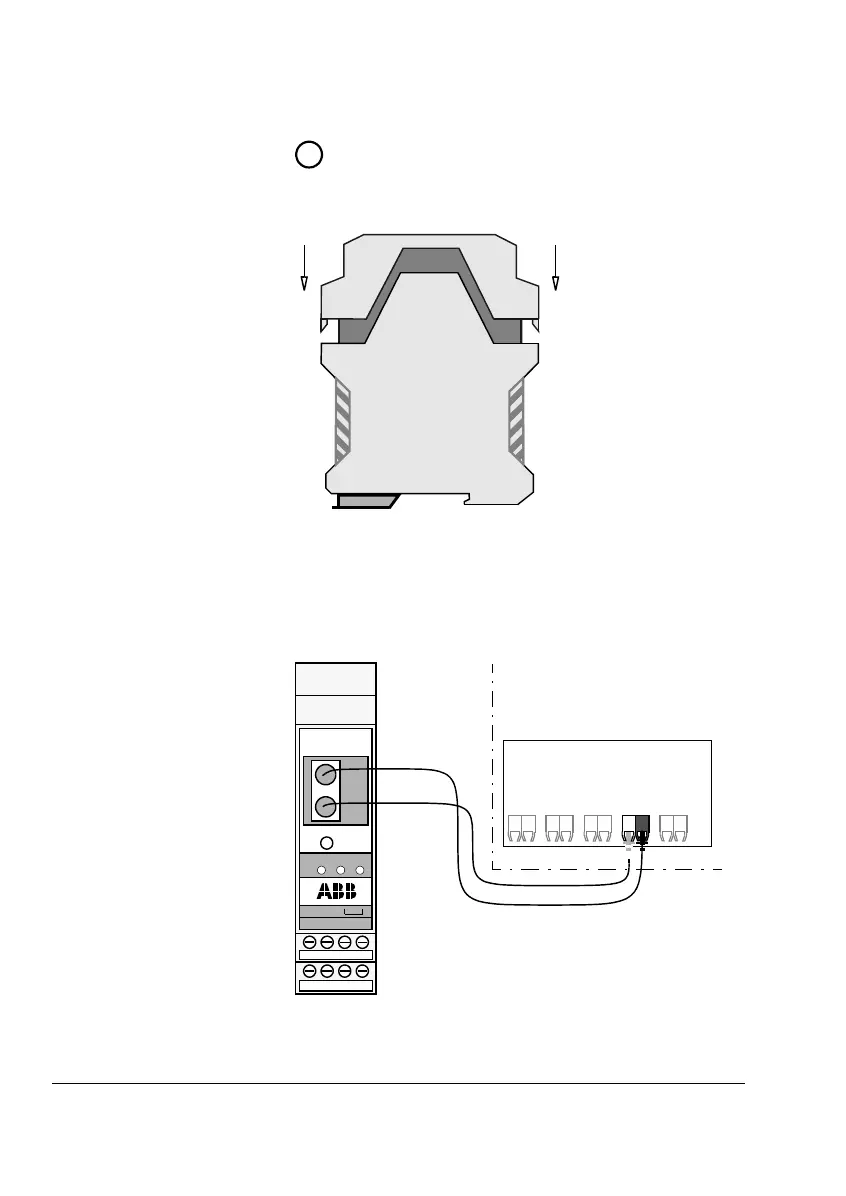

Figure 4-1 Fibre optic link connecting the NCAN-02 to the drive.
Finally, close the module by
sliding the PCB back until the
clips lock into their recesses.
4
NCAN-02
CANopen ADAPTER
MS
0V UC EXT
SHLD CAN_L GND CAN_H
RESET
TXD
RXD
5
678
1234
NS DDCS
ABB drive
RTT
DDCS
X1
X2
