7 - Operation
Web User Interface menu structure
The following screenshots are related from a laptop visualization, may differ from smartphone
or tablet visualization.

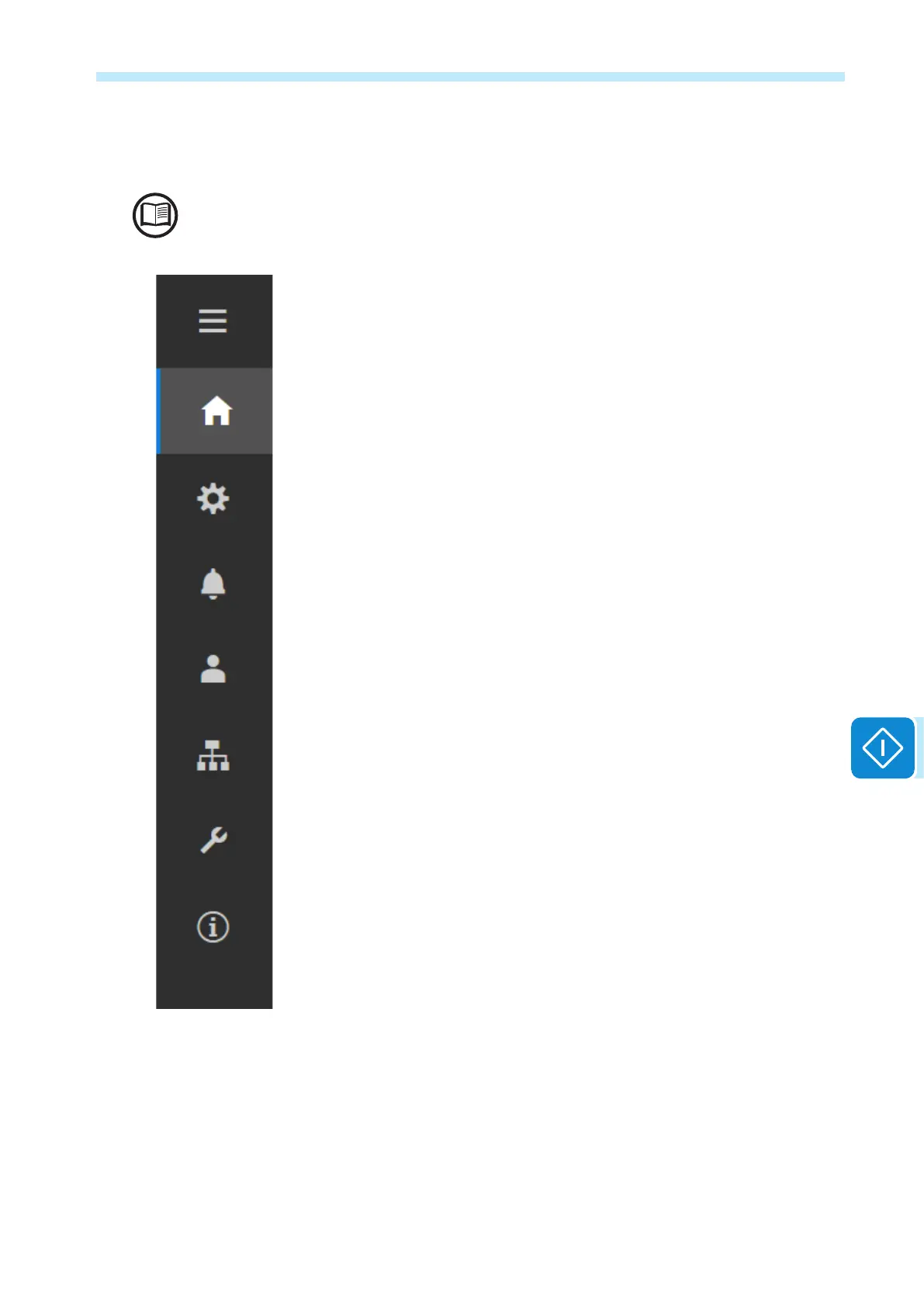

The Web User Interface is divided in six main sections, available on the
left sidebar:
MAIN: Main section of Web User Interface dedicated to viewing the sum-
mary informations related the status and the production informations of
the inverter and photovoltaic plant.
SETTING: Section dedicated to AC and DC line parameters congura-
tions.
INVERTER LOG: Section dedicated to viewing Alarms and Warnings
event log.
USER: Section dedicated to User management.
NETWORK SERVICES: Section dedicated to inverter communication
settings and congurations.
SERVICE TOOLS: Section dedicated to main service tools congura-
tions.
INFORMATION: Section dedicated for general informations about the
embedded Web User Interface.
