ABB PVS-50-TL User Manual

- 51 -
000865AG
4 - Lifting and transport

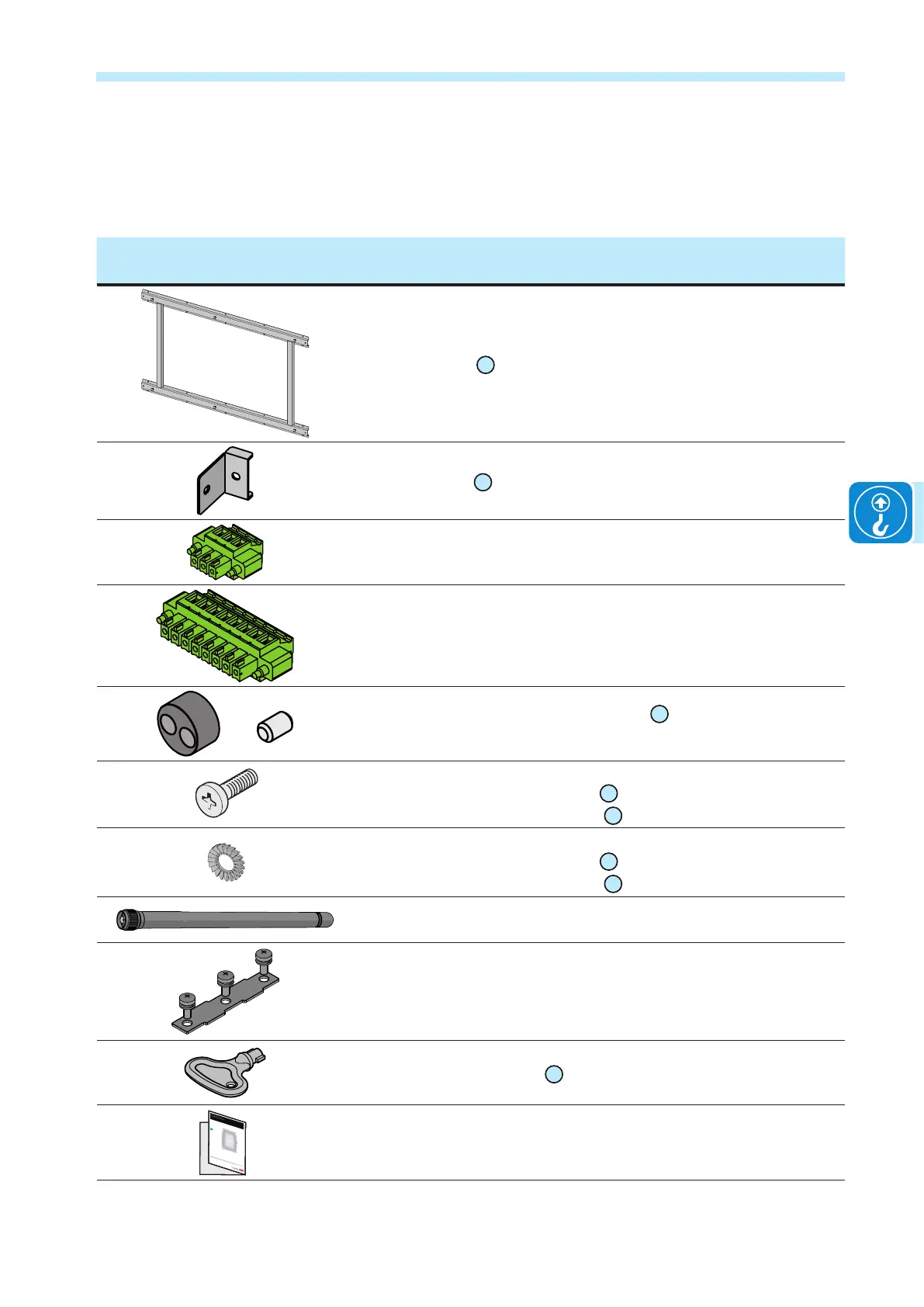

List of components supplied
Supplied with the inverter are all the components required to correctly
install and connect the inverter
Components available for all inverter models Qty
Mounting bracket
01
1
Locking brackets
02
4
Connector for connection of the congurable relay 2
Connector for connecting the communication and con-
trol signals
2
Two-hole gasket for service cable glands
13
PG 21 +
cap
2 + 2
M6 screw for securing the:
- Protective earth terminal (internal)
37
- Protective earth terminal (external)
16
2
M6 toothed washer for securing the:
- Protective earth terminal (internal)
37
- Protective earth terminal (external)
16
4
Wireless antenna 1
Bar for parallel input channels conguration + M5x12
screws (equipped with cut and at washer)
1 + 3
Key for front cover key-lock
08
1
In addition to what is explained in this guide, the safety and installation information provided in the installation manual must be read and followed.
The technical documentation and the interface and management software for the product are available at the website.
