2 - Characteristics
Power reduction due to the input voltage
The reduction of the power supplied where the DC input voltage values
are too high or too low is adjusted automatically.
Vin (V)
Pout (kW)
0
5
10
15
20
25
30
35
45
50
55
60
40
350
400 450 500 550 600 650 700 750 800 850 900 950 1000
Pout PVS-50.0-TL (All Channels Powered)
Pout PVS-50.0-TL (Single Channel Powered)
Pout PVS-60.0-TL (All Channels Powered)
Pout PVS-60.0-TL (Single Channel Powered)
65
70

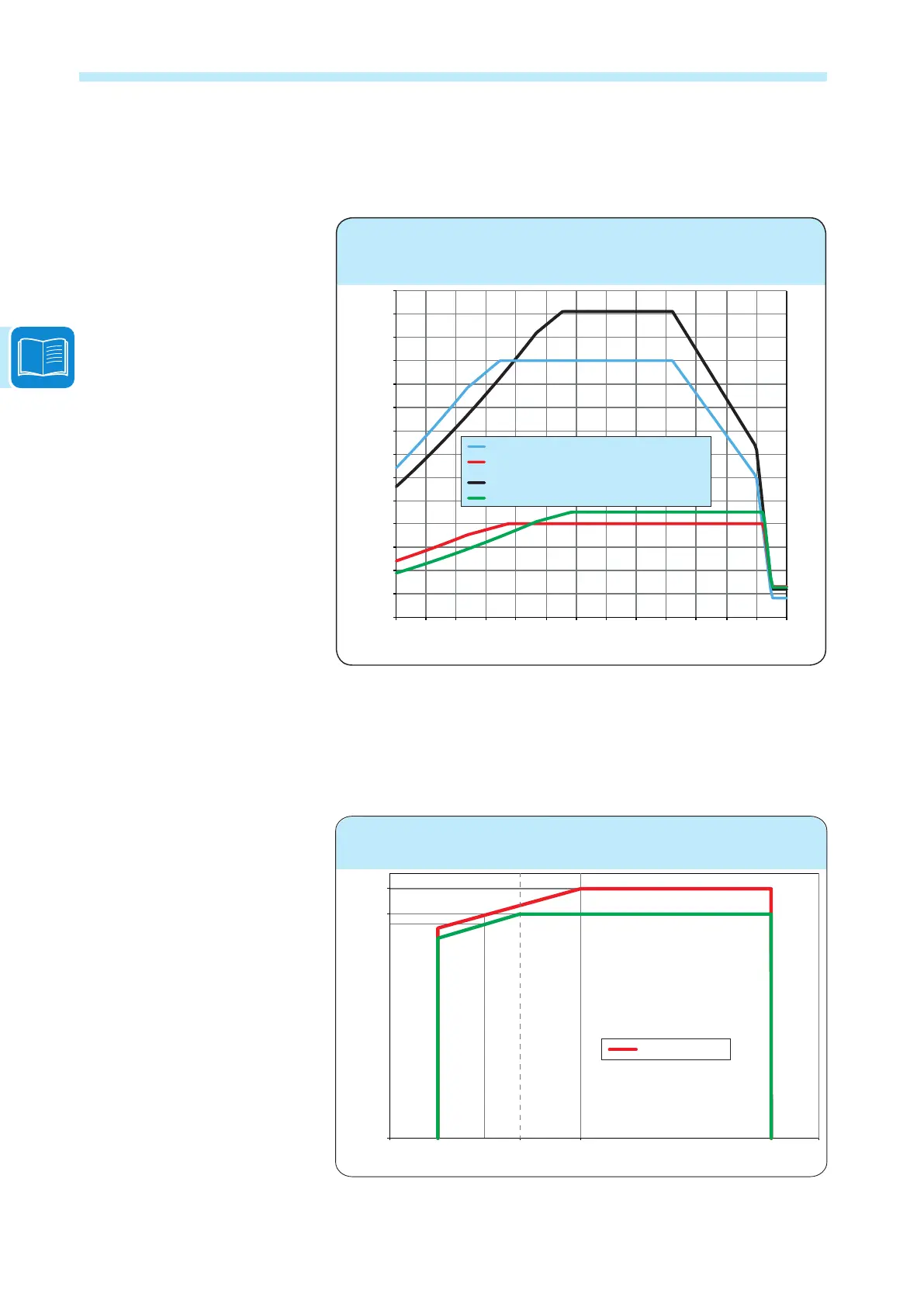

Output power Vs Input voltage
Power reduction due to the grid voltage
The reduction of the power supplied where the grid voltage values are
too high or too low is adjusted automatically.
Grid voltage U/Un (%)
Output power (P/Pn, Q/Qn, S/Sn) (%)
96
100 (Pn)
110 (Pn)
93.7 90 100
U>U<
110 Pn up to 30°C
Output power Vs Grid voltage
The U< and U> values could change based on the grid country standard selection
PVS-50-TL
PVS-60-TL
* The curves on the graph, indi-
cate how “All input powered”, are
valid if the input voltages (of each
input channel) are balanced.
* The curves on the graph are va-
lid with nominal value of grid vol-
tage.
PVS-50-TL
PVS-60-TL
