ABB PVS-50-TL User Manual

- 16 -
000857BG
2 - Characteristics

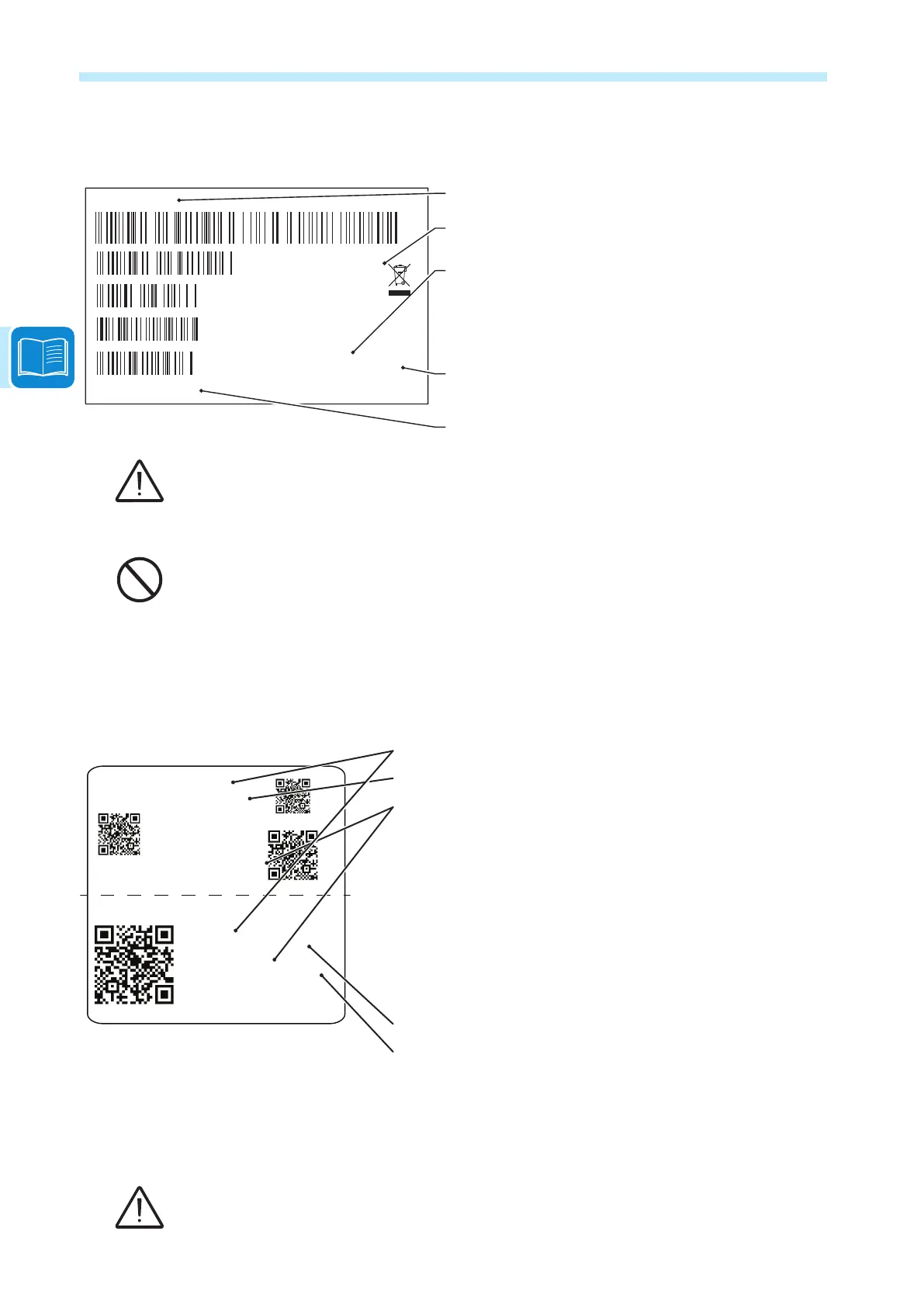

In addition to the label showing the inverter data, there is an additional
identication label for the inverter.
The label displays the following information:
The ofcially required information is located on the approval label. The identication label
is an accessory label which shows the information necessary for the identication and cha-
racterisation of the inverter by ABB.
The labels are NOT to be hidden by foreign objects and parts (rags, boxes, equipment, etc.);
they must be regularly cleaned and always kept in sight.
Communication identification label
An additional Communication Identication label is applied on the wiring
box. The label displays the following information:
The Communication Identication label is divided in two separate parts by a dashed line; take
the bottom part and apply it on the plant documentation. (it’s recommend to create a plant
map and apply the Communication Identication label of each inverters in the right position
of that map).
• Inverter model
• Inverter Part Number
• Inverter Serial Number consisting of:
- YY = Year of manufacture
- WW = Week of manufacture
- SSSSSS = sequential number
• Week/Year of manufacture
• Manufacturer
MODEL NAME
POWER-ONE ITALY S.p.A
Via S.Giorgio 642, Terranuova Bracciolini (AR), 52028, Italia
P/N:PPPPPPPPPPP
WO:XXXXXXX
SO:SXXXXXXXX Q1
SN:YYWWSSSSSS WK:WWYY
SN WLAN: SSSSSSSSSS
PN WLAN: PPP.PPPPP.PP
Mac Address:
XX:XX:XX:XX:XX:XX
SN WLAN: SSSSSSSSSS
SN Inverter: SSSSSSSSSS
MAC: XX:XX:XX:XX:XX:XX
PK: KKKK-KKKK-KKKK-KKKK
Remove and apply on the Quick installaon guide
• WLAN board Serial Number
• WLAN board Part Number
• Inverter Serial Number
• MAC address:
- To be used to obtain the SSID of the wireless access point
created by the inverter: ABB-XX-XX-XX-XX-XX-XX
(where “X” is a hex digit of the MAC address).
- To be used to obtain the “Host Name”:
http://ABB-XX-XX-XX-XX-XX-XX.local
(where “X” is a hex digit of the MAC address).
- MAC address it’s the only required information to register the
inverter with Aurora Vision.
• Product Key:
To be used as wireless access point password, or to be used to
access to the Web UI as username and password in case of lost
credentials, and to commission inverter using ABB Installer for
Solar Inverters.
