2 - Characteristics
Efficiency curves
The equipment was designed considering current energy conservation
standards, to avoid waste and unnecessary leakage.

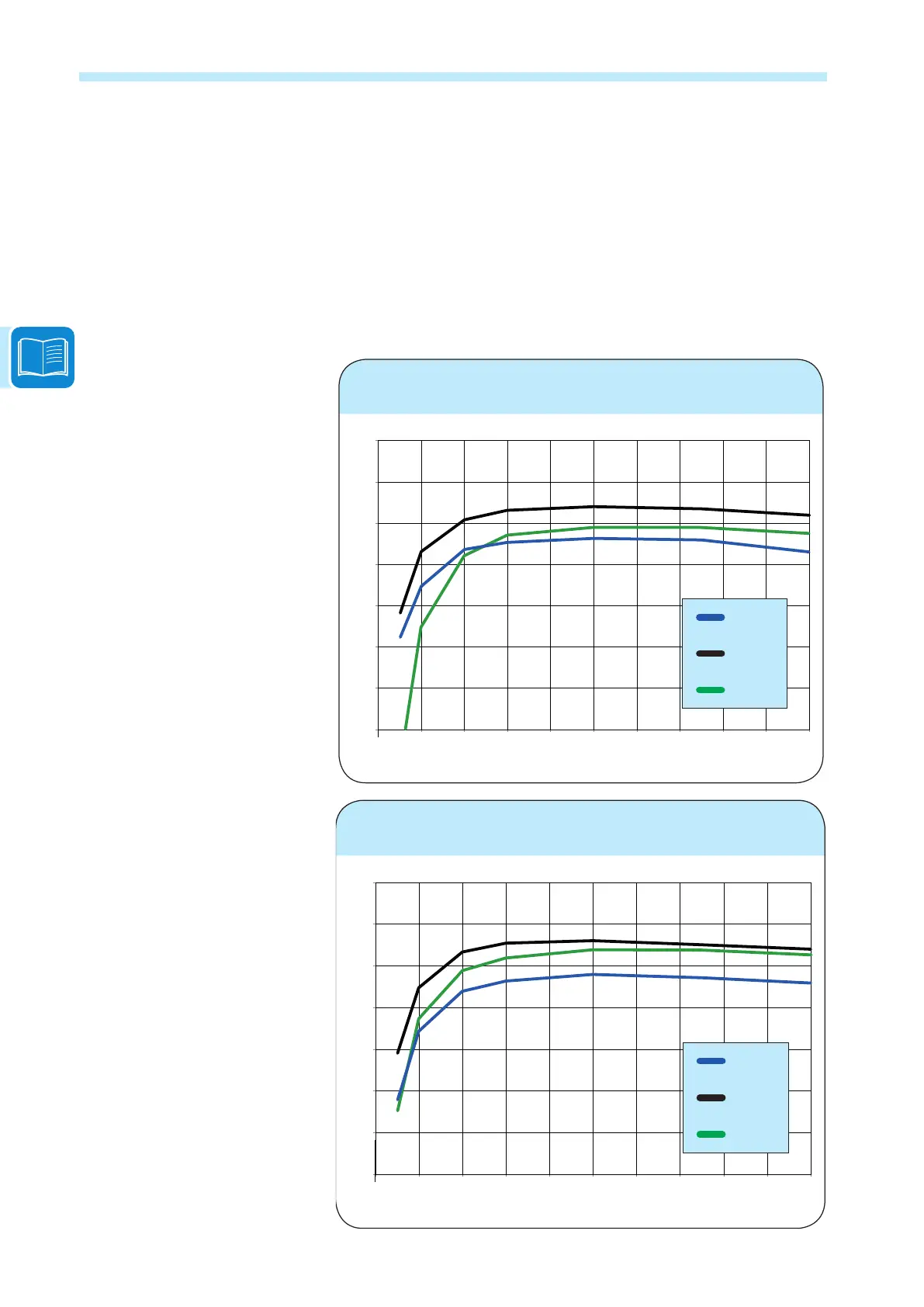

Graphs of the efciency curves of all models of inverter described in this
manual are shown below.
The efciency curves are linked to technical parameters that are continually being developed
and improved and should therefore be considered approximate.
93
94
95
96
97
98
99
100
0% 10% 20% 30% 50% 70% 100%
Efficiency [%]
80% 90%60%40%
% of rated Output Power
480Vdc
610Vdc
800Vdc
Efciency curves
PVS-50-TL
PVS-60-TL
93
94
95
96
97
98
99
100
0% 10% 20% 30% 50% 70% 100%
Efficiency [%]
80% 90%60%40%
% of rated Output Power
570Vdc
720Vdc
800Vdc
Efciency curves
