ABB PVS-50-TL User Manual

- 79 -
000872BG
5 - Installation

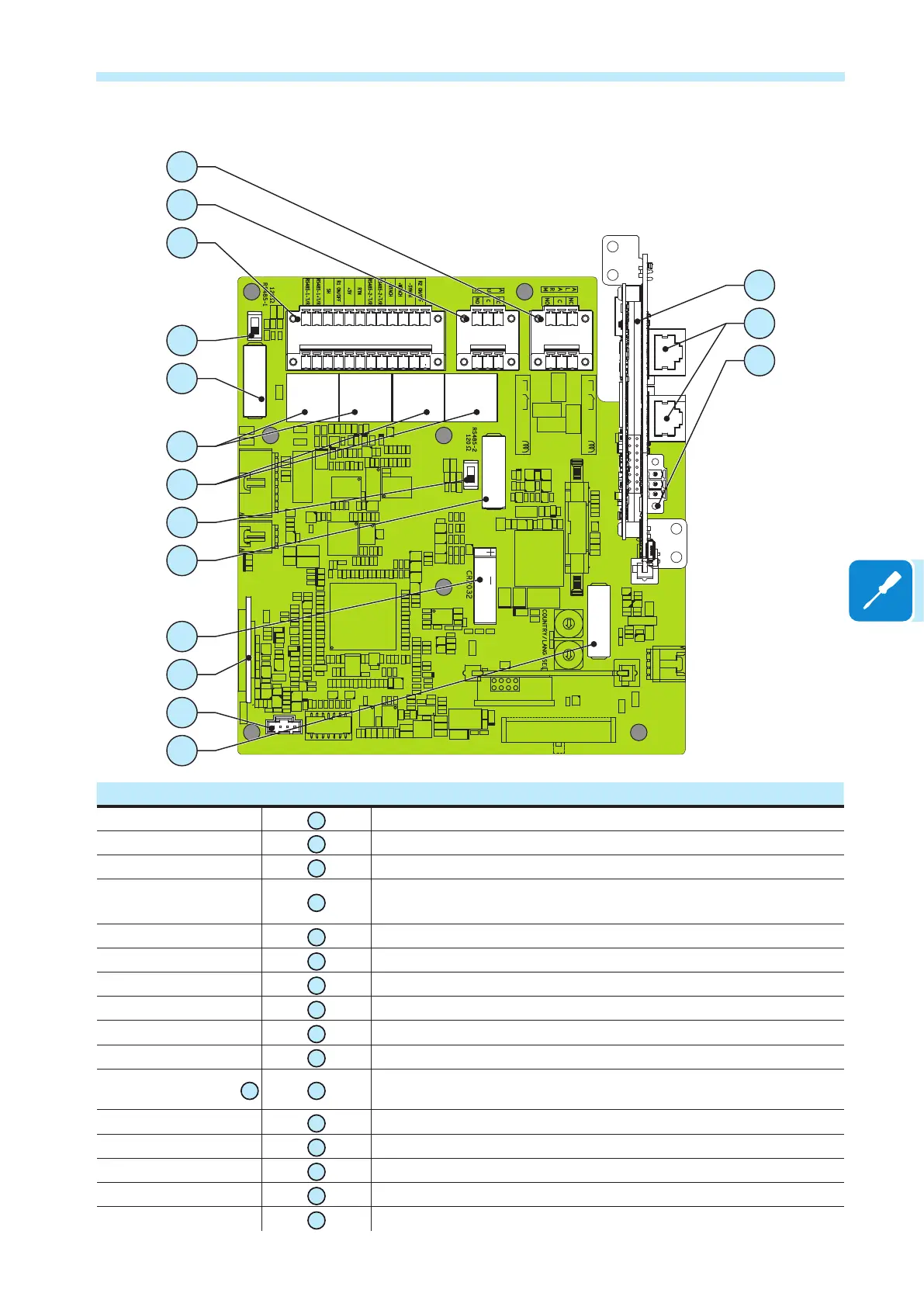

Communication and control board
J1
J8
X5
J9 J10 J11 J12
J16
51
50
60
52
53
54
55
58
59
61
62
63
64
56
57
65
A5
J14J13
S6
J20
J17
J21
J7
J2
S5
J5
J24
K5
S9
S8
T5
J27
J6
J19
J22
K6
J25
J3
8
9
0
5
6
7
NCCOM
NO
NC
COM
NO
1
2
3
4
1
2
3
4
8
9
0
5
6
7
OFFON
PC2
OFFON
PC1
Silkscreen Reference Symbol
50
Interposer board
J6
51
ALARM (multifunction relay) terminal block
J5
52
AUX (multifunction relay) terminal block
J7
53
RS485-1 and RS485-2 lines, R1 ON/OFF and R2 ON/OFF (remote ON/
OFF) and 5V auxiliary lines terminal block
S6
54
RS485-1 line 120Ohm termination resistor switch
J8
55
RS485-1 communication card housing
J9, J10
56
RS485-1 line connection on RJ45 connector
J11, J12
57
RS485-2 line connection on RJ45 connector
S5
58
RS485-2 line 120Ohm termination resistor switch
J16
59
RS485-2 communication card housing
J5 on interposer board
50 60
RS485-MAIN terminal block
X5
61
Battery housing
A5
62
SD card housing
J1
63
Grounding kit connector (optional kit)
J22
64
Inverter data memory card housing
65
Ethernet connector
