ABB REF 54 Series Technical Reference Manual, General

1MRS750527-MUM
REF 54_
29
Feeder Terminal
Technical Reference Manual, General
A050238

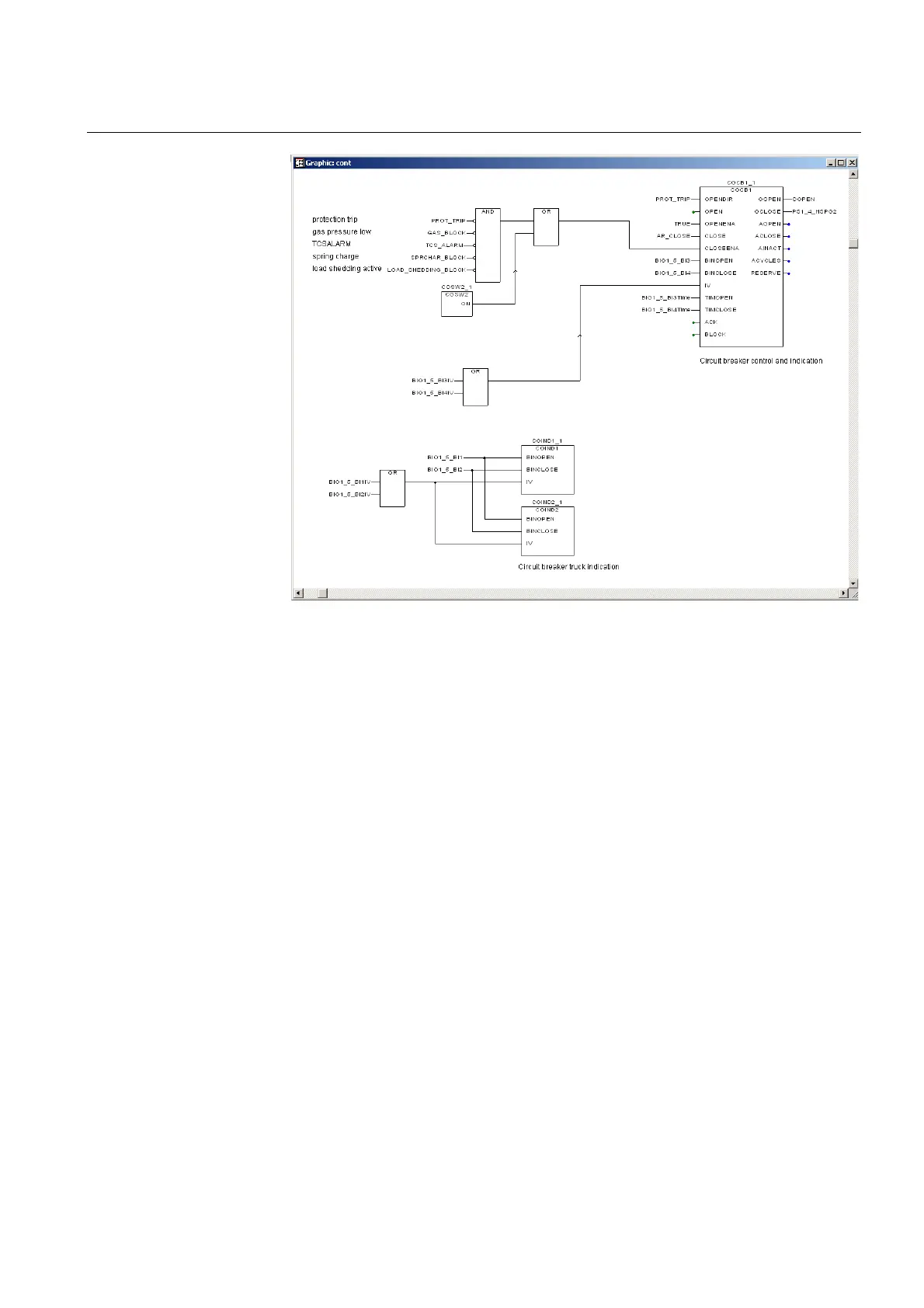

Fig. 5.1.2.1.-1 Example of a feeder terminal configuration with the Relay
Configuration Tool
5.1.2.2. MIMIC configuration
The control functions configured using the Relay Configuration Tool can be
associated with position indicators that are part of the MIMIC configuration picture
displayed on the graphic LCD of the HMI. The MIMIC configuration picture is
designed with the Relay Mimic Editor. In addition, the editor is used to define the
eight programmable LED indicators and the corresponding alarm texts on the front
panel, the alarm modes, and the interlocking LED texts.
The MIMIC picture may include a single-line diagram, measured values with units,
free texts, and so on. The position indicators (open, closed, undefined) are drawn
according to the customer's requirements. Note that the operation of the objects
themselves is determined by means of the Relay Configuration Tool.
