The HMI has two main levels, the user level and the technical level. The user level
is for “everyday” measurements and monitoring whereas the technical level is
intended for advanced feeder terminal programming.
A050466

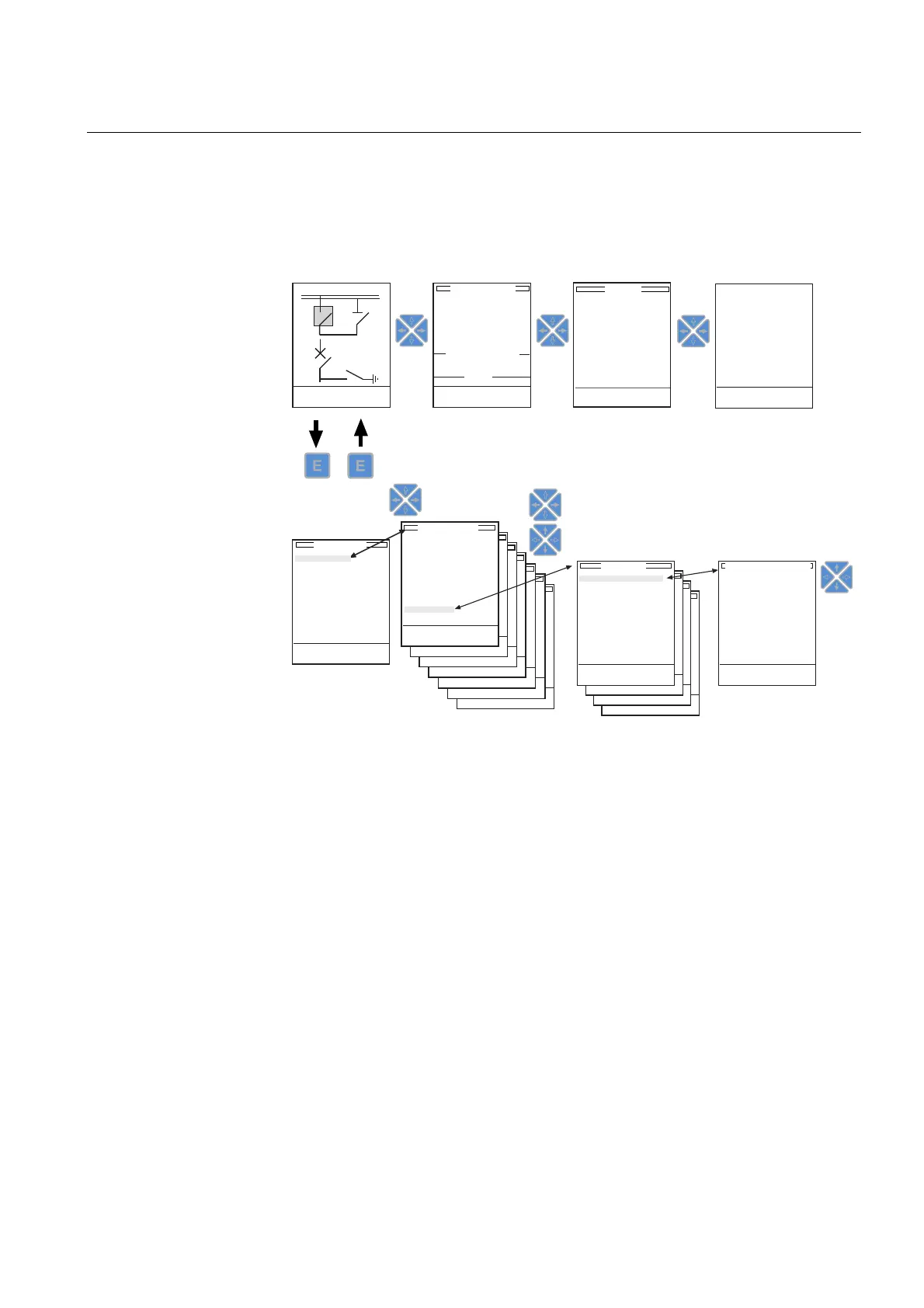

Fig. 5.1.15.-2 Menu level structure
For more detailed information about the HMI, refer to the RE_ 54_ Operator’s
Manual.
5.1.16. Alarm LED indicators
The REF 54_ feeder terminal offers eight alarm LED indicators to be configured
with the Relay Mimic Editor. The LED colors are green, yellow or red, and their use
can be freely defined (for defining the ON and OFF state texts,
refer to Section
“MIMIC configuration” on page 29). Three basic operation modes are supported:
• Non-latched light
• Latched-steady light
• Latched blinking light
Alarms can be acknowledged remotely, locally or by using logic.
The alarm channels include time tagging for detected alarms. The time tagging
principle used depends on the operation mode.
21 kV
CBOK
IL1-A 00250.0
IL2-A 00252.0
IL3-A 00249.0
Io-A 00000.0
Iob-A 00000.0
Uo-V 000000
U1-kV 020.00
U2-kV 020.00
U3-kV 020.00
f-Hz 50.00
Demand values
IL1-A 00248.0
IL2-A 00251.0
IL3-A 00250.0
Power
P-kW 006928
Setting group 1
EVENT view
ALARM view
USER LEVEL (LEVEL 1)
TECHNICAL LEVEL (LEVEL 2)
MIMIC view MEASUREMENT view
CB spring ready
SF6 gas density
Temperature
Interlocking
PARAMETER MENU
GROUP MENU
MAIN MENU
2 Sec
1 Sec
Protection
NOC3Low
SUBGROUP MENU
Operation mode
= Definite time
Start current
= 3.1 x In
Operate time
= 041.03 s
Time multiplier
= 0.78
IEEE time dial
= 0.5
Actual setting
Setting group 1
Setting group 2
Control setting
Input data
Output data
Recorded data 1
Recorded data 2
Recorded data 3
CUB3Low_a
DEF2Low_a
DEF2High_a
DEF2Inst_a
Freq1_a
Freq2_a
Freq3_a
Freq4_a
Freq5_a
Inrush3_a
NEF1Low_a
NEF1High_a
NEF1Inst_a
NOC3Low_a
NOC3High_a
NOC3Inst_a
Updating values
¬ MIMIC EVENT®
MIMIC view
¬ ALARM MEAS®
MEASUREMENT
EVENTS
NOC3Low 31/E1
2005-03-24
18:35:12.230
NOC3Low 31/E1
2005-03-24
18:35:12.330
NOC3High 32/E1
2005-03-24
14:25:52.720
NOC3High 32/E3
2005-03-24
14:25:52.760
Selection mode E
¬ MIMIC EVENT®
C clears ALARMs
¬ EVENT MIMIC®
á , â Move cursor
E MIMIC Submenu
®
Status
Protection
Control
Cond.monit.
Measurement
Communication
General func.
Tests
Information
Configuration
MAIN MENU
á , â Move cursor
¬MainMenu Next®
á , â Move cursor
¬Prev. Param.®
á , â Move cursor
¬Prev. E set
