Section 2 Product Description Mounting Equipment
3BSE015969-600 A 99
Mounting Equipment
Mounting Kit for CI801/CI840/CI840A/TB840/TB840A
The Mounting Kit is used for horizontal mounting of CI801/CI840/CI840A and
TB840/TB840A on a vertical DIN-rail. This enables the higher range of the ambient
temperature for CI801/CI840/CI840A and TB840/TB840A.
Apart from MTUs for CI840, TB840 can also be ModuleBus cable adapters
mounted on the Mounting Kit.

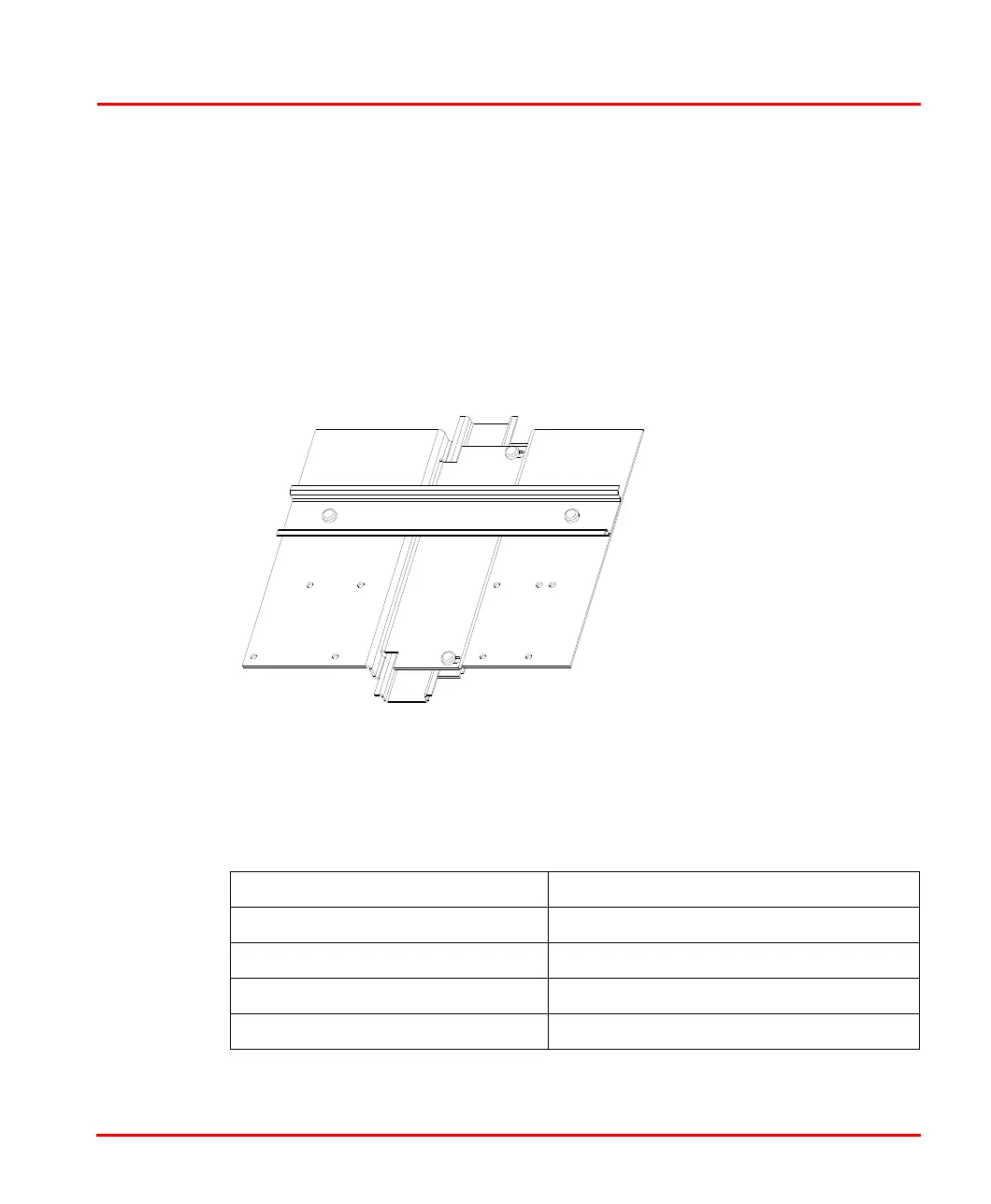

Figure 46. Mounting Kit for CI801/CI840/CI840A/TB840/TB840A
Table 10. Mounting Kit Dimensions
Item Value
Width 200 mm (7.87”)
Depth 170 mm (6.69”)
Height 17 mm (0.67”)
Weight 0.5 kg (1.10 lbs.)

ABB S800 Specifications

General

Manufacturer	ABB
Mounting	DIN Rail
Power Supply	24 V DC
Protection Class	IP20
Certifications	CE, UL, ATEX
Number of Channels	Varies depending on module type
Model	S800
Communication Protocols	Profibus DP, Modbus
Redundancy	Yes (depending on module and communication interface)
