Emax E1.2 circuit-breakers | 4 - Description
Continued from the previous page
7. Check that the circuit-breaker is open (open / closed indicator "O - OPEN"), and check that the springs
are discharged (spring signalling device "white - DISCHARGED SPRING") as indicated in Figure 24.

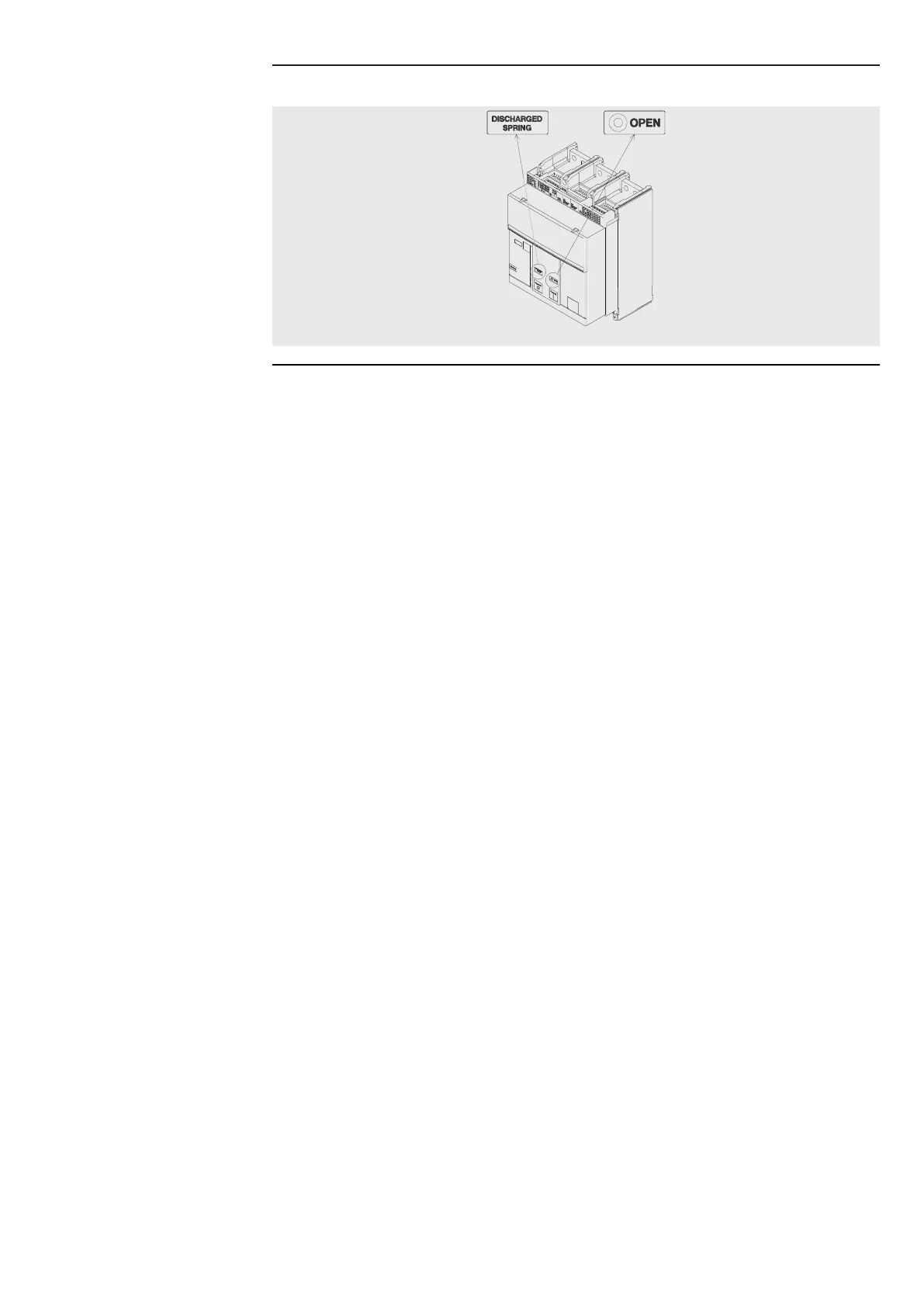

Figure 24

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
