7. Scope of Supply
Note : The disconnector is supplied in components
7.1 Disconnector
The scope of supply does not include the fixing materials for mounting the disconnector on the
supporting structures.
The components supplied comprises :
l Disconnector base (2) consisting of : Sectional-steel base frame (221), rotary pedestals (70),
diagonal rod (68), disconnector operating lever (69), connecting lever (3) and transportation
angle (328) Figure 13
l Support insulators (201)
l Current-path half, contact side (5)
l Current-path half, finger side (6)
l Operating mechanism for disconnector (75)
l Operating rod (37)
l Operating lever (74) with clamping cover (334)
l Coupling rods (15)
l If operating mechanism mounted separately : Vertical operating shaft (43) and pivot bearing (42)
Figure 21
l If operating mechanism with lateral offset : Operating rod (83) Figure 25
l Small parts
A
A
A

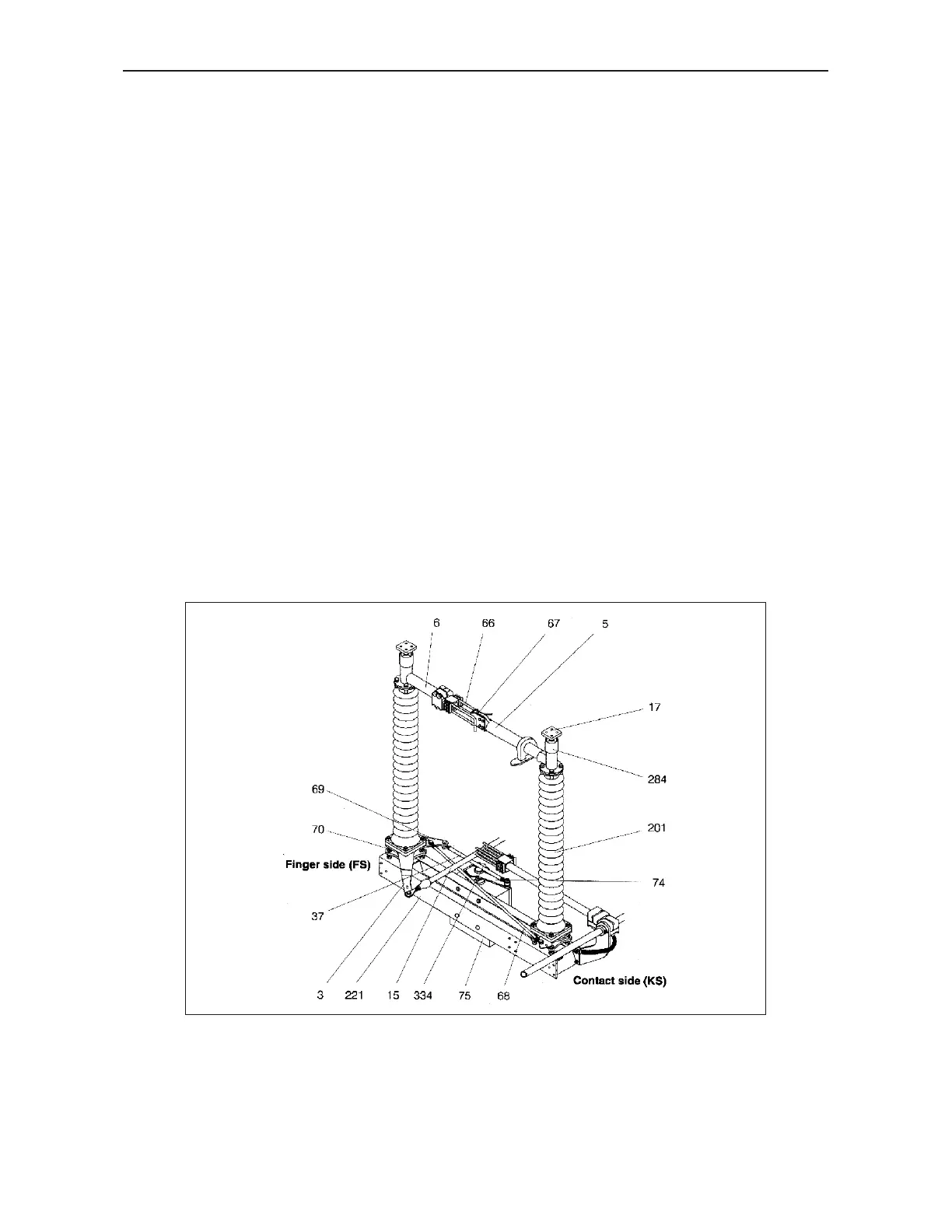

Figure 10 : Scope of supply, disconnector
11/113
1HDB 050016-YN-A
