Instructions for Assembling Adapter Plate
(Reference : Service Instruction Manual GPDT 069622a E, Fig:14, Page : 18)
1) Remove adapter, which is assembled with rotating flange (70) on the frame assembly(221)
2) Remove fasteners from the adapter plate supplied.
3) Insert M16 screw (discard M16 nuts supplied) along with washers into adopter plate hole and
engage in the hole of bottom flange of insulator as shown in Fig : 1
4) Tighten all screws with torque of 174Nm.
5) Mount insulator on rotary pedestal as shown in Service Instruction Manual.

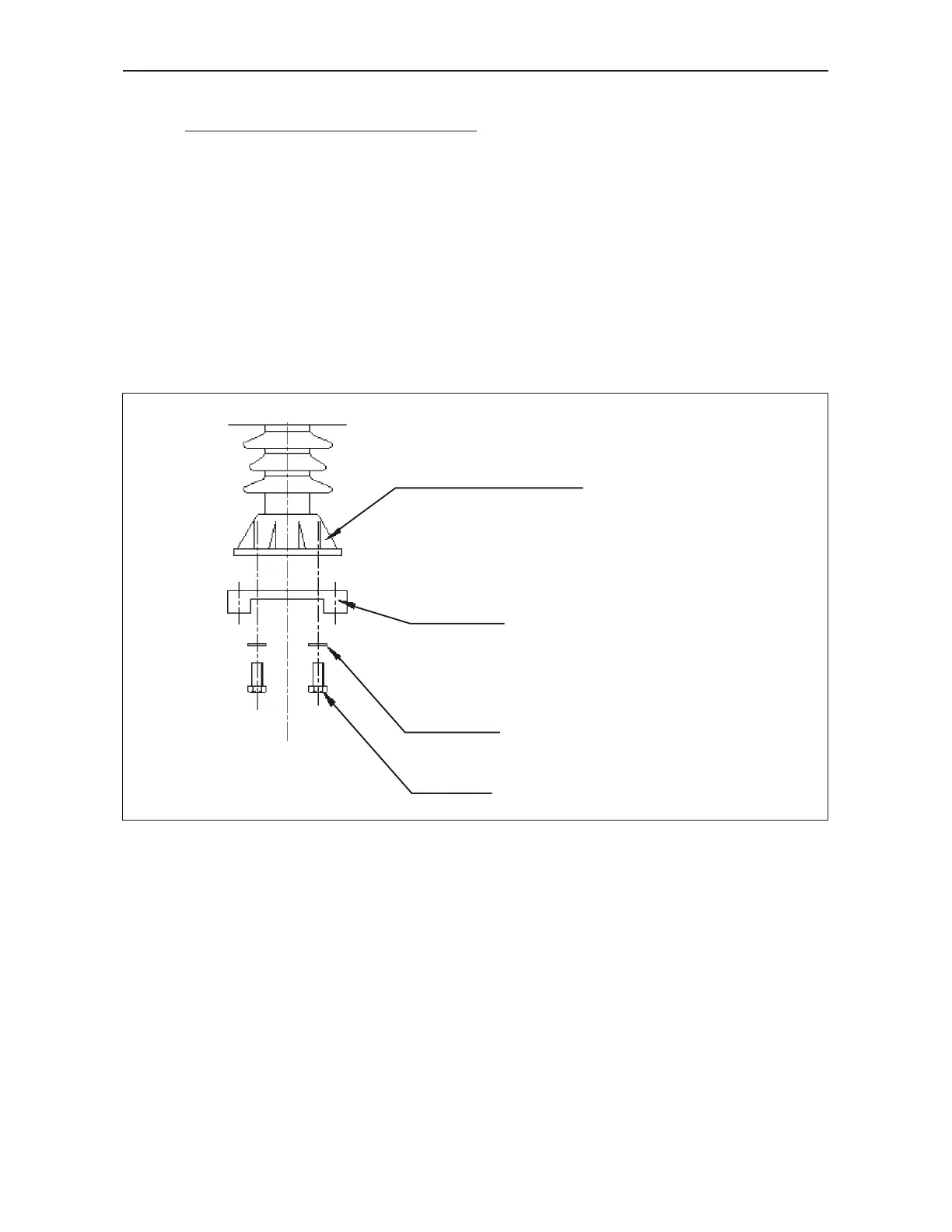

Fig. : 71 : Instruction for Assembly of Adapter Plate
Bottom flange of Insulator
Adapter Plate
(Article No. : 1HYN 450114 P1)
Plain washer
M16 Screw
or 1HYD 300022 P1
88/113
1HDB 050016-YN-A
